Product Details
Place of Origin: | China | Brand Name: | MFW | Model Number: | MW-150 |
Output Power: | Other, 150W | Output Type: | Single | Size: | 85*65*38MM |
Weight: | 0.2 | Input Voltage: | 12V | Output Voltage: | 220V |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | 5A/10A |
Product Description

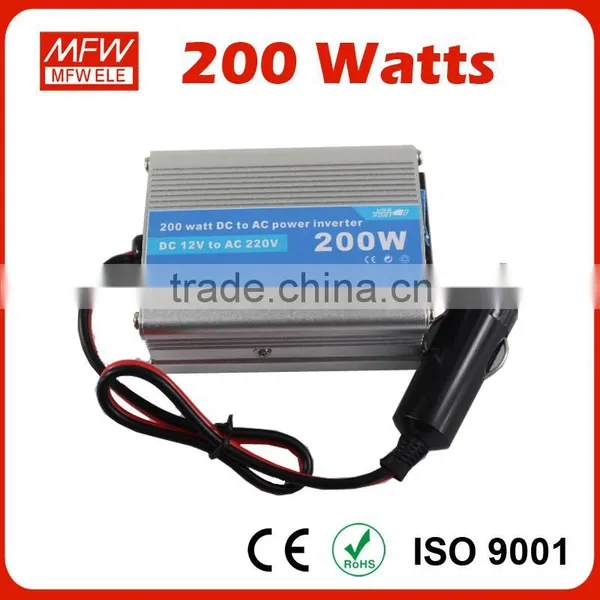

48vdc to 220vac micro inverter 250w 200w 350w 500w with USB5v port
Description:
Product name: Power Inverters
Rated power: 150W
Peak power: 300W
Iutput voltage: DC 12V / 24V
Output voltage: AC 110V / 220V
DC to AC
Applications:
Ideally suitable for Journeys, Camping, Tents, Boat Trip, Working on the way and everywhere, where is no electricity ! Simply connect with 12v/24v Battery as in a Car, Motorcycle, Camper or Boat and use 110v/ 220v electrical appliances.
1. It is well suitable for supplying power for your notebook, digital camera, video camera, Car, Journeys, Camping, Tents, Boat Trip, Solar panel and other appliances when you travel on the vehicle, camp, boat and other outside activities.
2. It can also be widely used in the districts with unstable power or supplied power by solar or wind energy sources.
3. Besides, it supplies a stable power for household appliances, such as TV, computer, DVD, VCD, satellite receiver, printer, fluorescent lamp, cooler, stereo, fan, electric drill, drill press, lighting, motor, game player, etc.
4. Working everywhere, even where has no electricity! You just need to simply connect the 12v/24v Battery in a Car or a Motorcycle. the 110v/ 220v battery in a camp or a boat, our products power inverter will work regularly.
solar inverter specifications
1. 50hz/60hz
2.Used in home,car/camping/party
3.CE Certificates
4.12v/24v to 110v/220v
5, Integrate inverter with solar controller
6, four poles, two connect with battery and two connect with solar panel
Model | PW-150 | |
Rated Power | 150 W | |
peak Power | 300 W | |
DC input voltage | 12V | |
AC output voltage | 110VAC / 220VAC | |
AC output frequency | 50Hz/60HZ | |
AC output waveform | Modified Sine Wave | |
Waveform Distortion | THD<2%(Linear load) | |
Efficiency | ≥90.5% | |
No Load Current | ≤0.3A |
|
Fuse | 12V:2×20A / 24V:2×15A |
|
DC input voltage range | 10V-15V or 20V-30V | |
Low Voltage Alarm | 11V+/-0.5V or 21+/-0.5V | |
Low Voltage Shutdown | 10V+/-0.5V or 20V+/-0.5V | |
Over Voltage Protection | 15.5+/-0.5V | |
Low Voltage Recovery | 12+/-0.5V or 24+/-0.5V | |
Over Voltage Recovery | 15V+/-0.5V or 29V+/-0.5V | |

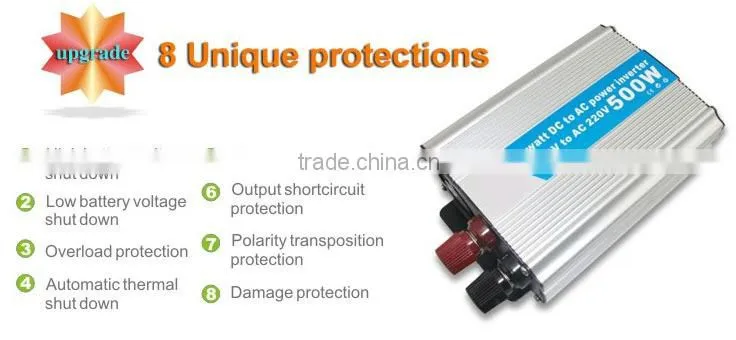

Protective Function | Low/Over voltage: LED Red light, automatic recovery | |
Over load: LED ,Red light ; automatic recovery | ||
Over temperature : LED ,Red light,;automatic recovery | ||
Short circuit: LED ,Red light; automatic recovery | ||
Working Temp. | –10°C—+60°C | |
Dimension | 85*65*38MM | |
Gross Weight | 0.28KGS | |
Color | Silver ,black | |
Plug type | Worldwide | |
Warranty | 12 months |
1. How to choose the right inverter?
A: You choose the inverter according to the rated power of electrical appliance, in general, the actual power of inverter is lower than the rated power, so you should choose the higher power than the rated power marked in the appliance. The efficiency of our inverter is higher than 93%, you can calculate the power by this formula:
Rated power=rated current×rated voltage
Actual power=Rated power×efficiency
2. How to choose the right battery?
A: battery capacity=rated power/input voltage×working time
Such as: A12v to 220v inverter need work 2 hours, the battery capacity should be:
1000w/12v×2 hours=167AH
The voltage of battery should be as the same as the inverter’s. that means the 12v to 220v inverter should buy the 12v battery. and so on.
