Specifications
1.Copper coated2.Stable arc,low splashing
3.Available size; 0.6mm, 0.8mm, 0.9mm, 1.mm, 1.2mm, 1.6mm
SG2/ER70S-6 welding wire/CO2 welding wire/Mig welding wire
1. Feature:
1)Excellent mechanical performance.
2)high depositiong speed.
3)excellent depositing efficiency.
4)Stable arc, little splash.
5)good welding seam.
6)Suitable for all-position welding work.
7) Lead time: 10days for 25to(20ft container) after cofirming order
2.certificate
3. Application:
used fpr we;domg low carbon steel and low alloy steel structure,
such as ships, vehicles, bridges, boilers and buildings etc.
4.Specification:
Chemical components of solder wire (%)
Brand/Model | ER50-6/ER70S-6/HLER70S-6 | |||||||||
Standards | Confirm to GB/T 8110-2008 ,Correspond to AWS A5.18 /JIS Z3316 | |||||||||
Chemical components of welding wire
| C | Mn | Si | S | P | Cu | Cr | Ni | Mo | |
≤0.11 | 1.80-2.10 | 0.56-0.95 | ≤0.030 | ≤0.030 | ≤0.050 | ≤0.20 | ≤0.30 |
| ||
Mechanical properties of deposited metal | σ0.2 (MPa) | σb (MPa) | δ5 (%) | AKV (J) | ||||||
≥372 | ≥490 | ≥20 | ≥47room temperature | |||||||
Characteristics | Applicable for the gas protection welding in carbon steel ,certain low alloy steel soldering and manufacture in the auto mobile ,ship ,bridge construction | |||||||||
Sp | φ0.6mm-2.0mm | |||||||||
| 0.9kg,4.5kg,5kg,15kg,20kg,27kg precision layer wound on plastic spool,each spool in a box ,then boxes on wooden pallet. Or as per customers requirements | |||||||||
Brand/Model | HJ50-6 /ER50-6/ER70S-6 | |||||||||
Standards | Confirm to GB/T 8110-2008 ,Correspond to AWS A5.18 /JIS Z3316 | |||||||||
Chemical components of welding wire
| C | Mn | Si | S | P | Cu | Cr | Ni | Mo | Other |
0.06-0.15 | 1.40-1.85 | 0.80-1.15 | ≤≤0.035 | ≤0.025 | ≤0.050 | _ | _ | _ | ≤0.50 | |
Mechanical properties of deposited metal | σ0.2 (MPa) | σb (MPa) | δ5 (%) | AKV (J) | ||||||
≥420 | ≥500 | ≥22 | ≥27-29 | |||||||
Characteristics | Applicable for welding of low carbon steel and low alloy steel.Mainly used for all position welding of 50kg steel plate. Good low temperature flexibility. | |||||||||
Specification | φ0.6mm,φ0.8mm,φ0.9mm,φ1.0mm,φ1.2mm | |||||||||
Package | 0.9kg,4.5kg,5kg,15kg,20kg,27kg plastic spool layer wind. Or as per customers requirements | |||||||||
| FAIRWELD MIG/ MAG/ C02 WIRES |
|---|
CLASSIFICATION | CHARACTERISTICS | USABILITY | WELDING POSITION | WINDING |
|---|---|---|---|---|
| AWS A 5.18 ER70 S-6 | Smooth flow, stable arc and minimum spatter. | Welding Current DC(+) | Downhand / Horizontal / Vertical | • Random • Precision Layer |
APPLICATIONS |
|---|
| Mild and structural steels with tensile strength up to 540 N/mm2• Thin sheet welding in the automobile industry. |
WIRE CHEMISTRY (%) | ALL WELD MECHANICAL PROPERTIES | ||
|---|---|---|---|
| (under CO2 shield) | |||
| C | 0.07-0.09 | YS (N/mm2) | 420 (minimum) |
| Mn | 1.44-1.52 | UTS(N/mm2) | 500 (minimum) |
| Si | 0.83-0.90 | Elongation (%) (I = 4 x d) | 22 (minimum) |
| S | 0.020 max | ||
| P | 0.020max | CVN impact values at | O° C : > 54 J |
| Cu | 0.50max | -29° C : >27J | |
5. Picture for reference
1) factory

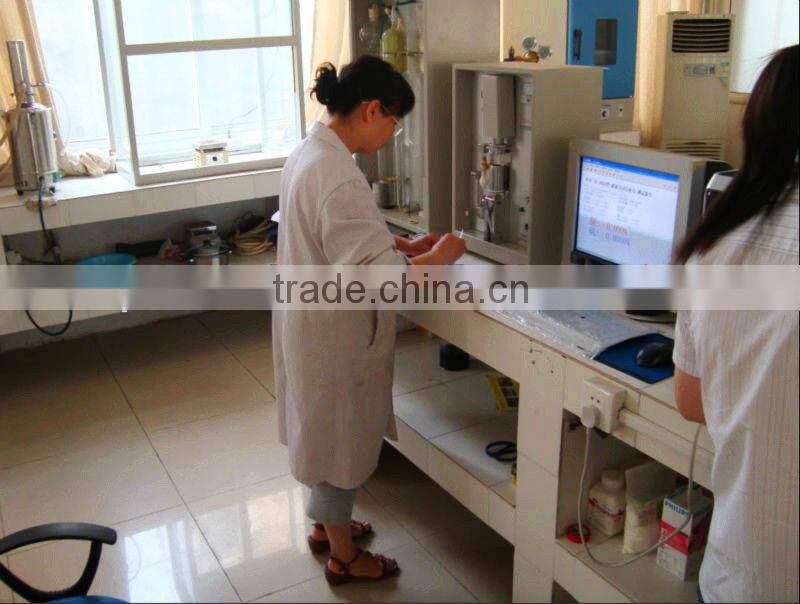

2) Examine
3) product
4) loading and transportation
6. Why choose our products of the HSMH ?
because of the following reasions
1) We are the factory, is a trading company, industry and trade integration of the manufacturers welcome!
2) We have more than 20 years of production experience, our excellent facilities and good price competitive advantage .
3) Our products, to the wire as an example, has these advantages, less smoke, less splash, plating finish, good fluidity .
4) We provide free technical training and solutions. If you have any questions feel free to contact us, we will be on hand to answer your questions.
5) Quality of our products is absolutely secure, welcome to China for a visit, support for third-party audits, inspection.
6) We are also looking for welding wires, welding agents abroad. If you are interested, you can contact us. You only need to manage a factory, we give you the factory in the past, and technical guidance.
