hot electronics products 50w led driver 5V power supply china fty
- 500000 Unit / Units per Month
- xiamen or shenzhen china
- T/T Credit Card
- MFW S-75-12 uninterruptible power supply china
- china manufacturer 24v 100W power supply circuit stablity voltage led driver
- factory direct 12v 100w power supply led driver wholesale
- New model 120w switching power supply with high quality
- MFW S-120-5 volt universal power supply 5v power supply for shool
- MFW S-50-24 50W single output smps 24V dc power supply
Product Details
Place of Origin: | Jiangxi, China | Brand Name: | MFW | Model Number: | S-50-12 |
Output Power: | Other, 50W | Output Type: | Single | Input Voltage: | Other, 85~132vac /170~264vac |
Output Voltage: | 12v | Output Frequency: | 50/60HZ | Output Current: | 4.16A |
Product Description
Specification | S-50-5 | S-50-12 | S-50-15 | S-50-24 |
DC output voltage | 5V | 12V | 15V | 24v |
Output voltage range | ±2% | ±1% | ±1% | ±1% |
Rated output current | 10A | 4.2A | 3.4A | 2.1A |
Output current range | 0~10A | 0~4.2A | 0~3.4A | 0~2.1A |
Wave and noise | 75mVp-p | 60mVp-p | 60mVp-p | 50mVp-p |
DC output power | 50W | 50.4W | 51W | 50.4W |
Efficiency | 71% | 78% | 78% | 80% |
AC input voltage range | 85~132VAC/170~264VAC selected by switch 47~370VDC | |||
Input current | 1.3A/115V 0.65A/230V | |||
AC inrush current | cold start current 15A/115V 36A/230V | |||
Overload protection | 105%~150% Type:pulsing hiccup shutdown reset:auto recovery | |||
Setup,rise,hold up time | 200ms,100ms,30ms | |||
Working temperature and humidity | -10 °C~+60 °C ,20%~90%RH | |||
Store temperature and humidity | -20 °C ~+85 °C ,10%~95%RH | |||

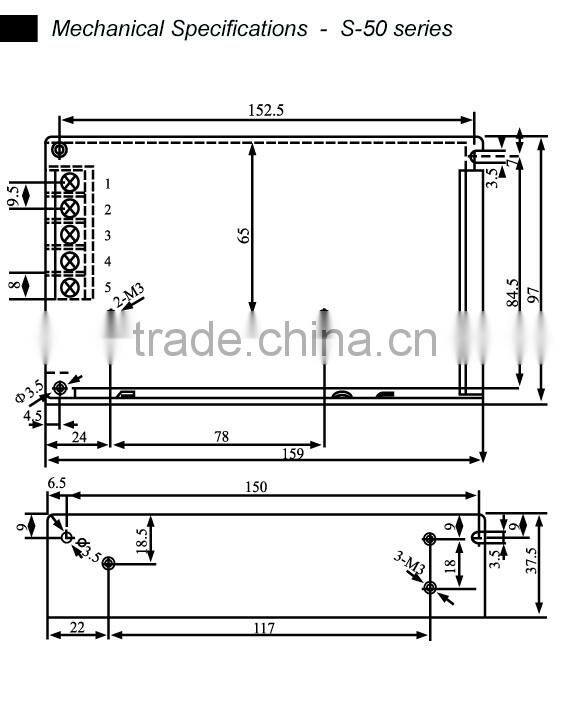

Overall dimension | 157*97*38mm | |||
Weight | 0.5kgs | |||
Safety standards | Meet UL1012 requirement(Not ally for the mark) | |||
EMC standards | ............. |

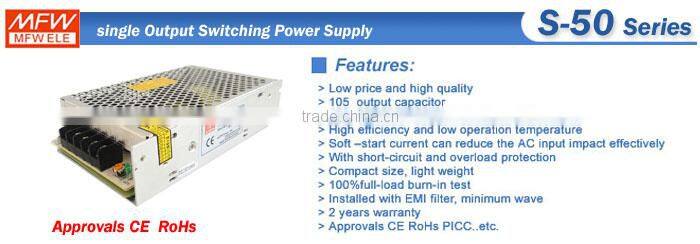

ü 1U low profile:38mm
ü High efficiency up to 78%
ü 85~132VAC or 170~264VAC input selectable by switch
ü Protection: Overload
ü Cooling by free air convection
ü LED indicator for power on
ü 100% full load burn-in test
ü Certificates:UL / CUL / CCC / CB / CE

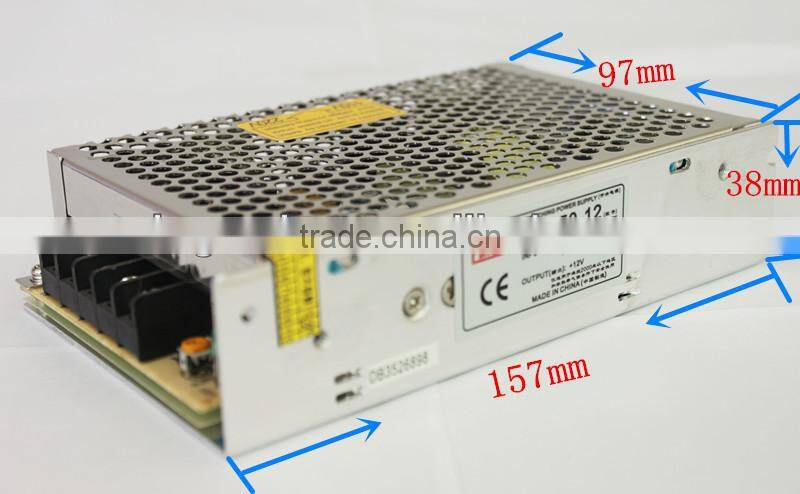

ü Dimension(LxWxH):157x 97x 38mm
ü 2 years warranty
What we can do :
1. All of our products have proceeded aging test before shipment and we guarantee to use our products safety.
2. Support imprint your logo on products and let your logo shine anywhere.
3. OEM/ODM orders are warmly welcome!
Warranty and Return:
1. All products and accessories have been tested by 3 times before ship out.
2. All products have 2 year warranty ,if there is no man-made problem,we will replace or repair for your freely.
3. We own the best after-sale service ,if any problems happen, our team will do our best to solve for customers.
Founded in 2003, Mingwei Corporation has been recognized as the leading manufacturer of industrial switching power supply and inverters in China. Our self-invested new factory is located in Jiangxi Ruijin, covering an area of 21000m2, and the factory building reach 20000m2. Our company offer products and services ranging from switching power supplies AC/DC&DC/DC standard, PFC, open frame, battery charger, din rail, LED driver to power inverter including mini car inverter, modified sine wave and pure sine wave inverter, battery charger, inverter with charger, domestic inverter, dc to dc converter, solar controller, solar power system, jump starters and other solar related products. Besides, more than 5000 models showing great flexibility. We have R&D department with more than 20 people to insure our product quality, with more than 500 workers guarantee on-time delivery.
Mingwei has been a famous brand in China, increasingly well-known in world market.
WELCOME TO VISIT OUR FACTORY!
TEL:+86-797-2322666 FAX:+ 86-595-2322777
Mob. & whatsapp: 86-13459596085 Winnie wang
Skype: winniewang2919
Note: We are always looking for distribution/ agents in many countries.
