Home > Products > slip roll machine > (ESR-1300X1.5) Electric Slip Roll Machine

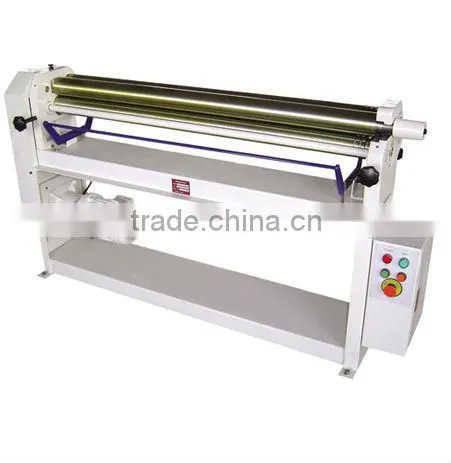

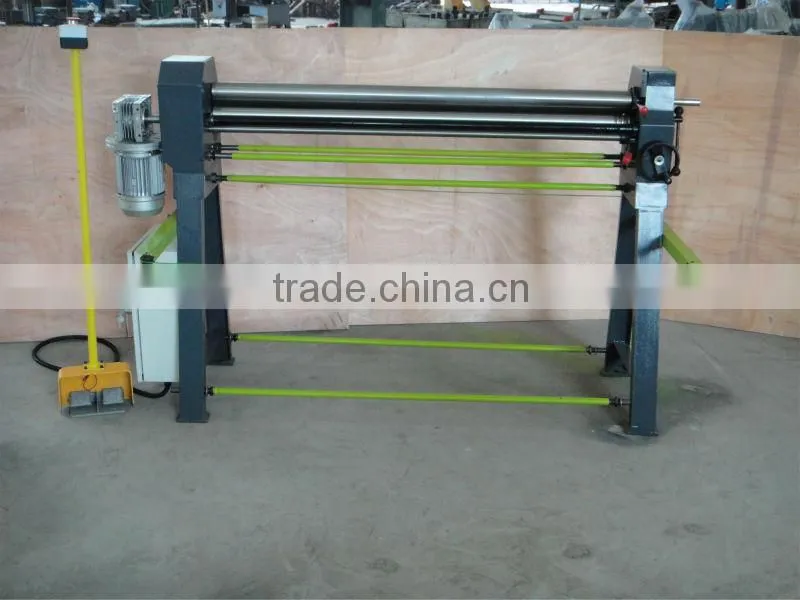

(ESR-1300X1.5) Electric Slip Roll Machine
- 400 Set / Sets per Month
- qingdao/shanghai/dalian
- T/T
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | ouke |
| Model Number: | ESR1300x1.5 | Machine Type: | Other, slip rolling, Roller-Bending Machine | Raw Material: | Sheet / Plate Rolling |
| Material / Metal Processed: | Carbon Steel | Power: | Other, electric | Automation: | Manual |
| Extra Services: | Machining | Certification: | CE | After-sales Service Provided: | No overseas service provided |
Product Description
Specifications
1.High strength steel rolls
2.Asymmetrical roll bending machine with 3-rolls
3.Fixed top roller,adjustable lower rollers
Specifications
1.High strength steel rolls
2.Asymmetrical roll bending machine with 3-rolls
3.Fixed top roller,adjustable lower rollers
Features
1. Fixed top roller, adjustable lower and rear rollers
2. Standard series wire core groove
3. Top roll swing out across cam lock
4. Supplied with conical bending feature
5. The electric slip roll not only reels but also can cone materials
6. It can roll the round bar steels whose specifications are ¢6, ¢8, ¢10 and so on.
7. The 24V pedal switch can smooth the operation
8. The safety mechanism of electric slip roll is in line with the CE standard.
Main technical parameter

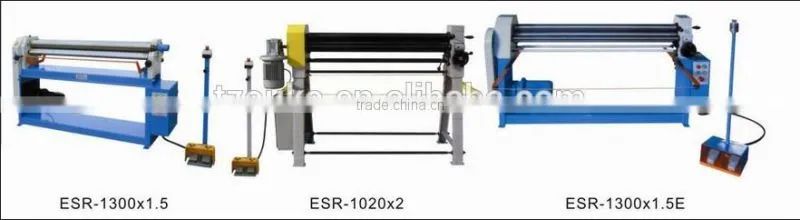

Model | Max.thickness (mm) | Max.width (mm) | Motor power (Kw) | Packing dimension (mm) | N.W./G.W. (kg) |
ESR1300X1.5 | 1.5 | 1300 | 0.75 | 115X50X69 | 166/210 |
ESR1020X2 | 2.0 | 1020 | 0.75 | 155X50X69 | 200/240 |
ESR1300X1.5E | 1.5 | 1300 | 0.75 | 180X50X69 | 223/260 |
