PVC Coated Outdoor Tent Fabric 20652WB

Guangdong Yilong Advanced Material Technology Co., Ltd.

US$ 3.44 - 3.85 MOQ: 1500 Square Meters

Key Specifications

Supply Type:

Make-to-Order

Type:

Tarpaulin

Pattern:

Coated

Payment & Shipping

Payment Methods:

Port of Shipment:

Gaoming/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Supply Type Make-to-Order

Type Tarpaulin

Pattern Coated

Coated Type PVC Coated

Style Plain

Width Other, 250cm/295cm

Technics Woven

Feature Waterproof, Flame Retardant, Tear-Resistant, Heat-Insulation

Use Awning, Tent, Wedding, Other

Certification EN, Other, EN, ISO9001,ISO14001

Yarn Count 1000*1000 Dtex

Weight 650gsm

Density 23*23

Model Number 20652WB

PVC Coated Outdoor Tent Fabric 20652WB

Product Description

PVC Tarpaulin Fabric = Top PVC Layer + Basic Woven Fabric + Bottom PVC Layer

Curtain: 650g/m2 + 1100D(20*20inch) + 2.5/2.95/3.2m(Width)

Ceiling: 850g/m2 + 1100D(23*23inch) + 2.5/2.95m(Width)

Edge: 900g/m2 + 2200D(20*20inch) + 1.25m(Width)

Advantage :

Products Index Parameter
Product Model	20652WB	20652W2	20752WB	20852W2	00902W4	Ref.Test Method
Applications	Tent Curtain	Tent Curtain	Tents	Tent Ceiling	Boud Edge
Material	100% Polyester and PVC	100% Polyester and PVC	100%Polyester and PVC	100% Polyester and PVC	100% Polyester and PVC
Grey Cloth	PES					DIN60001
Dtex of Yarns(warp/weft)	840/840Dtex	1100/1100 Dtex	840/840Dtex	1100/1100 Dtex	1100/1100 Dtex	DIN EN ISO2060
Weaving Type	L1:1					DIN ISO9354
Type of coating	PVC both sides				PVC one side
Lacquering	Acrylic both sides				No lacquering
Weight	650 g/m²		750 g/m²	850 g/m²	900 g/m²	DIN EN ISO 2286-2
Width	250cm/295cm/320cm		250cm/295cm	250cm/295cm	125cm	DIN EN ISO2286-1
Tensile Strength(warp/weft)	2800/2400 N/5cm			3000/2500 N/5cm	3800/3500 N/5cm	DN53354
Tear Strength(warp/weft)	300/250 N			350/300 N	650/500 N	DN53363
Adhesion	100 N/5cm		100 N/5cm	100 N/5cm	120 N/5cm	DIN55357
Applicable Temperature	-30~+70°c
Colors	White 650		White 640	White 640	Grey 720/ white 650
Flame Retardancy	NFP92503 M2/DIN4102 B1
Light Fastness	> 6					DIN54004
Environmental Management	ISO14001
Quality Management	ISO9001

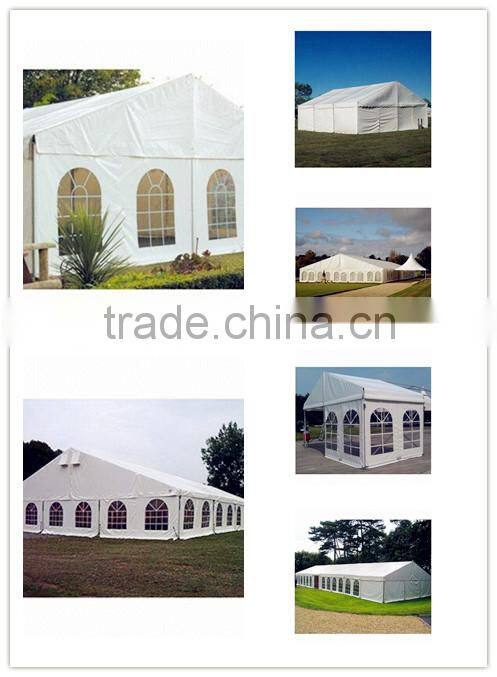

Application : Widely used in

Outdoor pavilion, exhibitions, news center, passenger rest, meeting discussion area, temporary warehouse, guest regist place,
Shading channels, opening ceremony, the product promotion, celebration activities,
Tight urgent rescue, earthquake relief,rain canopy and an effective solution to various temporary activities.
