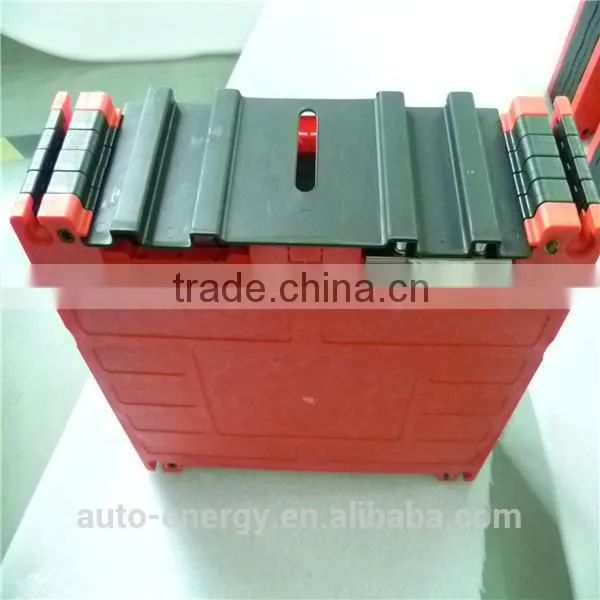

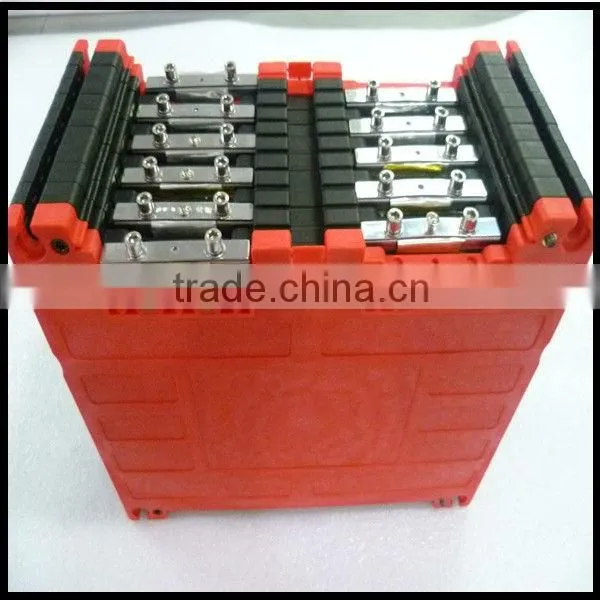

12v200ah lipo battery pack using 3.2v100ah polymer battery cell for solar system

Specifications

12v200ah lipo battery pack
2000 times cycle
24 month warranty

Super Power Batteries (Lithium Batteries) Manufacturer---Shenzhen Auto-Energy Technology Co.,Ltd

•

  P

•   Soft pack,  barren liquor ,excellent security, need not safety valve

  · Large capacity . long cycle life, high energy density

  · Low internal resistance,  low self-discharge rate

  · Superior performance in rate discharging

  · 360 degree in any display, high space utilization

  · Wide operating temperature : -20-55 degree



• 1. Large-scale electric vehicles: electric bus, electric car, E-Tour Car

  2. Light electric car: e-bike, e-scooter,e-motorcycle, electric golf cart, e-wheelchair

  3. E-tool: electric drill, electric saw, lawn mower and so on

  4. Remote control cars, boat, aircraft, toys

  5. Solar and wind power generation energy storage devices, Telecom base Station

  6. Small medical equipment and portable equipment








  Weight	Approx.25kg	Case material	Red-black plastic case
  Positive electrode	Lithium iron phosphate	Negative electrode	Graphite
  Nominal voltage	12V	Nominal capacity	200AH
  Impedance	≤70mΩ	Max. charge voltage	14.6V
  Continual charge current	100A	Max.pulse charge current(10s)	500A
  Max. discharge current	300A	Operating Temperature	Charging: 10~45℃, Discharging:-20~55℃
  Cycle life at 20 °C and 100% DOD(1C charge; 1C discharge)		>2000cycles to 80% nominal capacity
  		>3000cycles to 60% nominal capacity

















                       Our typical product ( battery is customized from 10-300ah for cell!!!)



No	Model	Nominal capacity  (AH)	Nominal voltage (V)	Size (mm)	Cycle life
1	LFP10215160P	20AH	3.2V	10*215*160	³ 2000
2	LFP10460320P	100AH	3.2V	10*460*320	³ 2000
3	LFP15210260P	60AH	3.2V	15*210*260	³ 2000
4	LFP10320230P	50AH	3.2V	10*320*230	³ 2000
5	LFP20320230P	100AH	3.2V	20*320*230	³ 2000
6	LFP18460320P	200AH	3.2V	18*460*320	³ 2000
7	LFP380380S	20AH	3.2V	Diameter38*H380	³ 2000
8	LFP75380S	100AH	3.2V	Diameter75*H380	³ 2000
9	LFP55380S	50AH	3.2V	Diameter55*H380	³ 2000
10	LMT55380S	45AH	2.4V	Diameter55*H380	³ 20000
11	LFPT55380S	45AH	1.8V	Diameter55*H380	³ 20000
12	12V100AH	100AH	12V	70*340*295	³ 1500
14	48V50AH	50AH	48V	260*380*260	³ 1500
15	LMO55200S	30AH	3.7V	Diameter55*H200	³ 1000









Should the battery or similar product be of interest to you, please contact me for further details including price.



Contact:

Ms. Jade Han (Sales Manager)

Shenzhen Auto-Energy Technology Limited

Website

Tel:  +86 755 28170960

Fax: +86 755 28117525

Skype: jadehan4
