High temperature resistant fiberglass sleeve braiding machine auto wire harness

High temperature resistant fiberglass sleeve braiding machine:
Standard Export Carton Packing (other packing requirements are accept upon further request)

Specifications

High temperature resistant fiberglass sleeve braiding machine:
1.Halogen Free,UL,ROHS
2. Easy to install
3.Light and flexible

High temperature resistant fiberglass sleeve braiding machine:

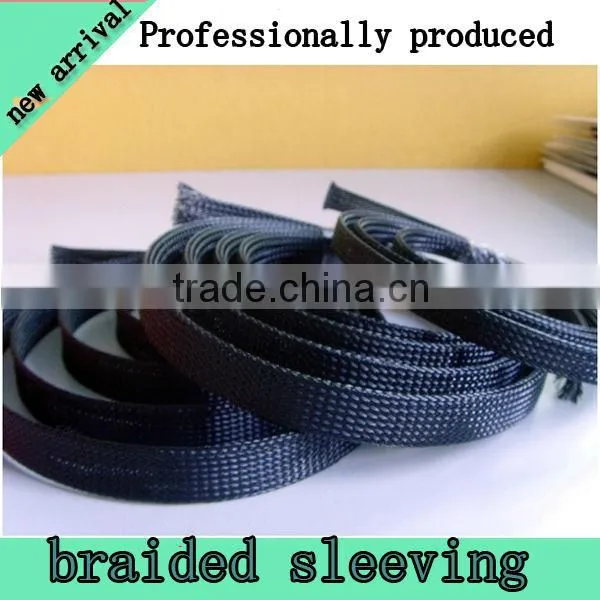

PET braided sleeves are manufactured from polyester monofilament. The functions of sleeves are flame-retardant, expandability and abrasion-resistant. Widely used in protecting wires, cables such as HDMI cables and harness. It can also work as a decoration.



Technical data:

Types	Size		Material	NormalExpandable range		Packing (Meter/roll)
	(mm)	(Inch)		(mm)	(Inch)
0.20*3*24F	3	1/8	PET	2.4-6.4	3/32-1/4	400
0.20*3*32F	6	1/ 4	PET	3.2-11.1	1/8-7/16	400
0.20*3*40F	8	5/16	PET	6.4-12.7	1/4-1/2	400
0.20*3*48F	10	3/8	PET	4.8-15.9	3/16/-5/8	400
0.20*3*48F	12	1/ 2	PET	6.4-19.1	1/4-3/4	400
0.20*3*56F	16	5/8	PET	9.5-25.4	3/8-1	400
0.20*3*64F	19	3/ 4	PET	12.7-31.8	1/2-1 1/ 4	400
0.25*3*72F	25	1	PET	15.9-38.1	5/8-1 1/ 2	200
0.25*3*96F	32	1 1/ 4	PET	19.1-44.5	3/4-13/ 4	200
0.25*3*96F	38	1 1/ 2	PET	25.4-63.5	1-2 1/ 2	100
0.25*3*120F	45	1 3/ 4	PET	31.8-69.9	1 1/4-2 3/ 4	100
0.25*3*120F	51	2	PET	38.1-88.9	1 1/2-3 1/ 2	100



 Company information:

VAST is located in Dongguan and is specialized in manufacturing PVC tubing. With an experienced and professional team, we have exported our products to many countries and regions all over the world, especially the European Union.

 Our company have more than ten years of production and developing experiences , with perfect equipment and design ability.

 Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.



Our service:

 (1) MUTUAL BENEFIT: Our offer will be reasonable, ourprice will be cheaper in the same quality.



(2) CUSTOMIZE: We can make the product as your request, Shape and Quality can meet your request.



(3) OEM: (1)Laser Print your Logo (≥100PCS). (2)Design your packing box(≥1000PCS).



(4) MIX ORDER: We accept mix order, different model and small quantity order.



FAQ:

 1. The PVC Tubing supplied for the customers should be based upon the samples that both sides have confirmed, not restricted by the performance indicators.

 2. The company can manufacture PVC Tubing which has achieved all the performance indicators, however, the price should be discussed face to face.
