Carbon fiber pipe tube for household appliances
- 100000000 Meter / Meters per Month
- Shenzhen
- Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | VAST | Model Number: | VAST-1200V |
Type: | Insulation Sleeving | Material: | Fiberglass | Application: | High Voltage |
Rated Voltage: | 1200V | Tensile Strength: | optional |
Packaging Details
100m/roll or customized
Product Description
Specifications
Carbon fiber pipe decorative lighting:1.Temperature range: 200
2.Standard: UL 1441
3.Usage: lighting, household appliances

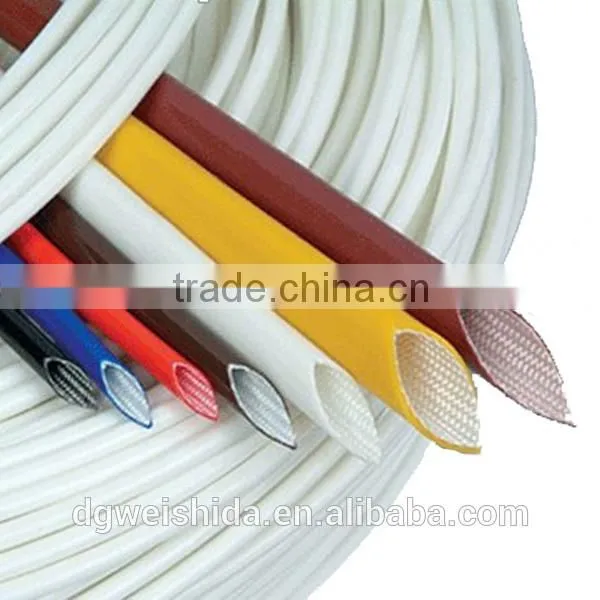

Carbon fiber pipe tube for household appliances is adopt excellent materials,it is braided into tubes with non-alkali glassfiber,and then painted with Acrylic Resin,it is widely used in insulating protection of F Grade electrical machinery,home appliance,electric & heat equipment,special lightware etc.
Product Dimensions:
SIZE (mm) | Inside diameter Tolerance (mm) |
Wall Thickness (mm) |
Unitlength (m) |
0.8 | 0.8+0.2/-0.1 | 0.30±0.05 | 100 |
1.0 | 1.0+0.2/-0.1 | 0.30±0.05 | 100 |
1.5 | 1.5+0.2/-0.1 | 0.30±0.05 | 100 |
2.0 | 2.0+0.2/-0.1 | 0.30±0.05 | 100 |
2.5 | 2.5+0.2/-0.1 | 0.30±0.05 | 100 |
3.0 | 3.0+0.3/-0.1 | 0.30±0.05 | 100 |
3.5 | 3.5+0.3/-0.1 | 0.30±0.05 | 100 |
4.0 | 4.0+0.3/-0.1 | 0.40±0.05 | 100 |
4.5 | 4.5+0.3/-0.1 | 0.40±0.05 | 100 |
5.0 | 5.0+0.35/-0.15 | 0.40±0.05 | 100 |
5.5 | 5.5+0.35/-0.15 | 0.40±0.05 | 100 |
6.0 | 6.0+0.35/-0.15 | 0.40±0.05 | 100 |
7.0 | 7.0+0.35/-0.15 | 0.40±0.05 | 50 |
8.0 | 8.0+0.5/-0.2 | 0.40±0.05 | 50 |
9.0 | 9.0+0.5/-0.2 | 0.40±0.05 | 50 |
10.0 | 10.0+0.5/-0.2 | 0.50±0.05 | 50 |
11.0 | 11.0+0.6/-0.3 | 0.50±0.05 | 50 |
12.0 | 12.0+0.6/-0.3 | 0.50±0.05 | 50 |
Specification:
Continuous Operating Temperature | -60°C~+200°C |
Temperature Endurance | 200°C±2°C 168≥1/2Original voltage |
Aging Test | 260°C, 6hour, No carck |
Cold Bend | No carck |
Horizontal Flame Test | > 30 second |
Flame Retardance (VW-1) | > 30second |
Volume Resistivity | 10" Ωcm |
Submerge Water Test | No stickness, deforming, inteneration |
We can customised as per your requirements!
