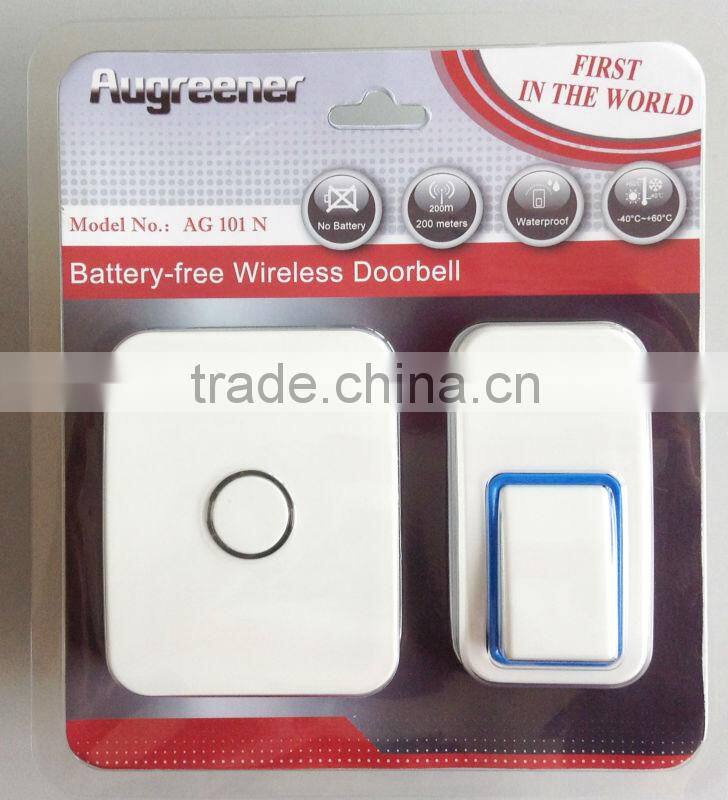

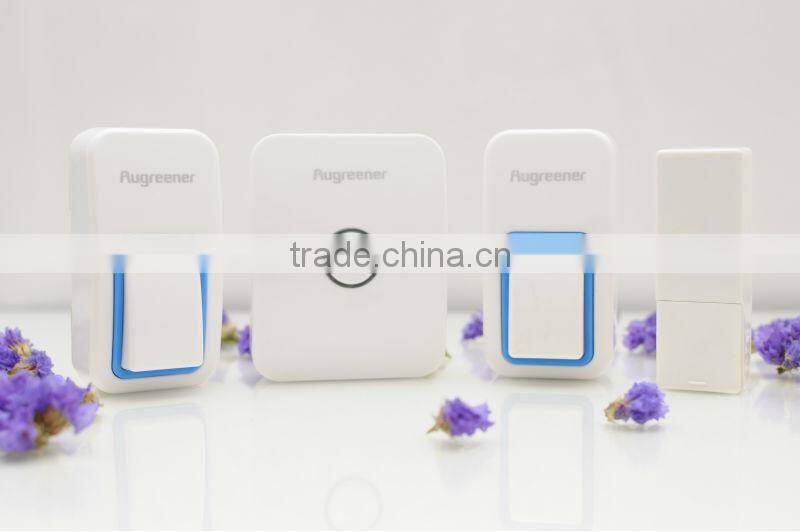

Wireless Doorbell 315MHz or 433.92MHz Used for hospital ,Home ,Office & Apartment

Specifications

the world's first battery-free wireless doorbell button
chime is AC-powered, button is self-powered
280-meter distance



The world's first batteryfree wireless doorbell with self-powered doorbell button.

No batteries, no pollution.

No wires, no limits.

20 years service life.

Super long distances of 200 meters.

Product Overview:

Battery-free wireless doorbell chime uses energy harvesting technology. Mechanical energy produced by user’s pressure on the button could be changed into electric energy. No wiring, external power, or batteries are required. wireless doorbell plug in



Specifications	Chime	Transmitter
Power supply	AC 110V/220V	Self-powered
Operating temperature	-10°C to +45°C	-20°C to +60°C
Range(Open field)		200 meters
RF Frequency	868MHz/433MHz/315MHz
Crosstalk rate	1/4,200,000,000
Sound Level(typical)	85dBA @3 ft(1m)
Power consumption	Standby mode:<200mW	<10mW
	Working mode:<700mW
Water proof		Yes
Color of Indicator light	Blue
Operating forces		7N
Dimensions	68*86*46mm	46*88*41mm
Weight	79g	80g
Ring Tone	28 polyphony ring tones







Features &benefits

280 meters transmission range in the open

20 years service life

Self-powered transmitter, no batteries or external power required.

16 polyphony ring tones, built-in amplifier, good sound quality makes it pleasant to hear.

Self-learning code system automatically adjusts to eliminate interference



Tech Intro

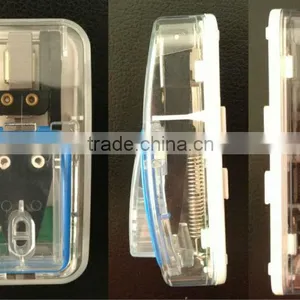

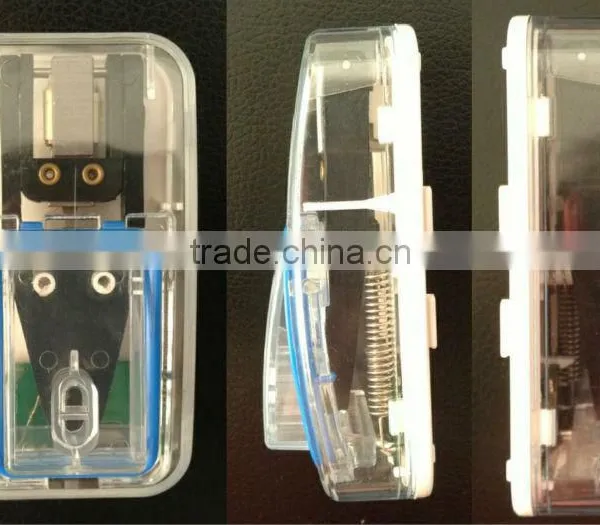

Transmitters use the unique PUSH-RF technology which is the energy harvesting wireless technology and ultra low power technology. When the button is pressed, it will trigger the micro-generator, the direction of the magnetic circuit in the micro-generator would change. The rapid magnetic flux change leads to an induced voltage, in other words, mechanical energy is changed into electric energy.



RF-transceiver of the receivers receive the wireless signals, microcontroller identifies the signals. If the signals are right and the pairing between receiver and transmitter is successful, the music chip in the receivers will be triggered; then the loudspeaker plays beautiful music to tell the host there’s a visitor waiting at the door.
