PLASTIC black GEOGRID

Specifications

PLASTIC GEOGRID:
1.Width: 1-5 M.
2.Longth:50 or 100 M.
3.Used for Road Base.
4.High Quality, Low Price.

Contact Information:

Sales manager: Danny
Mobile phone:0086 15075828982
Fax: +86 318 2353322
Tel: +86 318 7950616
Company Name: Hengshui Baoli Engineering Plastic Co.,Ltd.
Address: No.589 Shunping Street High-tech Developing Zone, Hengshui City, Hebei Province, China.



Description of PLASTIC GEOGRID:

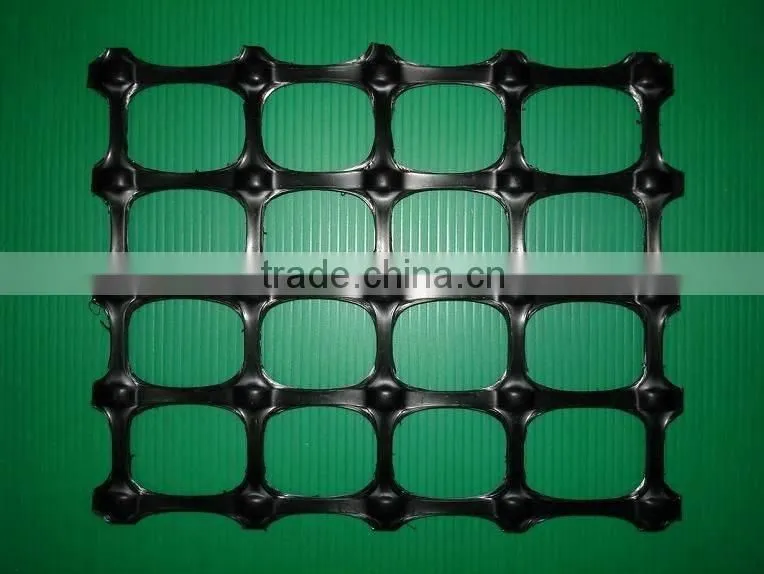

The BAOLI BIAXIAL PLASTIC GEOGRID is similar with the material of unidirectional tension plastic geogrid. Its chemical property isnt active too. It is extruded by macromolecule polymers, and formed by longitudinal and horizontal tensions. This kind of material has high tension strength in both longitudinal and horizontal directions. This kind of structure provides a interlock system for the soil and is suitable for the improvement of roadbed with large area permanent load, such as treatment of soft soil foundation and reinforced earth structures.

Product Feature
FEATURES of Biaxial Geogrid:
1. Enlarging the bearing capacity of groundwork / roadbed, thus prolonging their life.
2. Preventing road sink or split, and maintaining road tidyness.
3. Simple construction work saves time, energy, shortens project time while reduces maintainence fee.
4. Reinforcing earth slopes to prevent the soil erosion.
5. Thinner layers of Tensile Plastic Biaxial Geogrid saves money.
6. Supporting the surrounding environment stability of side slope grass layers.


Product Specification/Models
TSpecifications of Biaxial Geogrid: GSG15,TGSG20,TGSG25,TGSG30,TGSG35,TGSG40 and so on.

Applications of Biaxial Geogrid:
BAOLI Biaxial Geogrid can be used to enhancement of permanent bearable toft including roads and railways embankment, slopes, tunnel, airfields, parks, docks and ground which cargo lays on and their main usage are as follows:

A. Enhance the bearing capacity of road foundation and extend the duration of roads.
B. Prevent road surface from collapse, crack and being dirty.
C. Be convenient for construction, timesaving and cut down the cost of maintenance.
D. Prevent tunnel from crack occurring.
E. Further solidity slopes to proof water and soil from losses.
F. Reduce the surface thickness of the ground.
G. Consolidate the net for growing grass on the slopes so as to stabilization surrounding virescence.
H. Be used for artificial top net of mines instead of metal ones.
APPLICATION

Tensile Plastic Biaxial Geogrid is fit for dams of all kinds, as well as roadbed strengthening, side slope reinforcement, tunnel wall reinforcement and the groundwork strengthening of those permanent weight-bearing places like major airports, parking lots, dock goods yard.

Item	TGSG15	TGSG20	TGSG30	TGSG40	TGSG45
Longitudinal tensile yield strength per long meter  KN/M≥	15	20	30	40	45
Horizontal tensile yield strength per long meter KN/M≥	15	20	30	40	45
Longitudinal yield elongation rate ≤%	13
Horizontal yield elongation rate ≤%	16
Tensilestrength when longitudinal elongation rate is 2% KN/M≥	5	8	11	13	16
Tension strength when horizontal elongation rate is 2% KN/M≥	7	10	13	15	20
Tensile strength when longitudinal elongation rate is 5% KN/M≥	8	10	15	16	25
Tension strength when horizontal elongation rate is 5% KN/M≥	10	13	15	20	22



Other Information
Contact:
Mobile phone: 0086 15075828982
Fax: +86 318 235 3322
Sales manager: Danny
Comany Name: Hengshui Baoli Engineering Plastic Co.,Ltd.

Payment:T/T, L/C.
Delivery:7-15 days
Origin:Factories in Hengshui City of China.
Minimum Order:250 sqm
Packaging:Weave bags of black or yellow colour.
Inspection:Any time.
Samples:Free
Remarks:"Baoli" brand or OEM.



Product Features
1. The intensity is high, the distort is small
2. The wriggle is small
3. Anti-corrosive, the life is long, the geogrid take the plastic material as a protector, auxiliary enables it by each kind of assistant to have the antiaging, the oxidation susceptibility again, but acid proof, alkali, salt and so on adverse circumstance corrosion. Therefore, the steel models the earthwork grill to be possible to meet each kind of permanent work 100 year above use need, and the performance is superior, the size stability is good.
4. The construction is convenient, the cycle is quickly short, the cost is low: The steel plastic complex geogrid to lay down, joining, the localization to be easy, to be smooth, avoids overlapping crossover, but reduced the project cycle effectively, saved the building cost of projects 10%-50%.

Product Function
The products are applied widely on railway, bridge, dock, retaining wall, dam to reinforce the soft soil's and to resist the road surface's crack.
