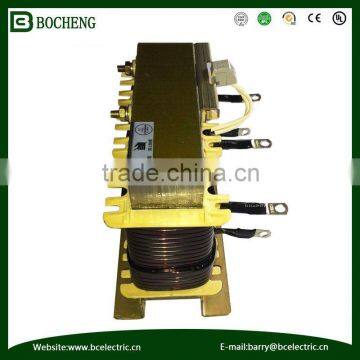

CKSG Series 3- Phase Low Voltage Connection Detuned Reactor Used for Capacitor

Factory supplier passed CE ROHS ISO9001

Three phase Low voltage series reactor

 Capacitor front-end installing the series reactor and to suppress and absorb harmonic, capacitor protection, avoid the influence of the harmonic voltage-current and attack voltage-current.improve the power quality and system power, prolong the service life of the capacitor., to ensure the safe operation of power grid.

Use environment

1,Practical altitude :≤2000m

2,Environmental temperature:-25℃~45℃,relative humidity:≤90%

3,The surrounding area no harmful gas, no flammable and combustible goods

4,The surrounding environment should have good ventilation conditions,if fixed in cabinet,should be installing ventilation

Equipment.

The main performance index and technical parameters

1,Be used for capacitor-voltage:0.4kv,0.45kv,0.4kv,0.4k8v,0.525kv,0.66kv,0.69kv occasion

2,Reactance rate:1%,4.5F,5%,5.67%,6%,7%,12%,13.8%,14%

3,Insulation class:B class, F class,H class,noise≤30db,when overload ability≤1.35 times the equipment work continuous

Product features

1,The product contains three phase,one phase two tape,is dry tape iron core

2,Iron core is made of excellent cold-rolled silicon steel sheet,through speed punch punching,with the performance of small glitch,shape uniform,lamination beautiful,and ensure reactor work with low temperature low noise

3,The coil is made of excellent insulation wire insulated wire,winding by specific machine,with advantages of good flatness and beautiful appearance

4,The reactor assembly,all clamps through anti-corrosion treatment,important clamp use non-magnetic materials,and by per-drying,vacuum impregnation,heat-drying and curing process.make coil and iron core lashing together firmly,greatly reduce temperature rise and noise ,effectively improve the quality of reactor and reduce harmonic.

5,Reactor outline size be designed by standard cabinet,small volume,wiring convenient,greatly save the cabinet cost investment of customer.
