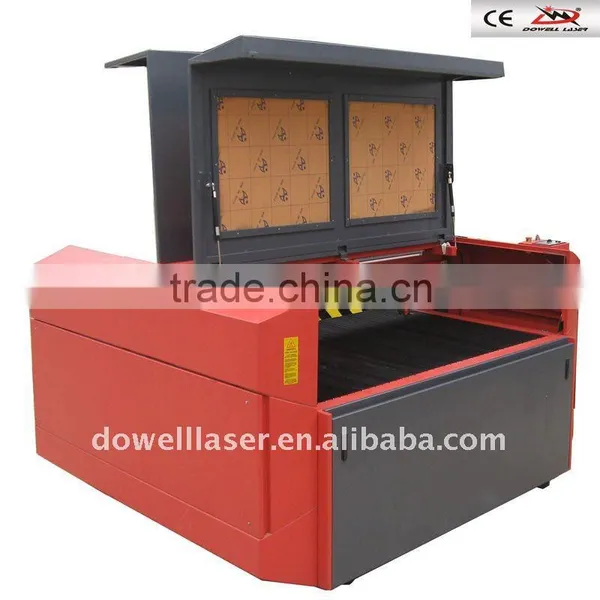

Specifications
24 hours technical support by e-mail, calling or door-to-door serviceDSP control technology
Supports all kinds CAD professio
Laser Generator | Hermetic and detached CO2 laser tube |
Laser Power | 60w /80w /100w/150w |
Work area | 1600mm*1200mm |
Positioning Precision | ±0.01mm |
Cooling Mode | Circulating-water-cooling |
Machine Control and Drive | Speedy DSP controlling, stepper motor |
Power Adjustment | 0-100% controlling, no segment and adjusting by software |
Controlling Software Language | English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Machine Color | grey/Red , Orange/Grey |
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm |
Max Power | 1200w |
Up-down Range of Working Table | 50mm |
Optional Equipment | Rotary attachment |
Engraving Speed | 1000mm/s |
Cutting Speed | 500mm/s |
Color separation | yes |
Laser energy control | 1-100% software setting |
Drive system | High precision 3-phase stepper motor |
Laser output control | 0~100% set by software |
Option | Up & down table honeycomb worktable rotary device red dot position system auto-focus device |
Interface | LCD Screen and USB interface |
Working Voltage | AC220V ±10%,50Hz |
Running Environment | 0-45°, Humidity: 5%-95% |
Features
Reasonable structure, beautiful appearance, economical practical professional design for various customers' demands!
After many times experiments, and ultimately determined the transmission system, with high speed, high precision and long stability life.
The unique optical design----flight optical design , with small deviation, high stability, easy adjustment. Optical components are using the best quality,
Supports all kinds CAD professional drawing software,avoide the trouble of exchanging graphs.
The warming cooling case ensure that the machine works safely.
...
