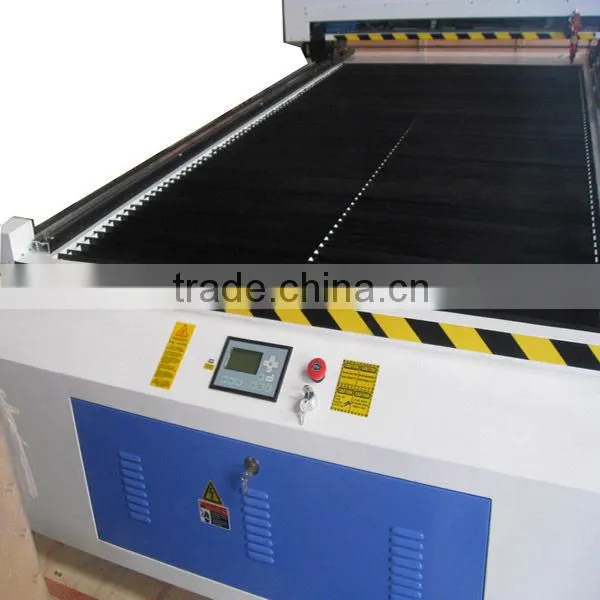

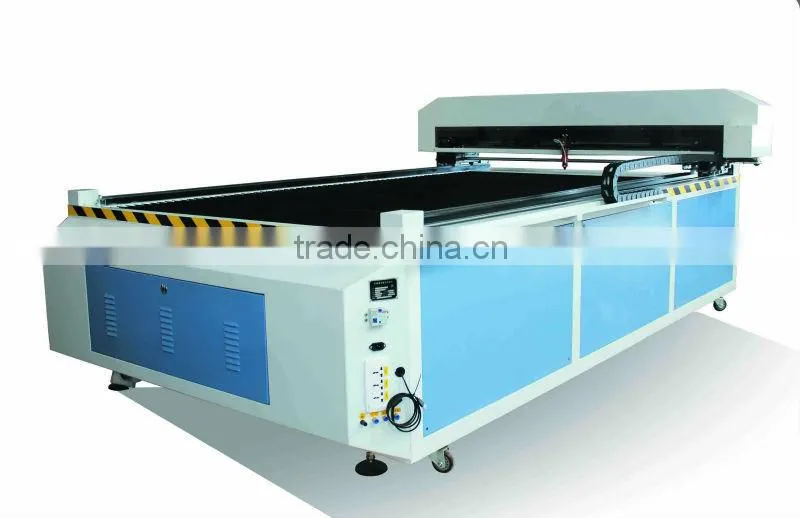

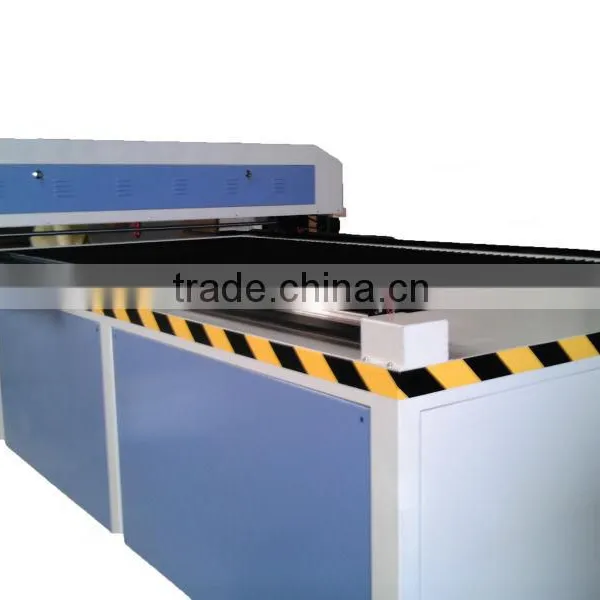

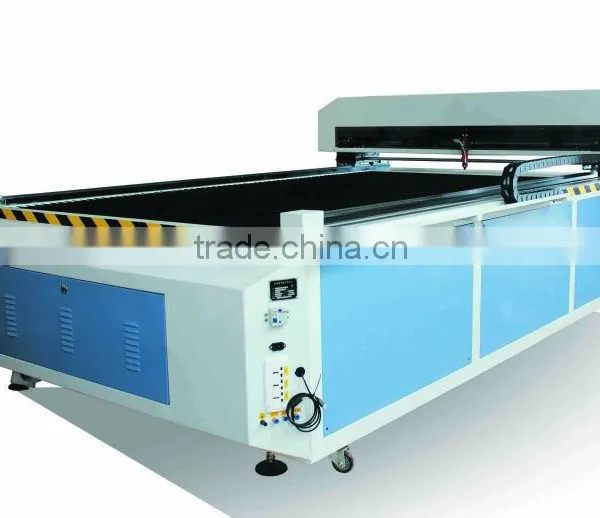

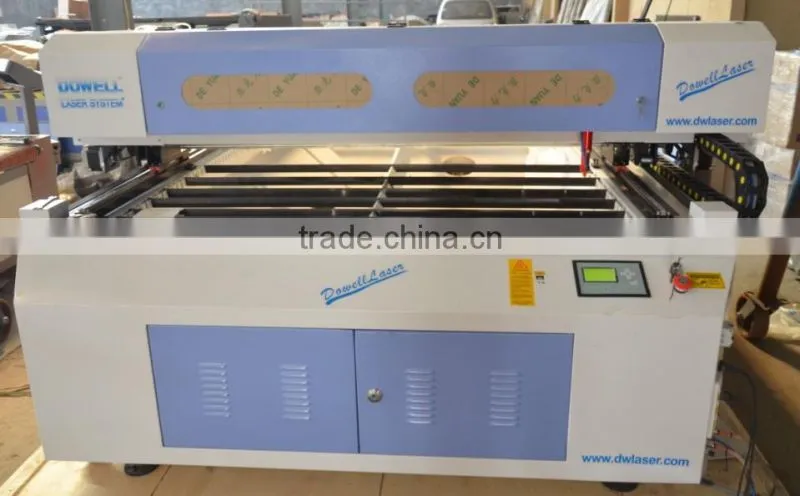

China machinery 1325 laser cutting bed for garments and textile industry/CE FDA cnc laser cutting machine

Specification

1. there are different laser cutting bed with different working area. Working area 1600mmX2500mm 1600mm*3000mm 1800*2500mm 1800mm*3000mm 2000mm*2500mm 2000mm*3000mm

customization is available

2. Conveyor working table with auto-feeding system (optional). High speed continuous cutting home textile fabrics and other wide area flexible materials.

3. Smart nesting software is optional, it can fast layout cutting graphics in the most material-saving way.

4. The cutting system can do super-long nesting and full format continuous auto-feeding and cutting on a single pattern that exceeds the cutting area if the machine.

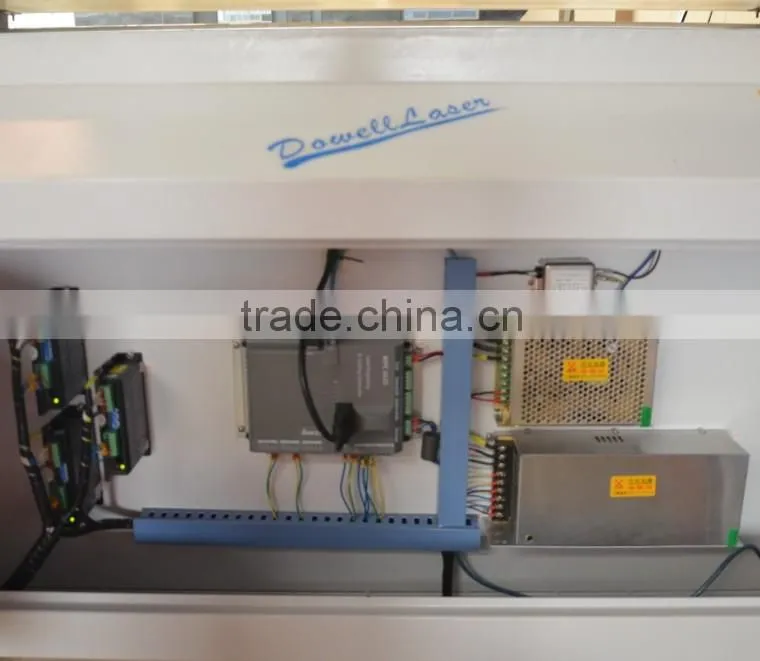

5. 5-inch LCD screen CNC system supports multiple data transmission and can run in offline or online operation.

6. Following top exhausting suction system to synchronize laser head and exhaust system. Good suction effects, saving energy.

7. CCD camera recognition system (optional) realizes automatic contour capturing on the graphic of fabrics.

8. You can print to the laser from a variety of programs, including CorelDraw, AutoCAD and Adobe software.

Features

1.600℃ heat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding, to make sure 20 years usage without deformation.

2.Adopts precision collimator for guide installation and debugging test, the accuracy of 0.01 mm, synchronous wheel pumping test, in order to prevent the cutting is choppy, precision up to 0.02 mm.

3.Patent laser cutting bed convulsions system and convulsions system, which can effectively eliminate 80% waste flue gas. Equipped with convulsions system. Under the convenient receiving device.

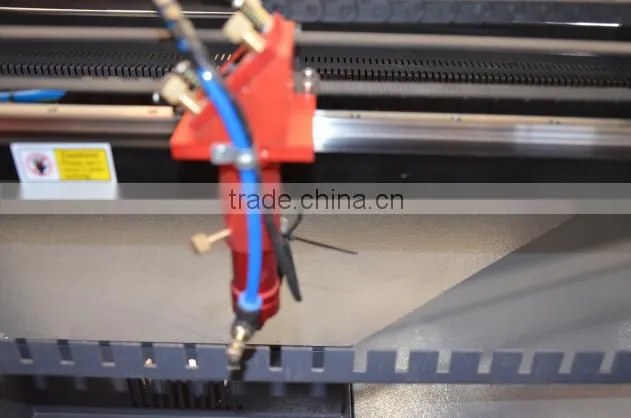

4.Adopt high precision laser head, X axis transmission adopts aluminum structure, the weight reaches to 1.2 tons. Effective guarantee the stability of the machine tool.

5.Small power laser industry the only USES five big laser tube detection process: a. spot test; B. power test; C. life test. D. air pressure test; E. open circuit test.

Technical Parameter

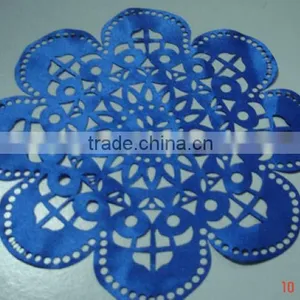

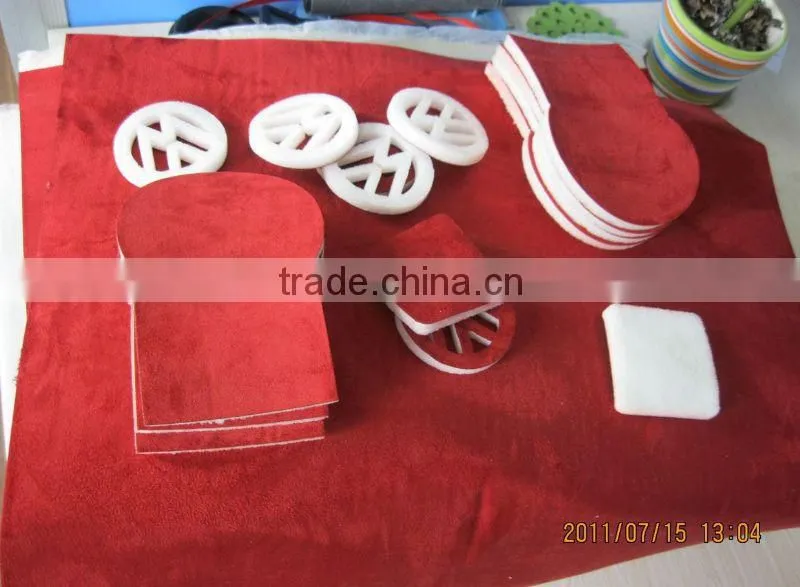

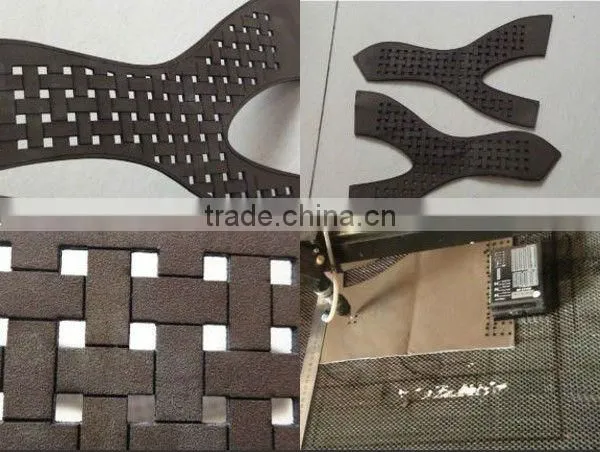

This series of machine is suitable to garment,texyile leather,advertisement decoration,art gift,model,toy and other industries.This machine is specialized in cutting ang engraving on board,cloth,leather and other non-metal material.

1.Durable plywood case or as per required.

2.The delivery lead time would be 12-15 working ddays after recieving the payment.

3.As for the wholesalers/distributors,we could send the cargo by air,by sea or by railways via reliable forwarder.

1. Warranty and Service included:

a. Hardware: 1 year on all parts and labor;

b. Software: whole life on update for free.

c. Maintenance and technological support: whole life.

2.Training:

a. 3--4 days free training for the whole system in Seller’s company.

b. If customer needs our technician give the training abroad, the customer need charge for the transportation and accommodation fees of engineer;

Including: how to set up the equipment;
how to debug the light route;
how to use the software and operate the equipment;
how to replace the bad material and spare parts, etc;
how to maintain the equipment;
how to estimate and settle the problem, and analysis the reason.

  Jinan Dowell Photoelectricity Equipment CO,.Ltd
