Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Frand | Model Number: | FLD162 |
Output Type: | AC Three Phase | Speed: | 3000/3600rpm | Frequency: | 50/60HZ |
Rated Power: | 5KW~1000KW | Rated Voltage: | 110V~690V | Rated Current: | AMPS |
Product Description

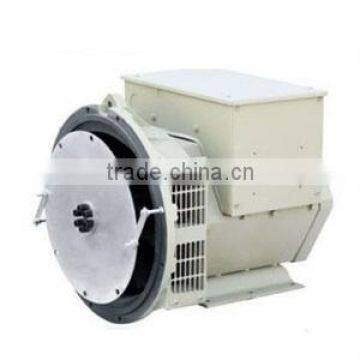

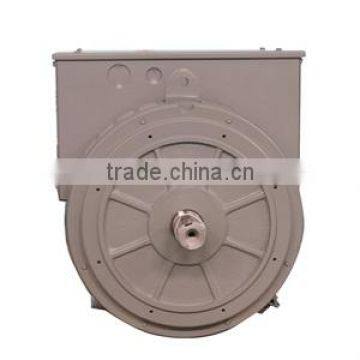

Cheap Low Speed 10Kva Dynamo Alternator 230V
Specifications:
Output Type | AC Three Phase |
Place of Origin | Jiangsu, China (Mainland) |
Model Number | FLD162 |
Brand Name | Frand |
HS Code | 8501610000 |
warranty | 12 months |
Protection Class | IP23 |
Copper wire | UL certificate 200°C H insulation |
Insulation Class | H |
Certification | ISO9001-2008 standard. |
Different types for your referance
Stamford Type | 3 phase 50hz 3000 rpm | 3 phases 60hz 3600 rpm | ||
170v-454v | 110v-240v/230v-460v | |||
KVA | KW | KVA | KW | |
FLD162D | 12.5 | 10 | 15.6 | 12.5 |
FLD162E | 15 | 12 | 18.8 | 15 |
FLD162F | 17.5 | 14 | 21.9 | 17.5 |
FLD162G | 25 | 20 | 31.3 | 25 |
Alternator Features:
- Self-excited, IP23, Insulation Class H Alternator
-Providing invariable excitation on all occasions
- Standard 2/3 pitch winding, easy to be connected with power network or other generators.
- Balanced rotor with single or two sealed ball bearings
-Wide range of Flange adaptor and single bearing coupling disc
-50HZ/ 60Hz, 1500RPM/ 1800RPM as standard, compatible with Stamford alternators
1.Electrical Character
Excitation system: The main stator supplies power to exciter stator via Automatic Voltage Regulator (AVR).The output of exciter rotor is fed to the main rotor through a three phase full wave rectifier. There are varistors at the both ends of the rectifier for restraining surge voltage and avoiding the impact caused by short circuit or parallel synchronization loss. Exciter stator is equipped with permanent magnetic steel in order to start up the alternator smoothly in any occasion.
2.Windings and electric features
Standard 2/3 pitch windings design can eliminate the triple frequency harmonics on the voltage waveform which is the optimum design for trouble-free supply of non-linear loads.
3.Shaft & key
All generator rotors are dynamically balanced to better than BS6861: Part 1 Grade 2.5 for minimum vibration in operation. Two bearing generators are balanced with a half key.
Material Feature
1. Magnetic alternator---- provide invariable excitation in any situation.
2.100% copper wire---- The material is Essex 800 international standards.
3.Cold rolled silicon----Wugang Brand, 800 Series
Our products are used in different kinds of fields. Such as hotel’s standby power; Mine Generator;Marine generator and so on
Trade Information
Trade Terms | EXW,FOB,CFR,CIF or others |
Port | Shanghai, Ningbo |
Shipment | Ocean or air transportation |
Payment Terms | T/T, L/C |
Supply Capability | 600-1500/month |
Sample Availability | Yes |
Delivery time | 5-20 days, according to order |
Service | OEM,ODM or Customized |
We are ISO 9002,CE, its certified for leadership in quality, environment and safety management systems.
Packaging Detail:
Shipping the products by sea after receiving the order
Using plywood case packaging
Using packaging film to dust
Wuxi Frand Generator Technology Co., Ltd. is engaged in the research, development, design, production,sale and services of brushless alternators and generators. Our factory covers an area of about 5,000 square meters, with more than 30 sets of advanced production equipment. The factory has 5 years experiences of production. Our products are designed in accordance with international standards. We can offer all kinds of engines with famous brands, such as Cummins, Deutz, MTU, Perkins, Volvo, etc.
Now our company has strong technical strength and advanced production equipment. We have a professional team. With rigorous and humane management, we aim to establish a sound sales and service network. We are committed to building famous brands in the field. In the future, we will provide new and old customers with the first-class products and the first-class service.
Our company participate Meddle East Electricity Exhibition in Dubai in April 2013 and 12th China (Shanghai) International Power and Generating Sets Exhibition in February 2013.Our company’s partners are covered in Africa; Europe and Asia. Our products are very popular with customers.
Wuxi Frand Generator Technology Co., Ltd.
Fax: 86-0510-88895688
TEL: 86-0510-88878802
Address:No. 78, Danshan Road, Anzhen Street, Xishan District, Wuxi City China
Q1: Is your business a manufacturer or just a supplier?
A: We are a specialized manufacturer of alternator from Jiangsu, mainly are providing OEM and ODM service for some big brands
Q2: What is the quality of your components?
A: 100% Essex pure copper wire, cold rolled silicon (Wugang Brand, 800 Series)
Q3: Could you also supply spare parts for all alternator for repairs?
A: Of course spare parts will be provided
Q4: Can you provide OEM brand service on product and packaging?
A: Of course we could, we have rich experience in providing OEM service for some brands from all over the world.
Q5: What kind of payment method you could do?
A: PayPal, Western Union, T/T ,L/C are accepted. And welcome to place order to us by Alibaba trade assurance.
