Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice

Quanzhou Tucson Age Security Technology Co., Ltd.
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-1
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-2
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-3
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-4
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-5
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice thumbnail-6
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-1
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-2
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-3
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-4
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-5
Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio Quality Choice photo-6
US$ 110 - 120 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
WOUXUN
Model Number:
KG-UV9D
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name WOUXUN
Model Number KG-UV9D
Type Handheld
Dimensions 124.5*61.5*33.9mm
Frequency Range TX:136-174/400-512MHZ RX:76-108MHZ/108-136MHZ(air ground)
Storage Channel 999
Talk Range 5-10km

Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital  Handheld Two Way Radio

Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio

Product Description

Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital  Handheld Two Way Radia

Technicial Specification:
Frequency Range   Suitable for different countries or areas
   1 TX: 136-174MHZ(FM)   400-512MHZ(FM)
 2 RX: 76-108MHZ(FM)   108-136MHZ(Air ground)
230-250MHZ/350-400MHZ/400-512MHZ/700-985MHZ(FM)
Step2.5K/5KHz/6.25KHz/10KHz/12.5KHz/25KHz/50KHz/100KHz
Channel Number999
Work ModeF2D/F3E
Operating Temperature-20℃~+40℃
Operating Voltage7.4VDC
Battery Capacity2000mAh Li-ion Battery
Antenna Impedance50Ω
Weight490 g
Size124.5X61.5X33.9 (mm)
ReceiverWideNarrow
Adjacent Channel Selectivity≤70dB≤60dB
Inter Modulation≤65dB≤60dB
Spurious Response≤70dB≤70dB
Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~3KHz)
Signal to Noise Ratio≥45dB≥40dB
Audio Distortion≤5%
Audio Power≤500mW
Sensitivity108-136MHz(AM) -106.0dbm SN 13dB
136-180MHz -119.0dbm SINAD 13dB
230-250MHz -116.0dbm SINAD 13dB
350-400MHz -119.0dbm SINAD 13dB
400-512MHz -119.0dbm SINAD 13dB
700-986MHz -96.0dbm SINAD 12dB
TransmitterWideNarrow
Type of Modulation16K F3E11K F3E
Adjacent Channel Power≥70dB≥60dB
Spurious Response≥60dB≥60dB
Audio Response+1~-3dB(0.3~3KHz)+1~-3dB(0.3~3KHz)
Max Frequency Deviation±5KHz±2.5KHz
Frequency Stability±2.5ppm
Audio Distortion≤5%
Output PowerVHF H:5W, M:2W, L:1W
UHF H:4W, M:2W, L:1W



Packaging & Shipping

Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way RadioWalkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital Handheld Two Way Radio

Walkie Talkie 5W Ham FM Transceiver for WOXUN KG UV9D Digital  Handheld Two Way Radia

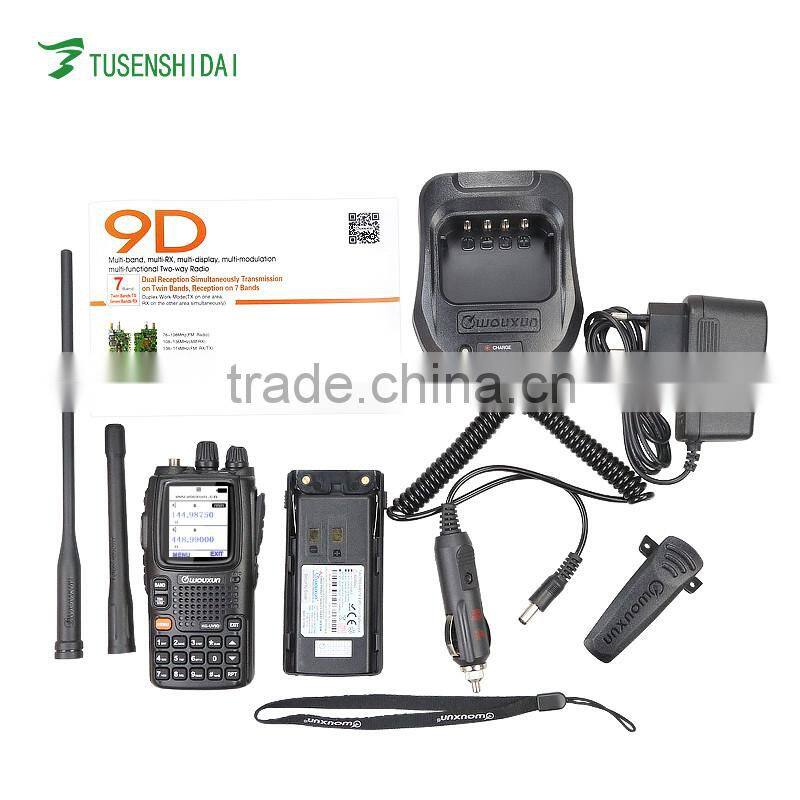

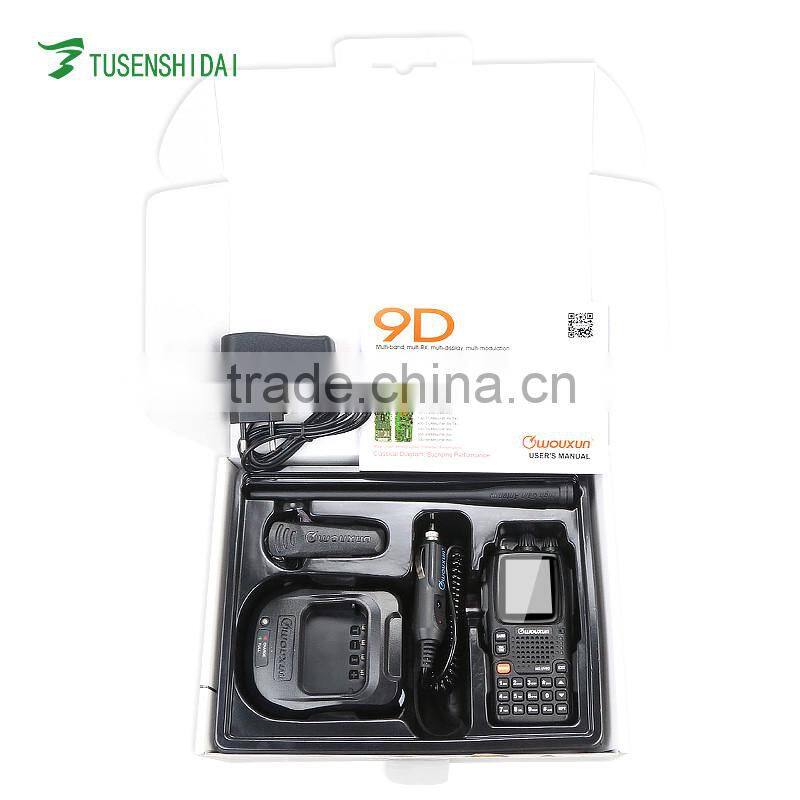

PACKING ITEMS:
1* WouXun KG-UV9D made in china walkie talkie
2* Antanna (short + long)
1* 2000mAh Battery

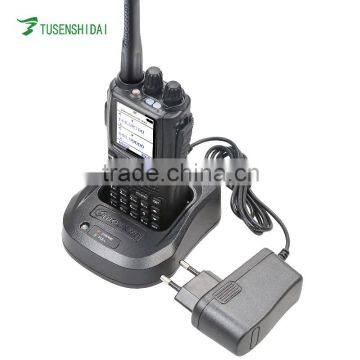

1* Desktop charger
1* Charger
1* Belt CliP
1* Strap
1* Car charger

Our Services

 Shipping terms

1-2days for sample order,3-5days for bulk order

 Customer Service

1.OEM&ODM service offered

2.Sample's fee can be refund after order reached 1000sets.

3.Delivery can be express: DHL,UPS,FedEx,EMS,TNT.

 Warranty

Before delivery, we will check the item's quality strictly one by one. Life-warranty for radio body & accessories, please contact us immediately when you get defective,thanks.

 Payment terms

Payment:T/T,Western Union,escrow below US$1000 accept Paypal payment term(please do Not believe anybody by Email say our band changed,thank you)
