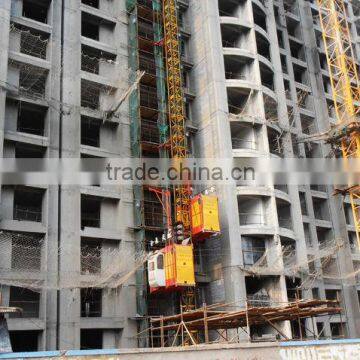

CE Approved Shandong Jiuhong Brand General hoist with twin cage construction material hoist

Specifications

1 advanced technology
2 safety and reliable operation
3 convenient

SS100/100 material hoist is designed by the Beijing Institute of Architectural Engineering, our company strictly according to the standard construction of new production equipment, Engineering College, under the guidance of experts several fine-tuning, structural performance, safety factor has fully met the SS100 / 100 construction hoist Beijing DB standards, and its performance is slightly inferior to SC200/200 construction hoist, is the top product of similar devices, is now on the market, domestic and foreign user acceptance and love.



The standard excerpt seamless with ¢ 76 × 4, via a dedicated CNC boring welded after cutting, precision is higher than the national standard.



Fall Protection System uses SAS-20 Centrifugal anti-fall safety device, triggering high sensitivity, short braking distance, good performance and long service life.



  SC200 construction hoist configured with the same security fence and security gate.

Security video control systems, manipulators can be easily achieved in the console automatically stop layer, floor calls and other operations, more convenient, more accurate, more timely and more secure.



Technical Parameter of SS100/100 Material Hoist
Item		Unit	Parameter
Basic Installation Height		m	24
Attachment Installation Height		m	80
Rated Lifting Capacity		Kg	1000/1000
Lifting Speed		m/min	23.5
Cage Dimension (L*W*H)		m	2.8*1.5*1.9
Sectional Dimension Of Bracket		m	0.85*0.85
Motor Power		Kw	Single-cage 11    Double-cage 22
Steel Rope Model			6*37+1-12-170-Right
Steel Rope Length(Typical)		m	150
Total Weight	Single-cage (at 24m)	Kg	3760
	Double-cage (at 24m)	Kg	5450
