Home > Products > Normal Drilling Machine > Z5032 drilling press

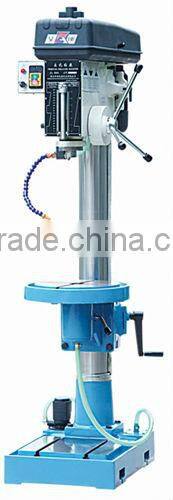

Z5032 drilling press
USD $1,950 - $2,450
/ Set
2 Sets(Min.Order)
- 200 Set / Sets per Month
- shanghai / ningbo
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Drilling Speed | 82-3240rpm | Place of Origin | Zhejiang, China | |
| Brand Name | Aishi | Model Number | Z5032 | |
| Voltage | 220/380V | Power(W) | 1.1Kw | |
| Dimension(L*W*H) | 820x520x1860mm | Weight | 380kgs | |
| Certification | ISO |
Product Description
Specifications
Spindle taper MT4Spindle speed 82-3240rpm
Spindle speed steps 12
Distance spindle-column 235mm
Z-axis travel 150mm
Z5032 drilling press
| MODEL | Z5032 |
| CAPACITY | |
| Drilling capacity(max.) | Ø32mm |
| SPINDLE | |
| Spindle taper | MT4 |
| Spindle speed | 82-3240rpm |
| Spindle speed steps | 12 |
| Distance spindle-column | 235mm |
| SPINDLE HOLEING FIXTURE | |
| Z-axis travel | 150mm |
| Rate of feed/Torque motor Z-axis | Manual |
| COLUMN | |
| Column diameter | Ø120mm |
| TABLE | |
| Table (L×W) | 295×295mm |
| Table load | 100kg |
| Distance spindle-middle table(max.) | 575mm |
| Distance spindle-base table(max.) | 1145mm |
| ELECTRIC SUPPLY | |
| Motor | 1.1kW |
| Speed regulating motor | None |
| Motor coolant pump | 40W |
| DIMENSION AND WEIGHT | |
| Overall dimension (L×W×H) | 820×520×1860mm |
| Packing size (L×W×H) | 650×960×2000mm |
| Net weight/Gross weight | 380kg |
