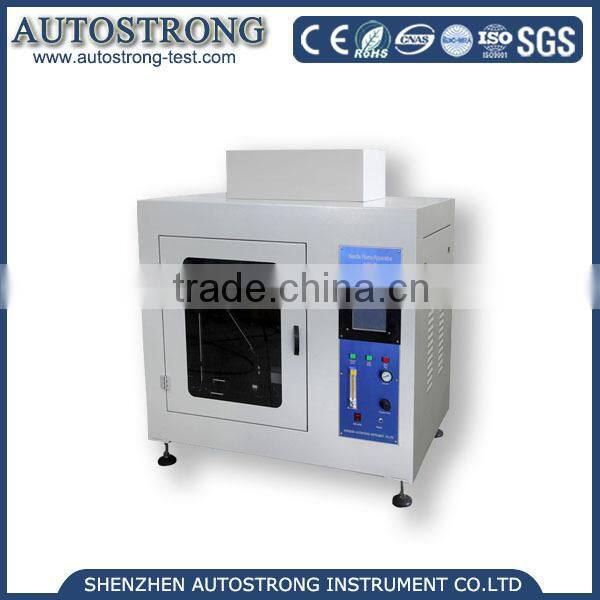

IEC60695 UL746A Flammability Fire Chamber
1. for fire hazard test
2.Shenzhen Manufacturer, OEM offered
3.CE,RoHS,SGS and ISO
The flammability test equipment reference to IEC60695-11-5, GB/T5169.5-2008, GB4706.1-2005.
Used for lighting, low voltage electric appliance, household appliances, electric machine, motor, electric tools, electronic instrument, electrical instrument, electrical connector such as electrical and electronic equipment and parts, components of research, production and quality inspection department, also suitable for insulation materials, engineering plastics with predetermined size (Φ 0.9 mm) needle burner, in 45 °angle burning product,measure the fire risk by product light-off or holde burning time
Technical parameters:
Needle burner | inner hole diameter Φ 0.5mm ± 0.1mm, Diameter,9mm≤Φ, length ≥ 35mm, stainless steel |
Burner angle | 0,°20°, 45° (adjust flame height) |
Thermocouple | Ø0.5mm Type K (Ni/Cr - Ni/Al), armored sheath can withstand temperature-40°C~ 1100°C |
Burning time | 0-999.9 s ± 0.1 s adjustable (usually selected for 30s) |
Hold Burning time | 0-999.9 s ± 0.1 s, automatic recording, manual time-out |
Flame Height | 12mm ± 1mm (with height measurement instruments) |
Flame Gas | butane gas/Butane gas, min. 95% purity (can use bottled lighter gases) |
Temperature Test Range | 0~1000°C |
Flame Temperature Requirements | from 100 °C ± 2 °C liters to 700 °C ± 3 °C time in 23.5 seconds ± 1 seconds |
Standard Copper Block | 4mm±0.01mm, weight.0.58g±0.01g before drilling. Cu-ETP |
Test process | automatic control, independent convulsions |
Chamber | ≥0.5m3 |
Control | Using single chip microcomputer + touch screen control |
Consult standard | GB/T5169.10-2006 , IEC60695-11-5:2000,UL746A |
Power Supply | 800VA ,220V, 48-60Hz |
Display panel language | English(customize available) |
- High qualitty,Long life time and Competitive price
- Best after service:Professional R&D and technical team support,can make OEM & ODM order,and also can provide overall laboratory solutions,and good service.
- Strict quality control,more than 24hours befroe shipping and with 1year warrant
- Short leadtime and fast delivery
- With CE,ROHs,SGS and ISO certificates
If you have any questions or you need more details ,kindly contact me by trademanager or email for further discussion,thank you for your visiting.
