EN/IEC60112 voltage and leakage current tester
- 1000 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
-
EN/IEC60695/UL94 laboratory equipment Horizontal and Vertical Flammability Tester
-
EN/IEC60695/UL94 laboratory equipment toy flammablity tester
-
EN/IEC60695/UL94 laboratory equipment material fire testing instrument
-
EN/IEC60695 laboratory equipment testing instrument
-
IEC60112 Flammability Testing Chamber Tracking Index Tester
-
IEC60695 Flammibility testing chamber needle flame tester
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | AUTOSTRONG | Model Number: | AUTO-LDA |
| Power: | Electronic | Usage: | Other, Auto Testing Machine, Auto Testing Machine, Auto Testing Machine |
Packaging Details
with strong wooden box
Product Description
Electronic Safety Wire Calbe Test
IEC60112 voltage and leakage current tester
Electronic Safety Wire Calbe Test IEC60112 Tracking Index test apparatus
1.Reference:
This Tracking Index Apparatus is strictly designed and manufactured in accordance
with IEC60112,IEC60335-1, IEC60598-1 and GB4207.
2.Application:
This Tracking apparatus is a fully automatic instrument contained in its own cabinet to maximize the safety of the operator and mainly used test the resistance Tracking Performance of solid electrical insulation materials when they are exposing in electric affect impurity water situation.Mainly used for determination PTI and CTI items.
Inside the well lit cabinet, a test specimen is placed on a glass plate and two platinum electrodes are lowered on the top surface.
A gauge block is supplied with the instrument to ensure the electrodes have the proper distance between them. The table height is easily adjustable to ensure the proper angle of the electrodes and height of drops. The rest of the test is controlled from outside the test chamber with the door closed.
The voltage,limiting current, drip rate and number of drips are all set on the control panel. An operator should observe the test to see if a flame ignites. The instrument sounds an alarm if there is a tracking failure of at least two seconds.
3.Technical parameters:

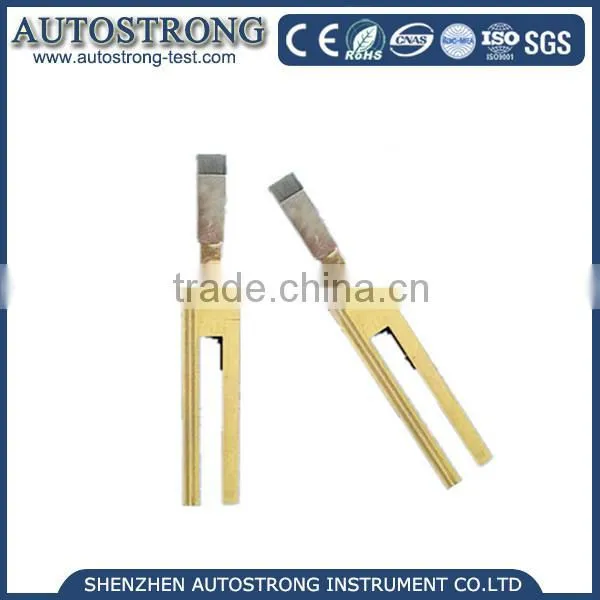

Electrode Materials | The electrode caput of brass-platinum |
Electrode Distance | 4.0mm±0.1mm,60±5°angle |
Test Voltage | 100~600V adjustable, displayed value: r.m.s |
Test Current
| Current limiting 1A±0.1A adjustable, |
displayed value:r.m.s, tolerance of 1.5% | |
Electrode Dimensions
| width: 5mm±0.1mm, |
thickness: 2mm±0.1mm, | |
length >12mm, | |
end chisel-edge angle : 30°±2°,platinum. | |
Electrode Pressure | 1.00N±0.05N |
Dripping Nozzle | outer diameter: 0.9mm~1.2mm for solution A |
0.9mm~3.45mm for solution B | |
Dripping Interval | 0-99 seconds (adjustable),the time for 44-55/1cm3(adjustable) drops to fall on the specimen shall be (30±2)min. |
Heigh Drops | 30-40mm±5mm(adjustable) |
Control | Using single chip microcomputer + touch screen control |
Chamber volume | >0.5m³, black interior |
Outer Dimensions | W*D*H=1100mm*700mm*1300mm |
Power Supply | 800VA ,220V, 48-60Hz |
Display panel language | Chinese + English (adjustable) |
ng index appar
4.Packaging & shipping:
5.Company information
6.Cerfiticates details:
7.WorkShop details:
8.Our Group:
Contact Us Now or send us inquiry below !
Ms Wenny
******************************
Fax: 0086 755 26978981
Tel: 0086 755 27696922
E-mail:
web: /
http://www.hkauto.en.china.cn/
Thanks for your precious time for reading, have a nice day my friend !
Company Profile
AUTOSTRONG is located 20 minutes of Shen zhen international airport, is a professional product safety testing equipmentmanufacturer .We offer a wide range of product safety test equipments,many of them are in stock.Our headquarter in Kowloon Hong Kong and branch factory in Shenzhen. Shenzhen Branch factory besides 107 highway with very convenient transportation.
AUTOSTRONG is a reputed manufacturer,which has engaged in Research & Development and Manufacture test equipments for many years. It is one of the listed suppliers with IECEE (International Electro technical Commission) and have gained ISO9001:2008 Certification.
We have a Professional and International Team with more than 60 engineers form Germany, Hong Kong and China. We focus on provide the highest grade products and services to our clients. With almost ten years development, we are being the fastest growing manufacturer supplier of test equipments for many industrial and manufacturing scenarios.
All products manufactured are strictly in accordance with various EN,IEC,CE, UL,VDE, VS, JIS, ISO,CEE,BS,FMV,GB and other similar international standards.
Main Products include: Glow Wire Tester, Needle Flame Tester, Horizontal and Vertical Burning Tester, Tracking Index Tester, Textile Burning Tester, Protective Clothing Thermal Conductivity Tester, Automotive Interior Combustion Tester, Melt Dripping Tester, Building Materials Flammability Tester, Friction Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series ,Environmental Tester,Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.
We have established stable cooperation relationships with many famous international company,laboratory and authorized third party test house. Such as: WAZAU, PTL, Bureau Veritas, TUV Rheinland,TUV Product Service,SGS, CSA international, PSE Japan, UL Laboratry Sweden,Met Laboratory Inc, LG Korea, Samsung Electric Appliances Inc. etc.
