Product name: 4 cubic meter mining tram made in china
Item | unit | main parameter | ||||||||||||
Model No. |
| YDCC2-7 | YDCC2-6 | YDCC4-9 | YDCC4-7 | YDCC4-6 | YDCC6-9 | YDCC6-7 | YDCC10-9 | YDCC10-7 | ||||
volume | M³ | 2 | 4 | 6 | 10 | |||||||||
load capacity | T | 5 | 10 | 15 | 25 | |||||||||
gauge | mm | 762 | 600 | 900 | 762 | 600 | 900 | 762 | 900 | 762 | ||||
wheel base | mm | 1000 | 1300 | 2200(800) | 2200(900) | |||||||||
wheel diameter | mm | 400 | 450 | 400 | 450 | |||||||||
Coupling form |
| Bolt link type | Bolt link type | Bolt link type | Bolt link type | |||||||||
traction height | mm | 425 | 450 | 520 | 780 | |||||||||
Unloading point | (°) | ≥50 | ≥50 | ≥50 | ≥50 | |||||||||
dimension | Length | mm | 3210 | 3657 | 5400 | 5770 | ||||||||
Width | mm | 1420 | 1450 | 1845 | 2057 | |||||||||
Height | mm | 1280 | 1700 | 1690 | 2066 | |||||||||
self weight | kg | 2380 | 3682 | 6653 | 11580 | |||||||||
traction | kn | 60 | 60 | 60 | 60 | |||||||||
minimum turning radius | m | 20 | 20 | 20 | 20 | |||||||||

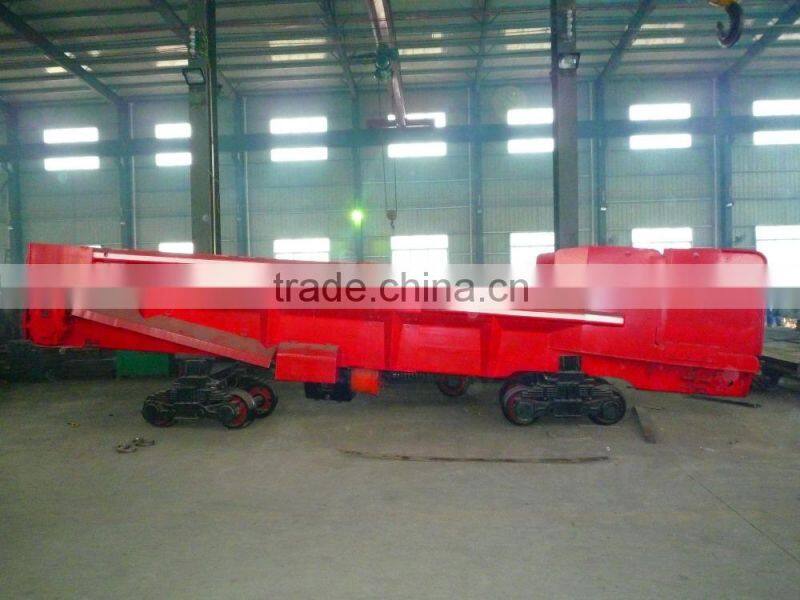

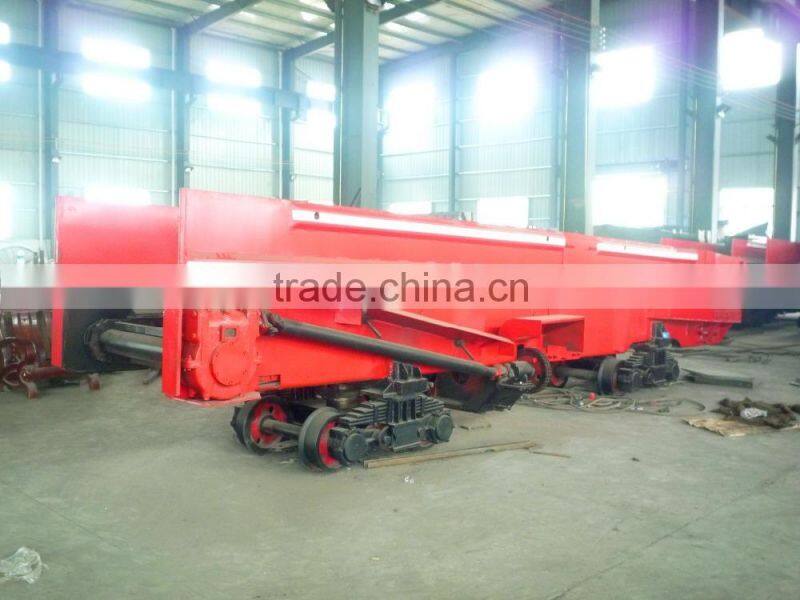

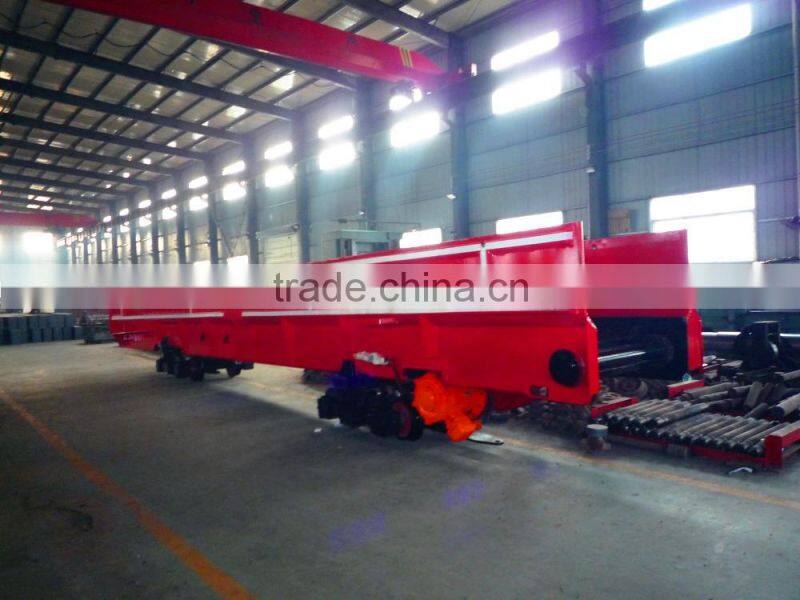

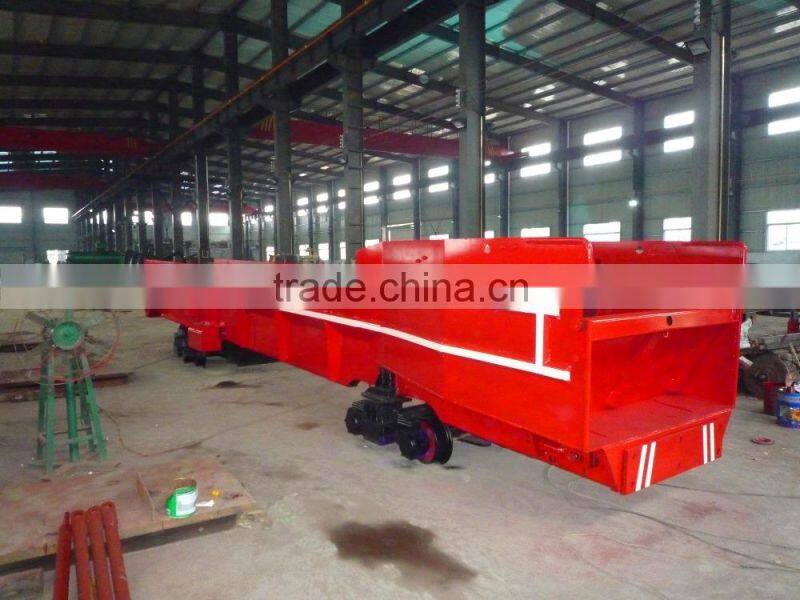

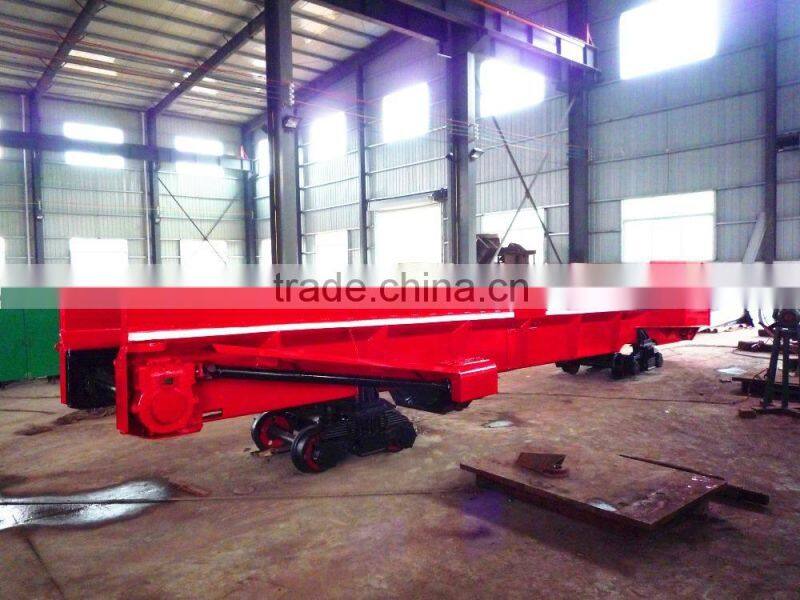

Product photos:
Quality Policy: Enterprise Spirit:
Quality First ,Customer First Honesty, Devotion, Striving, and development
Faith is root, Profession is the first WANFENG MINING MACHINERY WORTH YOUR CHOICE!
Welcome to contact us:
