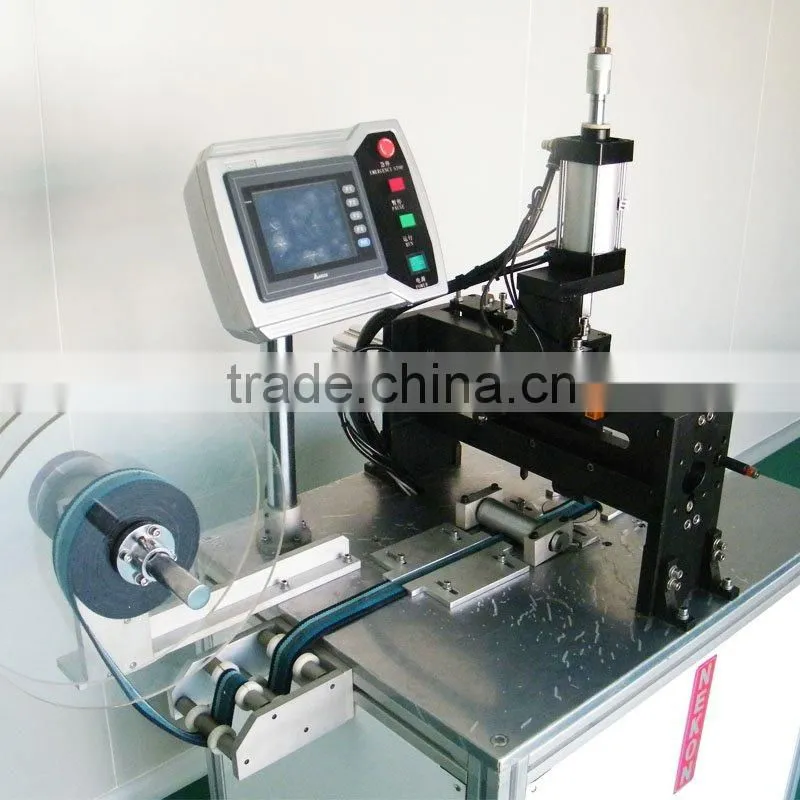

china made ultrasonic punching and welding Machine

wooden case

Specifications

ultrasonic punching and welding Machine
1.20-80 pcs/min
2.Multi-position working
3.Auto counting
4.2~3 machines/worker

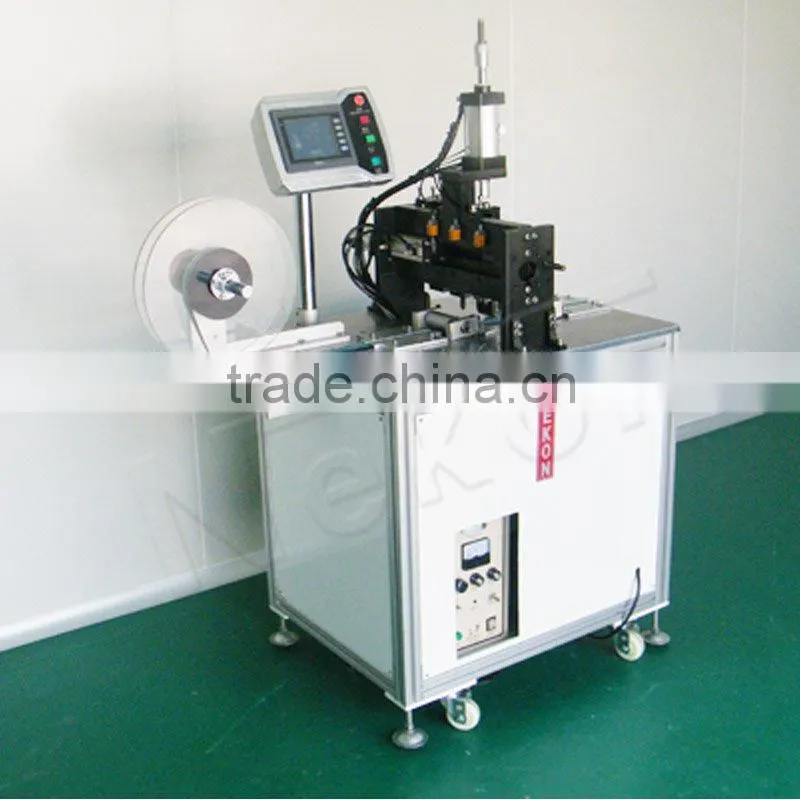

ultrasonic punching and welding Machine

(NK-CK2022)





Professional Nonwoven Products Machinery Manufacturer



ultrasonic punching and welding Machine is a multi-functional machine which can cut and punch on one ribbon.



ultrasonic punching and welding Machine Technical Data:

Model: NK-CK2022

Supply: AC220V

Power: 2000W

Frequency: 20KHZ

Pressure: 0.6-0.8Mps

Capacity: 20~80 pcs/min

Weight: 125kg

Dimension: 1300mm×750mm×1400mm (L x W x H)



ultrasonic punching and welding Machine Features & Functions:

1. Japan imported NTK transducers with strong output power and stable performance;

2. Double column structure which keeps the pressure in level and fixed to promise a more steady working performance;

3. Low noise with a frequency of 20KHz;

4. PLC control, easy and visualized operation;

5. Free adjustable length and speed from 1~9999mm;

6. Rotary cutters rest; adjustable cutters in free direction;

7. Easy cutting mould changing and fixing;

8. High precision, smart and reasonable design, also with beautiful appearance;



ultrasonic punching and welding Machine Working Features:

Efficient—cutting and punching continuously

Visualized Operation—PLC touch screen; real- time display and auto count

High Quality--- Auto sealing, without burned, black or loose edge;

Economical & Practical –auto working, labor saving

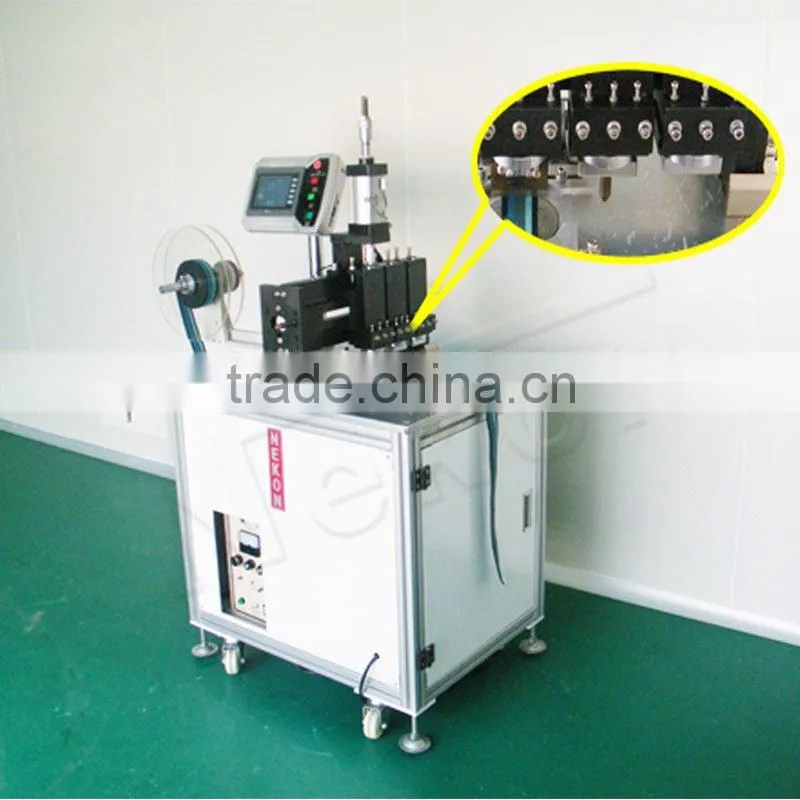

ultrasonic punching and welding Machine Details:



1. Rotary type formwork design, angle adjustable randomly.



2. PLC touch screen and ultrasonic generator visualized, easy to adjust.

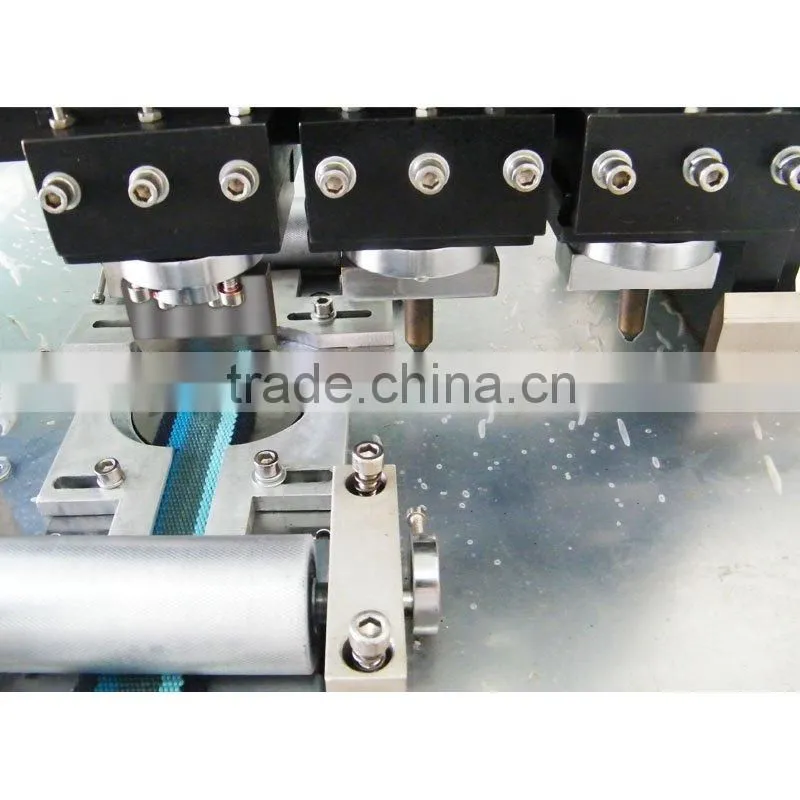

3. Cutter sliding type working, better continuity.



4. Stepping motor auto feeding, convenience and speedy.

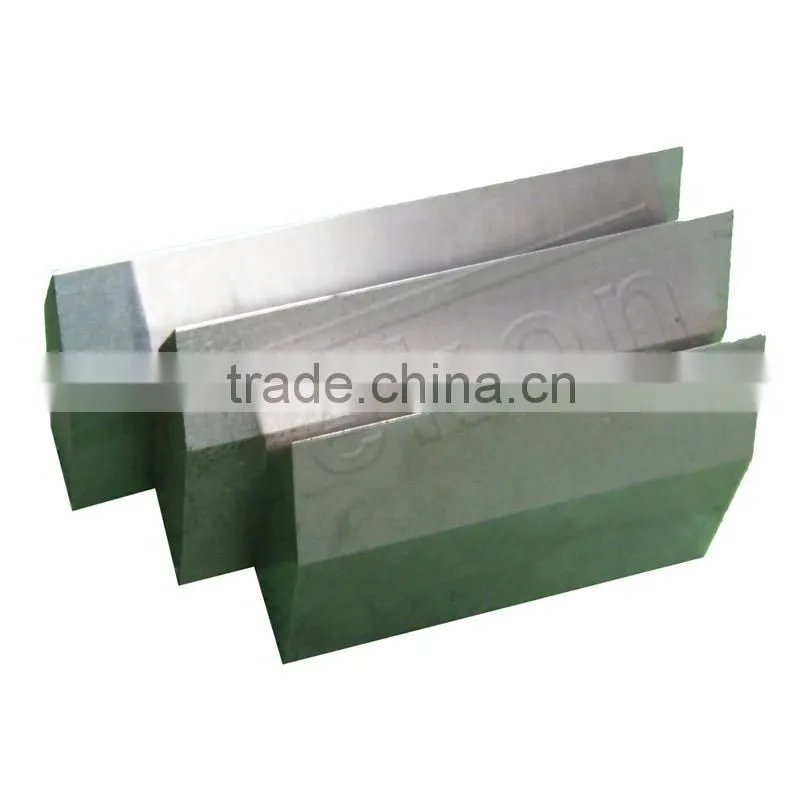

Straight cutter



5. Diversified mould choices.



ultrasonic punching and welding Machine Applications:

 Ultrasonic cutting and punching machine is be widely used to industries such as garments, caps and shoes manufacturing, artwork ornaments and packages etc.

 Suitable for cutting and punching of ribbon, fabric taps/tape, woven belts, Velcro, rope, brand, braid, riband, mesh belt, pull bow, webbing and so on.

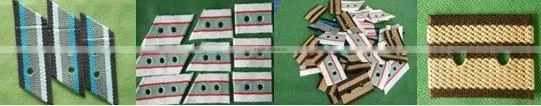

ultrasonic punching and welding Machine Finished Samples:











Factory Information:

Dongguan City South Nekon ultrasonic Machinery Co. Ltd, owned by South Nekon group, is a well-known manufacturer which specialized in research & development, producing and sales of ultrasonic machinery. And the Ultrasonic Cutting& Slitting Department is mainly for auto ultrasonic ribbon cutting machines, cutting machines, punching and cutting machines, elastic band cutting machines, ultrasonic slitting machines, trade mark slitting machines, semi-auto cutting machines and so on; it can also make special cutting & slitting machines according to customers’ special requirements. We will offer you high quality products with strength of our company and R&D team, well after-sales service which will assure your using of our machines.
