Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > Full HD 1080P Sony Sensor IR Dome HD IP Camera, hd Video Capture

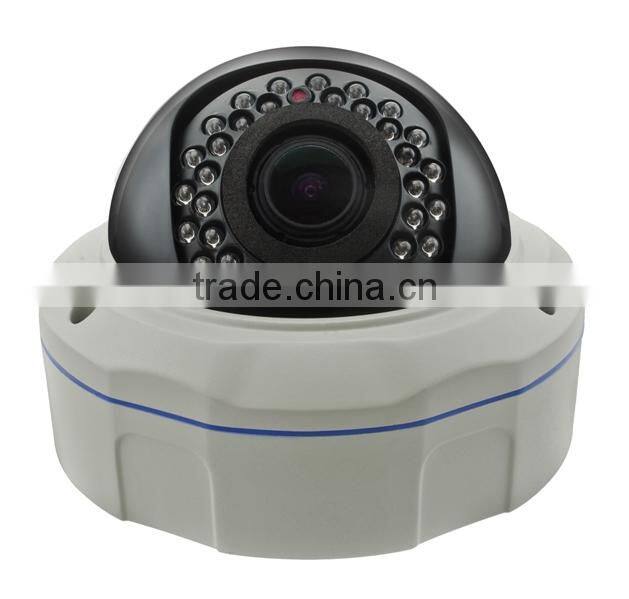

Full HD 1080P Sony Sensor IR Dome HD IP Camera, hd Video Capture

Shenzhen Power Leader Video Technology Co., Ltd.

Full HD 1080P Sony Sensor IR Dome HD IP Camera, hd Video Capture photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

PLV

Model Number:

PLV-SC816

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name PLV

Model Number PLV-SC816

Type Digital Camera

Style Dome Camera

Sensor CMOS

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

1080P Resolution,1920*1080
4/6/8/12/16mm CS Fixed-Focal Lens or 2.8~12mm Manul Vari-Focal LensOptional
1/2.8''CMOS ImageSensor

Full HD 1080P Sony Sensor IR Dome HD IP Camera, hd video capture

Product Description

Key Features:

Up to 2 Megapixel (1920*1080) resolution
HD real time video
DWDR & 3D DNR
True Day/Night with IR-CUT
H.264 High Profile compression algorithm
Main stream and Sub-stream encoding
Support ONVIF Protocol
Provide free Client Program, support mobile monitoring(iPhone, Android, etc) and network browsers

Hd Video Capture CCTV Camera Pictures:

Hd Video Capture CCTV Camera Specificaitons:

Camera
Image Device	1/2.8" Progressive CMOS	Shutter Time	1/25s~1/100,000s
Lens	4/6/8/12mm Mega Fixed-Focal Lens or Manual Vari-Focal Lens	Lens Mount	CS
Day&Night	ICR	WDR	Digital WDR
Minimum Illumination	Color:0.1Lux F1.2,B&W:0 Lux(With IR)	DNR	3D DNR
Auto Iris	Support
Video
Video Compression	H.264	H.264 Profile	High Profile
Bit Rate	Main Stream:0.1Mbps ~8Mbps Sub-stream:32Kbps ~512Kbps	Resolution	Main:19201080 or1280720 Sub:704*576
Frame Rate	50Hz:25fps (1920 × 1080),60Hz:30fps (1920 × 1080)
Audio
Audio Compression	G.711	Talk Back	Support
Network
Protocols	TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, UPNP
Alarm Trigger	Motion detection, Video Analysis, Shelter	Onvif Protocol	support
Remote Access	UC, IE, Mobile Phone	3G Module	Access by USB interface
WIFI	Access by USB interface	WIFI Encryption	WEP,WPA,WPA2(Optional)
Interface
Network Interface	1 RJ45 10M/100M Ethernet Port	Video Out	1 CVBS video signal
Audio In	1 channel Audio input	Audio Out	1 channel Linear output
Alarm In	1 channel	Alarm Out	1 channel
Storage Interface	1 USB Disk and 1 TF/SD interface	Serial Port	1 RS-422/485, Support PTZ control
General
Operation Temperature	-10°C~ +60°C	Working Humidity	0% - 90%
Water-proof Casing	IP66	Adapter Requirement	DC12V±10%
Power Consumption	6.5W MAX(8.5W When IR turn on)	EXIR range	None or 30 Meters optional
Dimensions(mm)		Weight

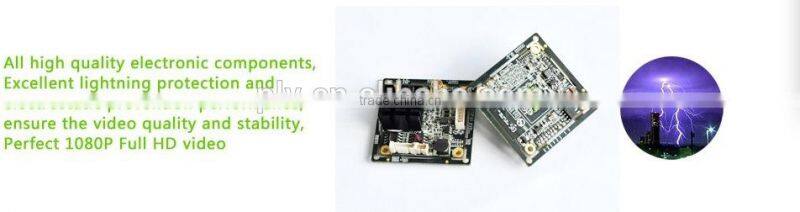

Hd Video Capture CCTV Camera Sensor:
High Performance Panasonic image sensor and ISP chip

How to select lens?

Hd Video Capture CCTV Camera Applications:

Widely applied in Banking, Super Market, Telecommunication, Government, School, Airport, Factory, Hotel, Restaurant, Bus/train Station, Public Square, Building, Store, Office, House and other fields that need HD video surveillance

Packaging & Shipping

1.The package will be shipped from China via Express air. The tracking number will E-mail to you when the item sent, usually it takes 4~5 working days to arrive.

2.For fast and safe delivery,we can not deliver to P.O. Box number .Please provide physical address and contact phone number.
3.Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer`s responsibility with your country`s customs office to estimate what these additional costs will be prior to buying.

Our Services

We have rich OEM experience. If you are our customers, you will be offered:

1. Free repair within one year after the shipment of products from us.
2. Replacement within 30 days after the shipment of products from us due to products' problems.
3. We can print your logo and stick your model No.on the cameras.
4. We have long cooperation with many shipping companies and our export volume is large. The shipping companies can offer us good discounts.
5. Professional technician supports. We have a good after-sales service team. They can solve your problems in time.
6.All goods will be inspected and tested before shipment.
7Customer`s satisfactory is most important to us.If you have any problem or questions regarding our transaction.Please contact us by Trademanager or Email.It will be responded within 24 hours.
