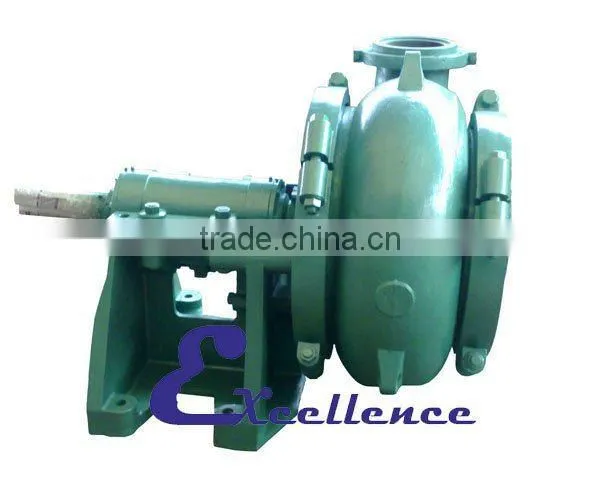

ES-6E Sand And Gravel Slurry pump

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 3000 Piece / Pieces per Month
Port Tianjin
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	Excellence
Model Number	ES-6E	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Other, slurry pumping
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, decided by users	Pressure	Other, Standard
Application	Other, Dredging,Mining, Metallurgy, Coal Washery, Power Plant

Product Description

Excellence Pump Industry Co., Ltd is a professional slurry pump manufacturer in China. With the accumulation and development of years, we have formed a complete system of slurry pump design, selection, application and maintenance.

Introduction:

Construction of this gravel pump is of single casing connected by means of clamp bands and wide wetpassage. The wetparts are made of Nihard and high-chrome wearresistant alloys. The discharge direction of gravel pump can be oriented in any direction of 360°. This type of pump owns the advantages of easy installation, good performance of NPSH and wear-resistance.

Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries, which contain too big solids, to be pumped by common pumps.

Application:

They are suitable for delivering slurries in mining, explosive sludge in metal melting, dredging in dredger and course of rivers, and other fields.

Model Explanation and Performance Chart:

ES-6E

E: Excellence Brand

S: Sand

6: Discharge size (inch)

E: Frame type with maximum power

Pump Model	ES Series Gravel Pump							Impeller Dia.
	Allowable Max.Power	Clear Water Performance
		Capacity Q		Head H(m)	Speed n(r/min)	Eff. η%	NPSH (m)
		m³/h	l/s	Head H(m)	Speed n(r/min)	Eff. η%	NPSH (m)
ES-4D	60	36-250	10-70	5-52	600-1400	58	2.5-3.5	378
ES-6E	120	126-576	35-160	6-45	800-1400	60	3-4.5	378
ES-8F	560	216-936	60-260	8-52	500-1000	65	3-7.5	533
ESG-8F	560	180-1440	50-400	24-80	500-950	72	2.5-5	711
ES-10F	600	360-1440	100-400	10-60	400-850	65	1.5-4.5	667
ESG-10G	1200	288-2808	80-780	16-80	350-700	73	2-10	950
ES-12G	1200	576-3024	160-840	8-70	300-700	68	2-8	864
ES-12F	600	720-3600	200-1000	18-44	300-500	70	3-9	1016
ESG-14G	1200	324-3600	90-1000	26-70	300-500	72	3-6	1270
ESG-16G	1200	720-4320	200-1200	12-48	250-500	72	3-6	1067
ES-18G	1200	1080-5400	300-1500	18-65	200-400	68	3-6	1270
