brand new Sumitomo TYPE-81C fusion splicer & USA COMWAY C10 splicing machine in stock

Name: brand new Sumitomo TYPE-81C fusion splicer & USA COMWAY C10 splicing machine in stock
Brand: Sumitomo
Availability: InStock

FOB Price

USD $4,900 - $5,300 / Unit

1 Unit(Min.Order)

Supply Ability 10 Unit / Units per Month
Port hongkong
Payment Terms:Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Japan

Brand Name:

Sumitomo

Model Number:

TYPE-81C

Packaging Details

standard packing

Product Description

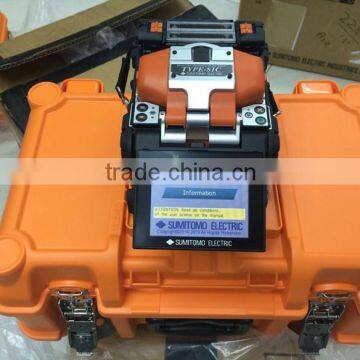

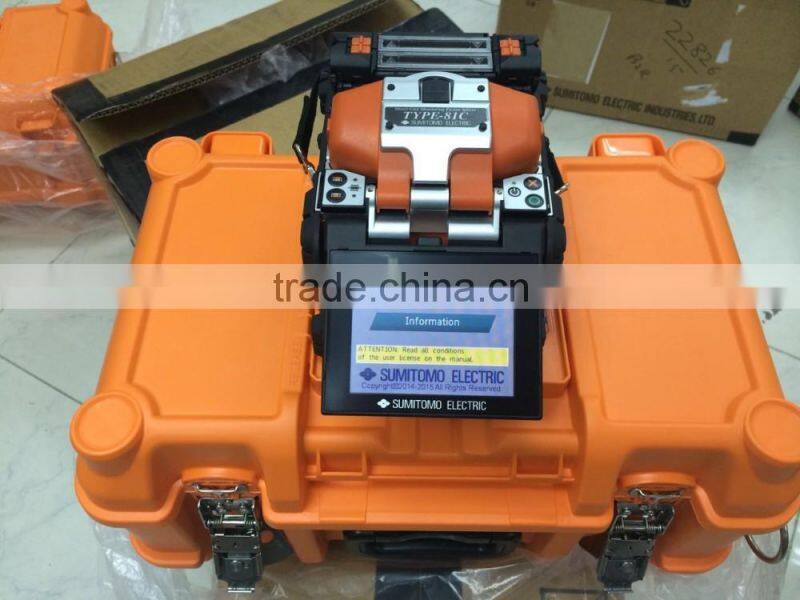

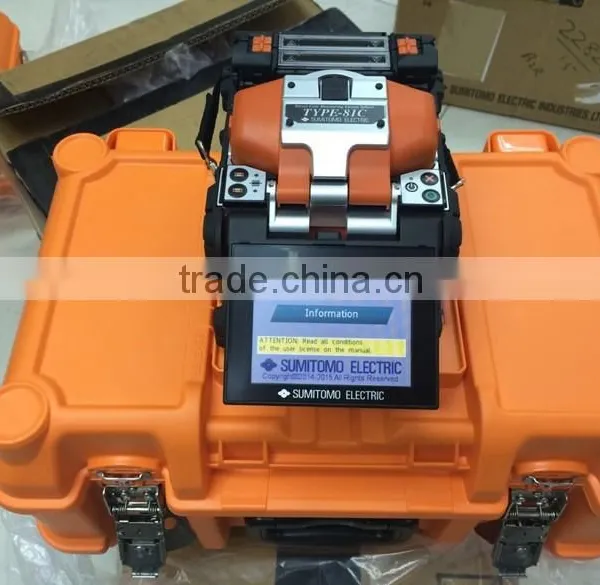

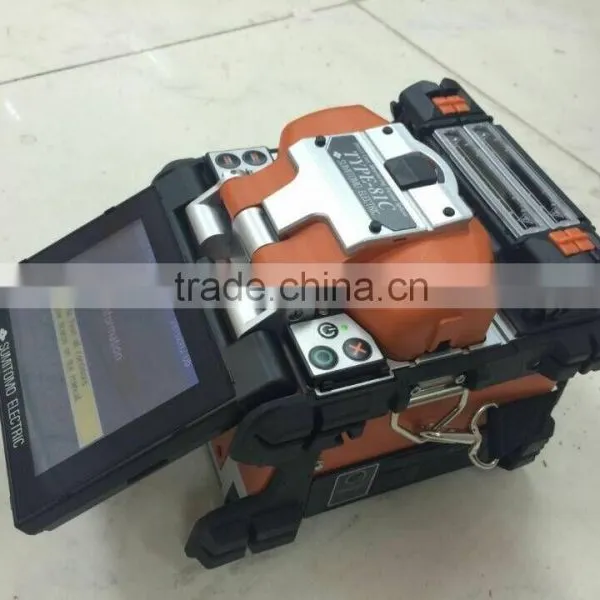

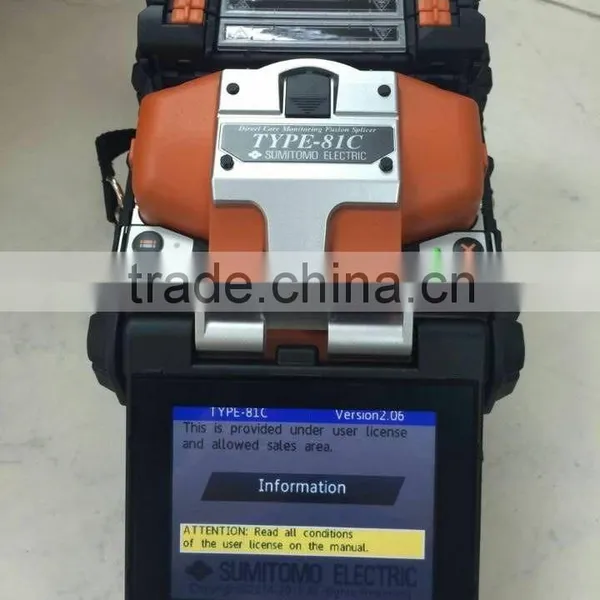

brand new Sumitomo TYPE-81C fusion splicer & splicing machine in stock

1.Sumitomo Single core Splicing machine Type-81C Fusion Splicer
2.ENGLISH languages
3.splicing in every enviroment

Features :

Downsized by 43% from conventional model
2.1kg weight with battery
Ultra fast splicing(7sec.)
Ultra fast heating(28sec.)
G.657 fiber auto splicing function
IP52 rating and 76cm drop on 5 faces
Automatic arc calibration
Touch screen operation
Universal clamp for 250µm,900µm tight and loose buffer fiber
User selectable heater clamp operation
Support bi-directional splicing operation
Equipped with onboard training vedio
Upgrades software via internet

Product name		TYPE-81C
Optical fiber requirements	Material	Silica glass
	Profile types	SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF
	Fiber diameter	Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1,000μm
	Applicable fiber or cable size	up to ø1,000μm	Drop cable (2.0×3.1mm) Indoor cable (2.0×2.0mm)
	Cleave length	5~16mm	10mm
Standard performance	Splice loss (typical) *1	SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB
	Splicing cycle time (typical)	7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode)
	Heating cycle time (typical)	28sec.
	Splice & Heat cycles *2	Approx.200
	Fiber view & magnification	Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view
Programs	Splicing programs	Max.300
	Heating programs	Max.100
Functions	Loss estimation	Provided
	Splice image capture/ Splice data storage	64 images/10,000 splice data
	Proof test	1.96N (200gf)
	Attenuation splicing	0.1dB to 15dB in 0.1dB increments
	Universal clamps for 250μm, 900μm tight & loose buffer fiber	Provided
	Reversible coating clamps	Provided
	Dual automatic independent heaters	Provided (US patent 7,412,146)
	User-selectable heater clamp operation	Provided
	Onboard user training video	Provided
	Automatic arc calibration	Automatically compensates for environmental condition changes
	Arc test	Provided
	Display of remaining Splice & Heat cycles	Provided (Battery mode)
	Remote interactive maintenance	Provided
Size/Weight	Size	120(W)×154(D)×130(H)mm (without anti-shock rubber)
	Weight	1.8kg (without battery), 2.1kg (with battery)
	Monitor	4.1" touch screen color LCD display
Terminals	DC output	DC12V (for JR-6)
	USB port	USB 2.0 (mini-Btype)
	Storage media	SD/SDHC memory card
Power supply	AC input	100~240V, 50/60Hz (ADC-1430)
	DC input	10~15V
	Battery module	Li-ion 11.1V, 4,600mAh (BU-11)
Operating condition	Altitude:0~6,000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s
Storage condition	Temperature: -40~+80°C, Humidity: 0~95% (non-condensing), Battery: -20~+30°C (long term)
Electrode life	3,000 arc discharges *3

*1:When the fibers used are identical to Sumitomo's fibers.
*2:Splice & Heat cycles may vary depending on the battery status and the operating environment.
*3:Electrode life may vary depending on the operating environment.

Environmental Durability*

Shock resistance	Drop from 76cm on 5 faces (excluding top face)
Water resistance	Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º)

Dust resistance	Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below)

*Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage.

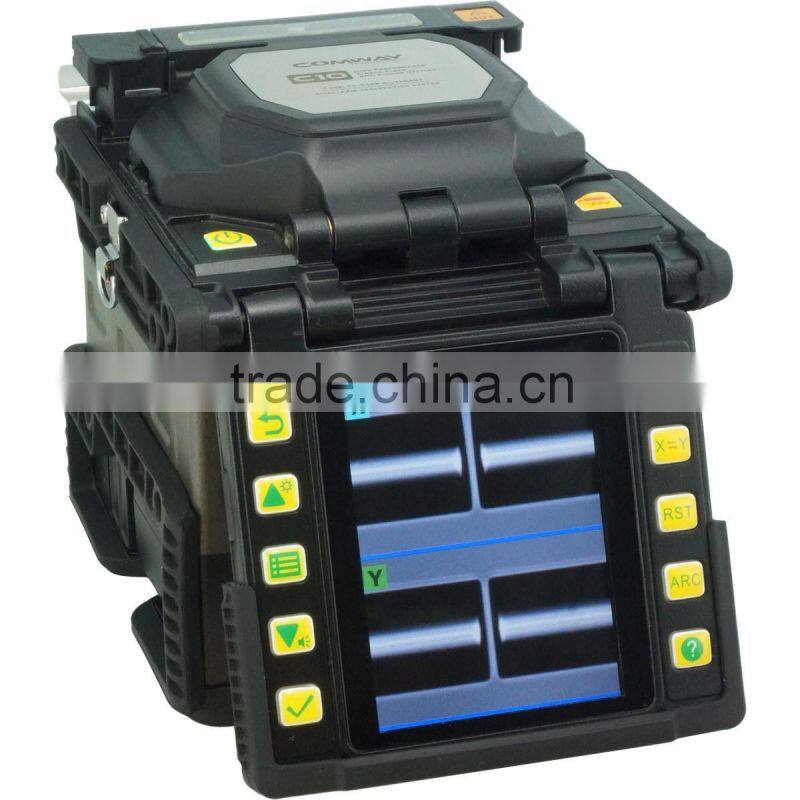

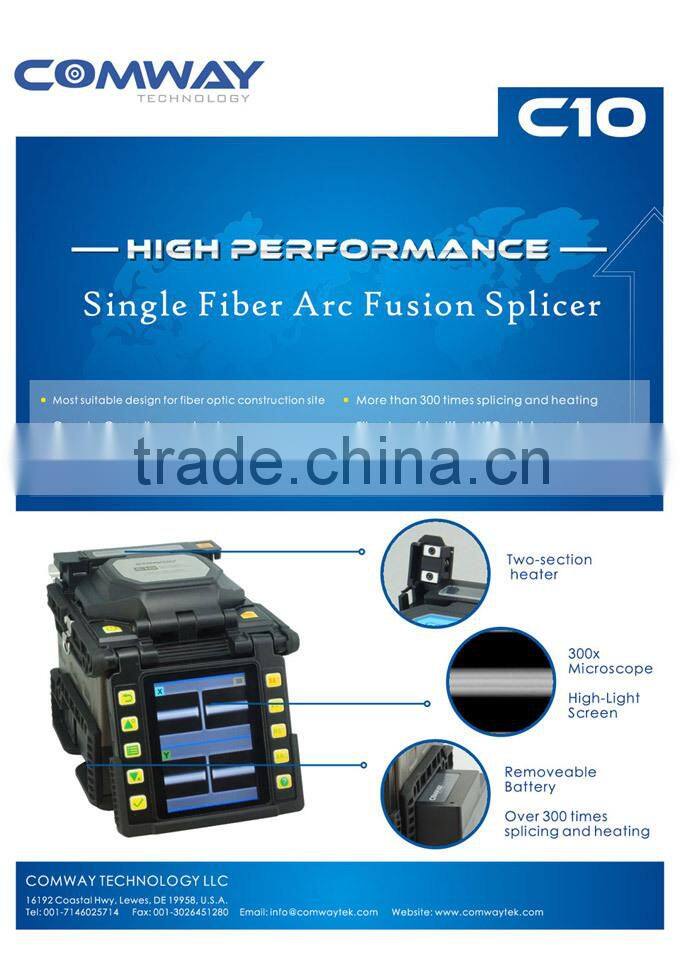

USA Comway Fusion Splicer C10 is equal to Fujikura FSM-60S and better than Sumitomo Type-81C
1's bootup time
6's splicing time

USA Comway Fusion Splicer C10 with best price!

Product Description

*Core to Core alignment system

*  Most suitable design for FTTx, LAN, backbone, factories, long-haul installations
*  1 sec. bootup time, 6 sec. splicing time
* Enhanced Outdoor Color screen display
*  Long life battery with 7800mAh high capacity battery, more than 300 times splices and heats
* Shock resistance: 95cm drop on 5 faces
*  Easy to change electrodes and fiber holder
* Auto-start shrink sleeve oven feature
*  Easy maintenance - Easy electrode replacement /mirror free alignment System
* Fast and easy to use, no need to study.
* Easy Software upgrade via the internet
*  High speed USB Port. Support remote interactive maintenace.Using PC to connect to maintenance center
* Splicer is compatible with the Seikoh Giken and Diamond Spliceon- connector (SOC)
* CE, RoHS compliant

Size & Weight	D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment	6 motors core alignment
Fiber type	SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode	Single fiber
Fiber diameter	Cladding diameter 80~150µm, coating 100~1000µm
Cleave length	250µm cladding diameter 8~16mm, over 250µm cladding diameter 16mm
Splicing programs	Max. 100
Splicing cycle time	6 sec. SM-SM Fast program, 12 sec. AUTO program
Heating programs	Max. 30
Heating cycle time	Adjustable, 25 sec. typical
Splice protector	10 ~ 60mm
Splice image capture	Max. 30
Splice data storage	Max. 3000
Splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss	>>60dB
Loss estination	Provided
Operation condition	Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C, Wind velocity up to 15m/s
Storage condition	Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension	1.96~2.25N
Fiber view	Two cameras observation, 4.1 inch color screen
Fiber magnification	300x fo X or Y single axis view, 180x for both X&Y dual axis view
Port	High speed USB, used for PC software connection and firmware upgrade
Electrode life	3500 arc discharges
Power supply	AC100-240V, 50/60Hz
Battery module	7800mAh High capacity battery, more than 300 times splicing and heating

Packaging & Shipping

Standard Packing. Includes:

1. C10 Main unit

2. High capacity battery

3. AC adapter

4. Extra electrodes

5. Cooling tray

6. AC adapter cable

7. DC adapter cable

8. USB cable

9. Hand strap

10. Shoulder strap

11. Hard Carrying case

We can ship to worldwide. Shipping cost around US$120-US$200 to worldwide from China vis UPS, FedEx, DHL and take 2-3 workingd days.
