Fujikura LIVE FIBER DETECTOR FID-30R/31R & EXFO LFD-250B

Features:

• World class signal sensitivity
• Trigger lock, positive stop for optimum detection
• 2.4” color touchscreen with backlight

Applications:

• Maintenance of fiber optic networks
• Troubleshooting network issues
• Identification of live fibers or trace fibers

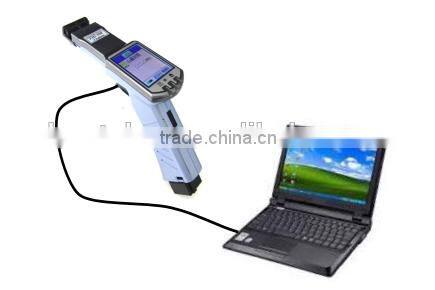

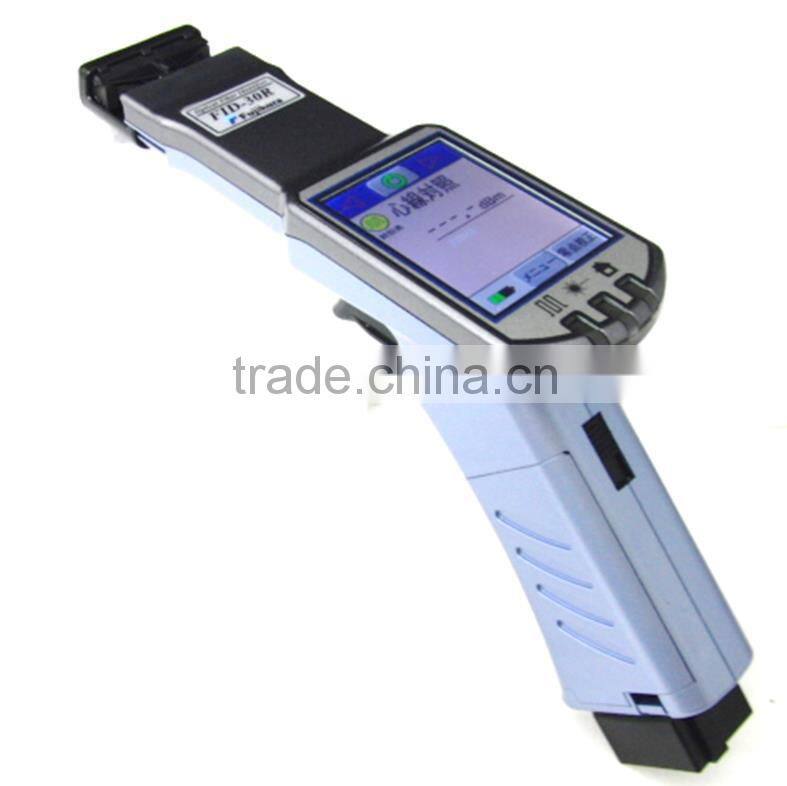

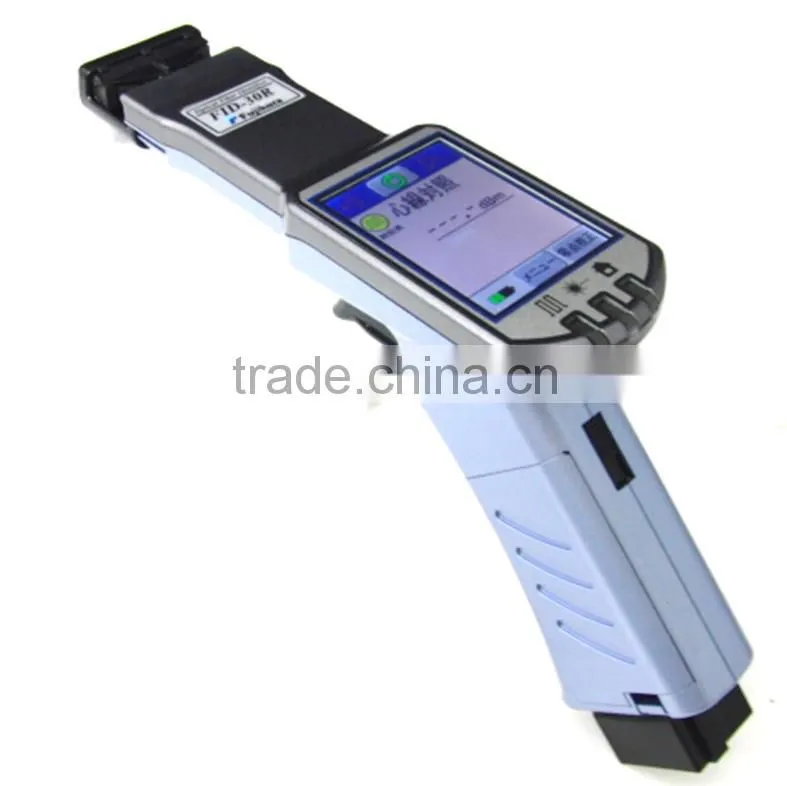

FID-30R and FID-31R are easy to use tools that determine if a fiber is live, the transmission direction and the relative core power on standard and bend-insensitive single-mode fibers. Its positive stop plunger mechanism provides the right pressure to assure proper detection while keeping loss to a minimum. The design assures traffic will not be interrupted and fibers will not be damaged. The FID-30R and FID-31R fiber identifier eliminates the need to access the optical fiber at a connection or splice point eliminating the possibility of interrupting service to a valued customer. FID-30R and FID-31R provides an integrated optical power meter for verification of power levels during installation or troubleshooting activities. The universal head of these OFI’s eliminates the need to change adapter heads for jacketed, coated or ribbon fibers, making them extremely easy to use in the field. The touchscreen features provide simple to follow setup and clear to read results.

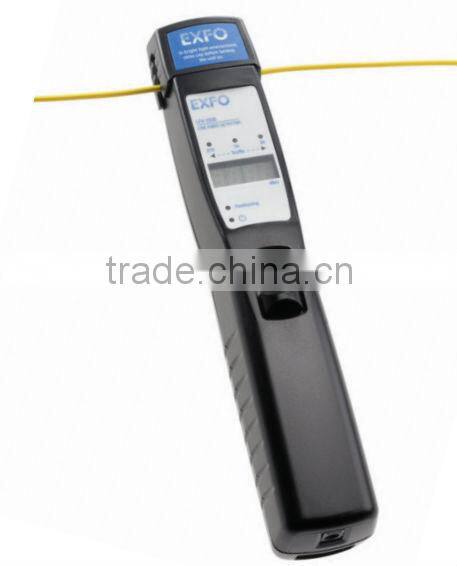

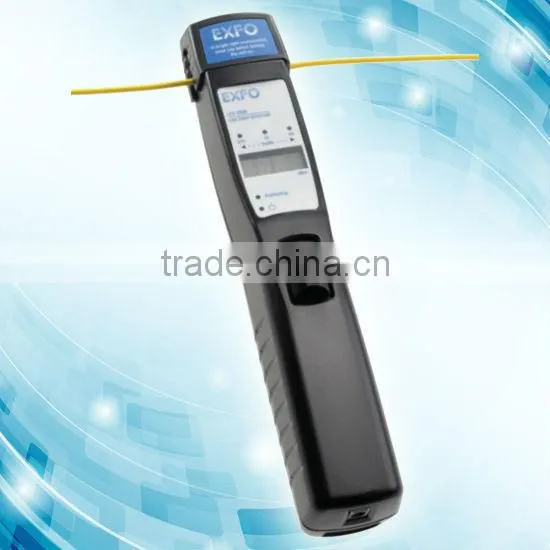

EXFO fiber identifer

Combining live fiber detection and dark fiber
pinpointing in one cost-efficient test tool

Induces minimal loss: ≤1 dB
Fail-safe detection and results
Detects if a fiber is active or not prior to maintenance
Locates a particular dark fiber using tone recognition
(270 Hz, 1 kHz, 2 kHz)
Identifies traffic direction on a live fiber
Displays the power transmitted through the fiber
Three times faster test time
