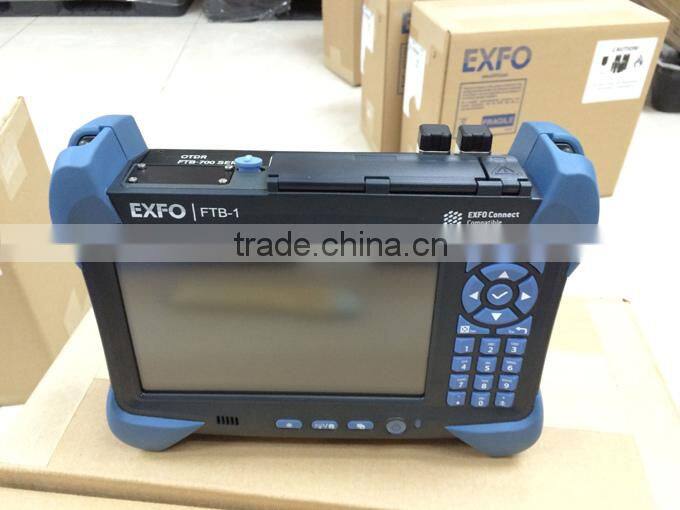

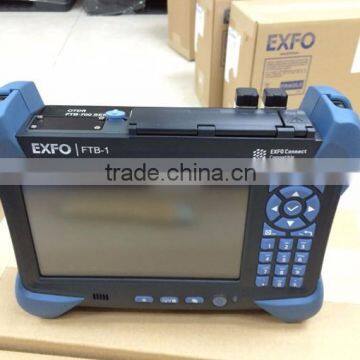

Exfo FTB-1-720-12CD-23B-XX-XX,Singlemode and Multimode OTDR Module With Best Price in Stock
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Canada
Brand Name:
EXFO
Model Number:
FTB-1
Payment & Shipping
Payment Methods:
Port of Shipment:
HONGKONG
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Yokogawa OTDR AQ7280 Series -AQ7282A Modules 38/36dB 1310/1550nm OTDR PriceUS$ 1 - 4,800MOQ: 1 Set -
OTDR, Touch Screen,HSV-600 OTDR Equal to EXFO MAX-710B,JDSU MTS-2000/YOKOGAWA AQ1200 Fiber Optic OTDRUS$ 1,400 - 2,000MOQ: 1 Set
-
Yokogawa OTDR AQ7280 AQ7282A 38/36dB 1310/1550nm OTDR PriceUS$ 1 - 4,800MOQ: 1 Set
-
EXFO OTDR MAX-730B /MAX-720B / MAX-710B OTDR PRICENegotiableMOQ: 1 Set
-
IN STOCK PROMOTION! EXFO FTB-200 Otdr Platform With FTB-7500E-0023B SM OTDR 45/43dB With Best PriceNegotiableMOQ: 1 Unit
Place of Origin
Canada
Brand Name
EXFO
Model Number
FTB-1
free shipping cost Exfo FTB-1 with ftb-720-12CD-23B-XX-XX, Singlemode and multimode OTDR Module, 850/1300/1310/1550 nm IN STOCK!
| FTB-1 | Modular mainframe unit (8Gig internal memory) |
| FTB-720-12CD-23B-XX-XX | FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
The FTB-1 Platform is a modular platform optimized for fast, powerful, dedicated FTTH and
Ethernet test applications
KEY FEATURES
Flexible connectivity: USB, mobile, Wi-Fi and
Bluetooth capabilities
Utilities: supports third-party applications and all the tools that
enable technicians to complete their work right in the fi eld
Test management/reporting: lets you take advantage of
the EXFO Connect environment to monitor fi eld operations
(local and remote)
PC-oriented: Intel ATOM processor with Windows
Embedded Standard operating system, for optimized
productivity and versatility
Power management: latest battery technology for
unmatched operation autonomy
EXFO OTDR FTB-1 with module FTB-720/730/860
| TK-1-700 | |
| Includes : | - Color 7'' touchscreen TFT display |
| - USB 2,0 interfaces | |
| - Up to 1Gig RJ-45 built-in interface | |
| - EXFO Fiber Inspection Probe video connector interface | |
| - AC adapter/charger and 1 battery | |
| - Certificate of Compliance | |
| - Semi-rigid case (GP-10-072) | |
| - Neck strap | |
| - Hand strap | |
| - Please order OTDR or iOLM base software or the combined OTDR and iOLM option. If not specified, the OTDR software will be selected | |
| Important : | iOLM will be delivered with an APC interface. APC interface on an iOLM and OTDR ensures maximum measurement efficiency. UPC connectors are prone to be highly reflective if dirty or worn. Reflectance of the unit connector will dramatically limit the performance of the measurement. Worn UPC will create a permanent degradation of the unit capabilities until the output connector is replaced. APC interface can handle wearing and dirt without being highly reflective. Testing a UPC network doesn’t require a UPC OTDR, simply use a APC-UPC test jumper suplied with the unit when UPC interface is ordered. |
| Model | Description |
| TK-1 | Modular mainframe unit (8Gig internal memory) |
| OTDR Module | Description |
| FTB-720-000-04B-XX | FTB-720-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B-04B-XX | FTB-720-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 36/34 dB (9/125 µm) Port 2 : Filtered 1625 nm, 34 dB (9/125 µm) for live fiber testing |
| FTB-720-023B-XX | FTB-720-023B-XX, SM OTDR Module, 1310/1550 nm, 36/34 dB (9/125 µm) |
| FTB-720-12CD-XX | FTB-720-12CD-XX, MM OTDR Module, 850/1300 nm, 27/26 dB (50/125 & 62.5/125 µm) |
| FTB-720-12CD-23B-XX-XX | FTB-720-12CD-23B-XX-XX, MM/SM OTDR Module, 850/1300/1310/1550 nm, 27/26/36/34 dB (MM: 50/125 & 62.5/125 µm - SM: 9/125 µm) |
| FTB-730-000-04-XX | FTB-730-000-04B-XX, SM OTDR Module, Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-000-08B-XX | FTB-730-000-08B-XX, SM OTDR Module, Filtered 1650 nm, 37 dB (9/125 µm) for live fiber testing |
| FTB-730-023B-04-XX | FTB-730-023B-04-XX, SM OTDR Module Port 1 : 1310/1550 nm, 39/37 dB (9/125 µm) Port 2 : Filtered 1625 nm, 39 dB (9/125 µm) for live fiber testing with in-line power meter (one broadband channel) |
| FTB-730-023B-XX | FTB-730-023B-XX, SM OTDR Module, 1310/1550 nm, 39/37 dB (9/125 µm) |
| FTB-730-034B-XX | FTB-730-034B-XX, SM OTDR Module, 1550/1625 nm, 37/37 dB (9/125 µm) |
| FTB-730-236B-XX | FTB-730-236B-XX, SM OTDR Module, 1310/1490/1550 nm, 39/35/37 dB (9/125 µm) |
