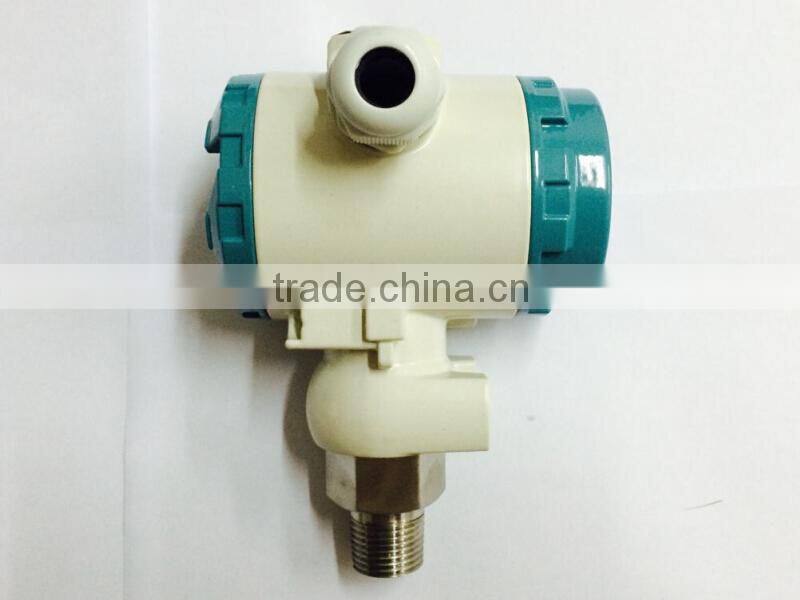

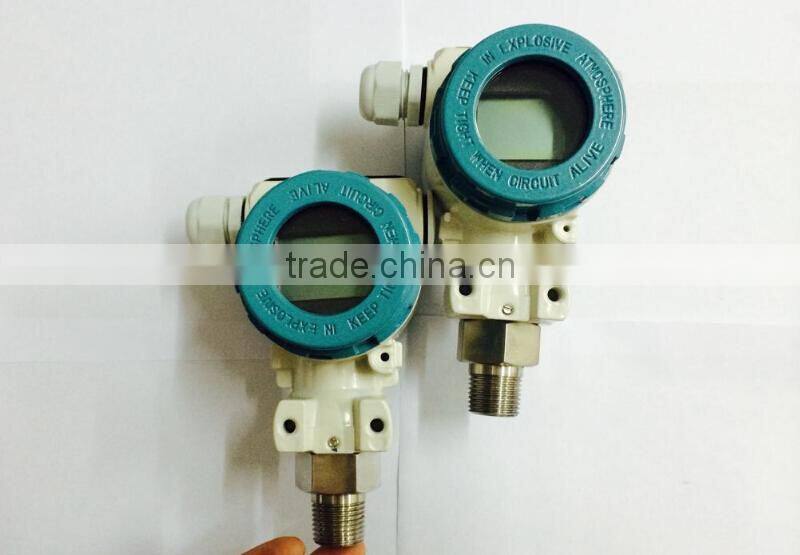

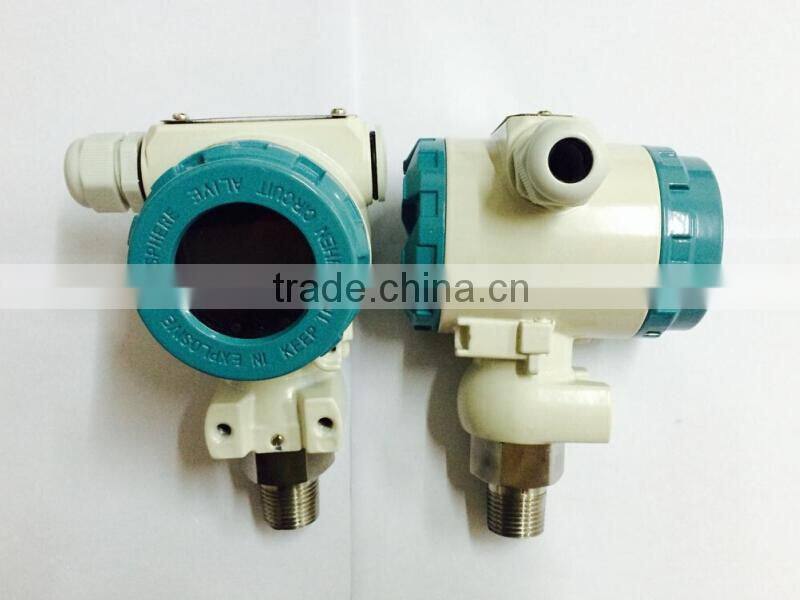

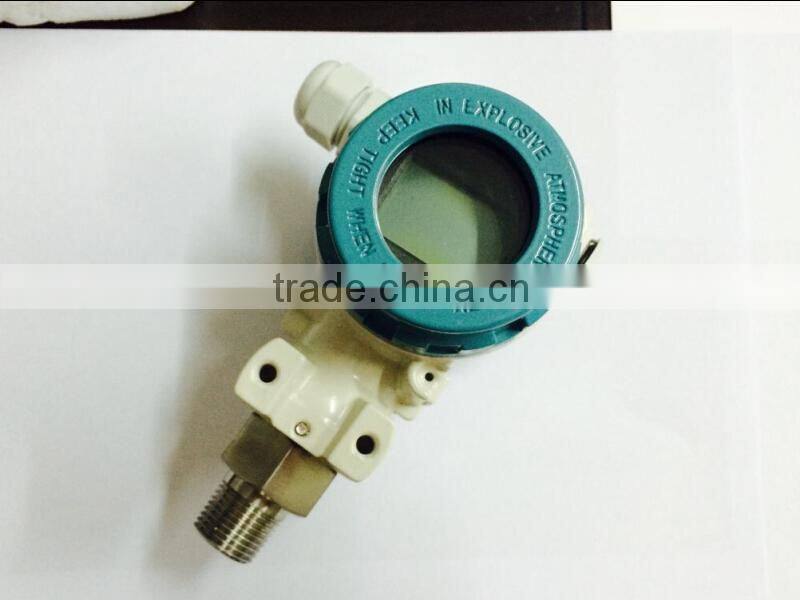

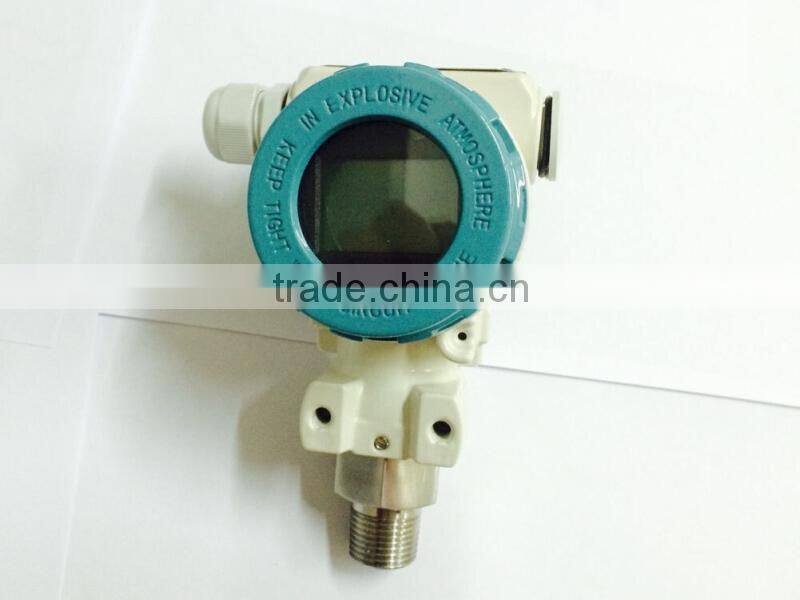

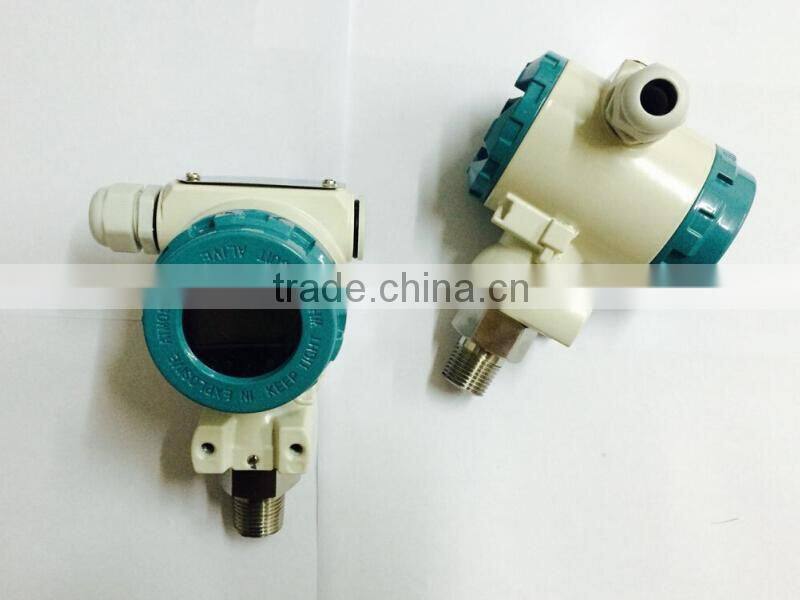

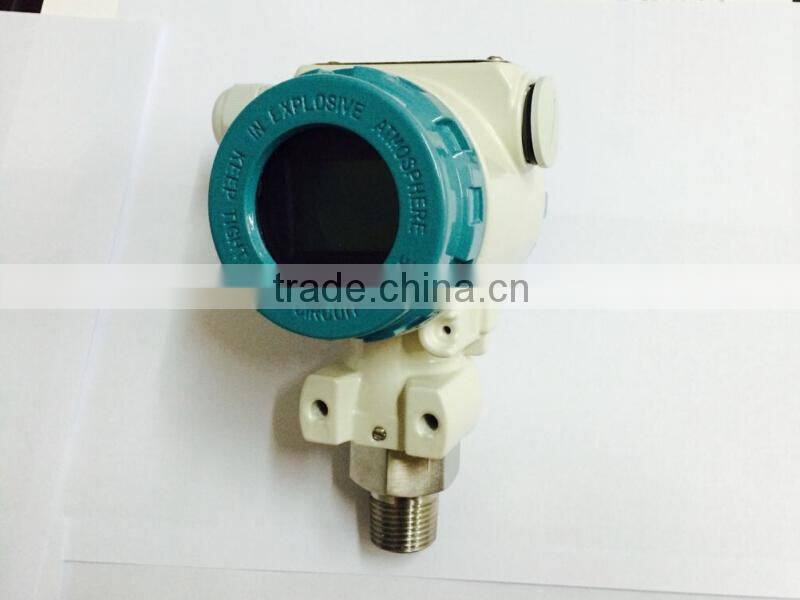

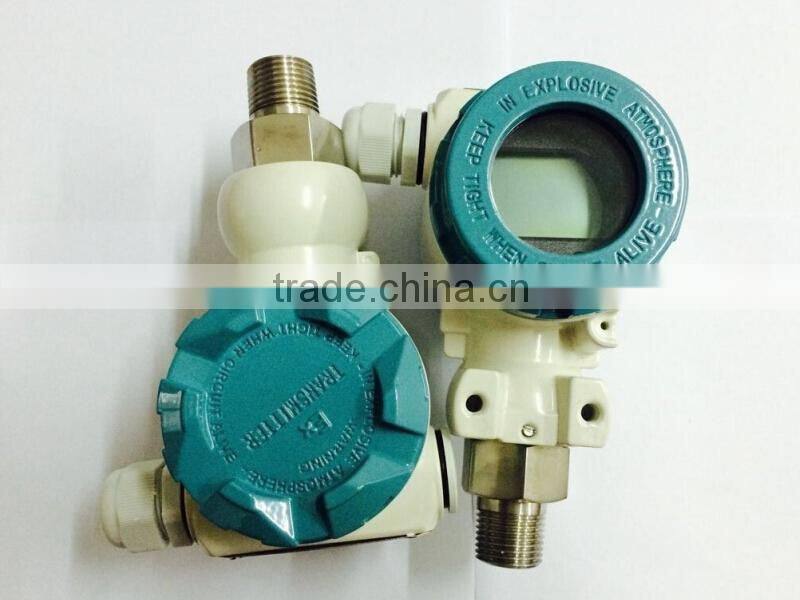

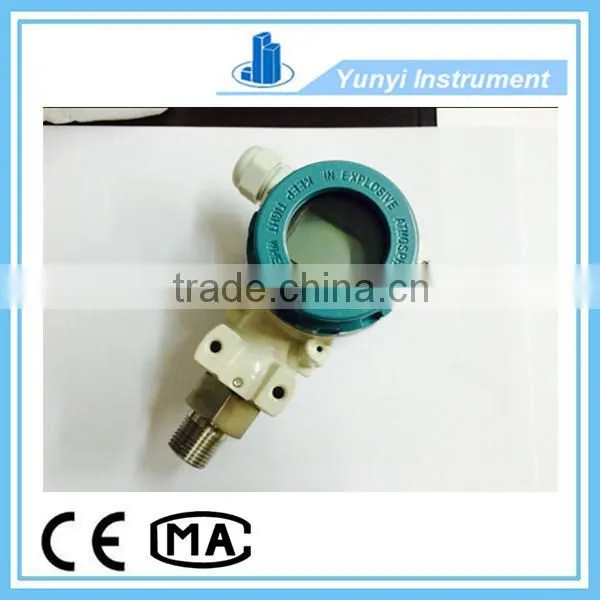

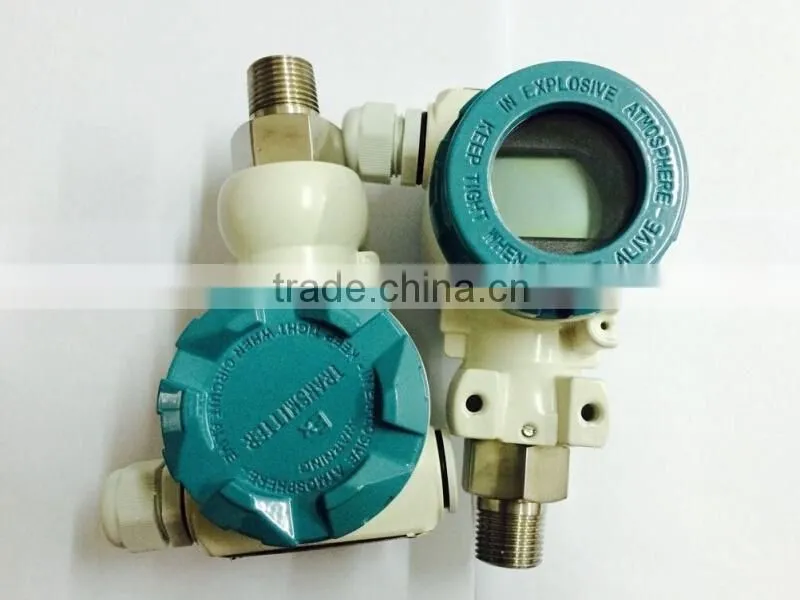

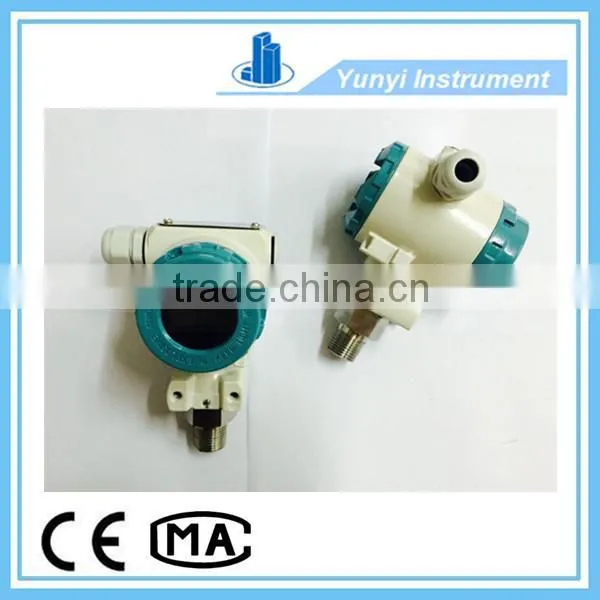

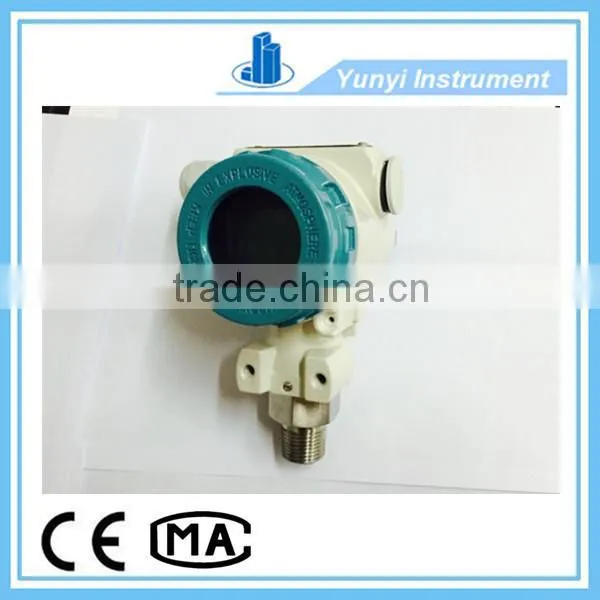

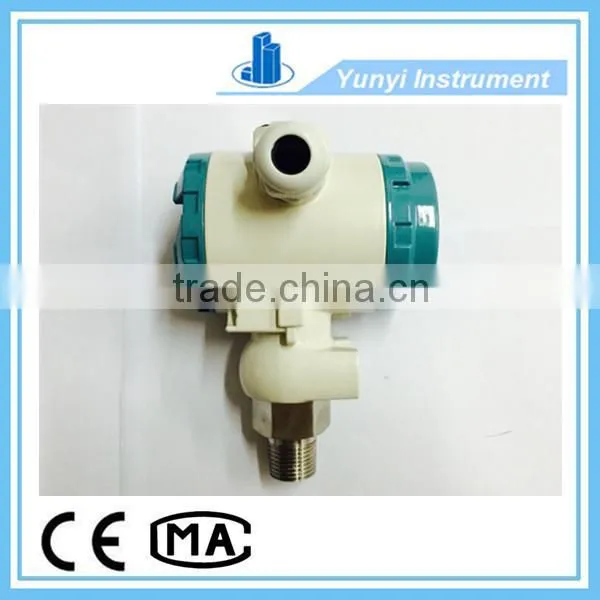

Industrial pressure instruments liquid measuring instrument

Industrial pressure instruments liquid measuring instrument
Corrugated cardboard boxes outer and foam paper inner

Specifications

Industrial pressure instruments liquid measuring instrument
made in china
manufacturer offer
high quality and low price

Industrial pressure instruments liquid measuring instrument





Working Principle of Industrial pressure instruments liquid measuring instrument :

yokogawa pressure transmitter  is used to measure level,density and pressure of liquid, gas or steam, and then convert pressure

signal into 4~20mA/0~20MA/0~5VDC/1~5V/0~10VDC signals.



Application Field of Industrial pressure instruments liquid measuring instrument :

1. Petroleum / Petrochemical / Chemical

2. The electricity / City gas

3. Pulp and paper

4. Iron and steel / Nonferrous metal / Ceramic

5, The mechanical / Shipbuilding industry



Technical Parameters of Industrial pressure instruments liquid measuring instrument :

Measured Medium: Gas, liquid(no corrosion of stainless steel)

Measured Range:  -0.1~0~0.001~100MPa(within any range)

Pressure Type: Negative pressure, absolute pressure, standard pressure,

sealing pressure (not required default gauge)

Accuracy:   0.1,  0.25,   0.5,(default 0.5)

Connection Size: M20*1.5(default)  Others optional: G1/2, G1/4, G1/8, G3/8, G3/4, 1/4NPT, 1/2NPT, 1/8NPT.

Long Stability: ±0.1% F.S/Year

Temperature Drift: ±0.01%FS/℃

Power Supply: 18-36VDC (default 24V)

Output: 4~20mA (default)  or  0-5VDC or 0-10VDC or 1-5VDC or 0~20mA

Medium Temp: -40-85℃

Environment Temp: -40-85℃

Over Pressure: 150%

Seal Grade: IP65

Sampling frequency: ≤2ms

Probe Material: Stainless Steel

Over Load: (Current type)250~1425Ω (Voltage type)≥2KΩ
