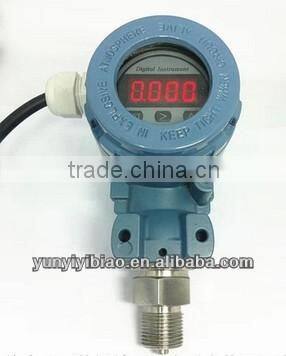

2014 Low Price Intelligent Digital Pressure Transmitter Calibration

Specifications

Intelligent digital pressure transmitter calibration

Technical data of of  Intelligent digital precision pressure transmitter :

1. Measuring range:-100KPa ~ 0-60MPa
2. Maximum Overload: 1.5 times the standard range
3. Pressure Type: gauge pressure, differential pressure
4. Accuracy class: 0.25% F.S custom 0.5% F.S √
5. Power supply voltage: 24VDC
6. Load resistance: ≤ 500Ω
7. Measuring medium: steam pressure or gases, liquids
8. Long-term stability: ± 0.2% F.S / Year
9. Temperature drift: ± 0.03% FS / °C
10. Compensation temperature: -10 ~ 80 °C
11. Working temperature: -10 ~ 100 °C (up to do 200 °C / to be ordered)
12. Case: all stainless steel body
13. Measuring media: non-corrosive stainless steel gas, liquid
14. Pressure connection: M20 × 1.5 or user-defined
15. Weight: normal type 0.3kg, 0.65kg with a header type

About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
