Specifications

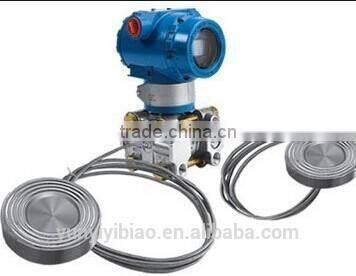

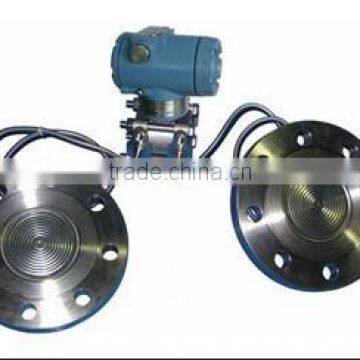

Universal remote control Differential Pressure Transmitter1.universal remote control
2.high Stability
3.good quality
manufacture of Universal remote control Differential Pressure Transmitter
Description:
Universal remote control differential pressure transmitter provide several credible measure method for avoiding the medium contact the membrane of the transmitter.
Range
Range code | Range | Measuring range | |
Min. | Max. | ||
4 | 0.374KPa | 37.4KPa | -37.4~37.4KPa |
5 | 1.868KPa | 186.8KPa | -186.8~186.8KPa |
6 | 6.9KPa | 690KPa | -690~690KPa |
7 | 20.68KPa | 2068KPa | -2068~2068KPa |
8 | 68.9KPa | 6890KPa | -6890~6890KPa |
Technical Data
Output | Analog output: two –wire 4-20mADC |
Digital output: two –wire 4-20mADC and superimposing variable digital signal accord with HART | |
Power supply | supply voltage 12.5-45VDC |
Limit load | Max load resistor Rmax in loop decided by the supply voltage, see the below drawing. HART PROTOCOL require the load resistor not less than 250Ω,not more than 600Ω |
Communication distance | Max. 1.5Km, multi-address communication can connect 15 smart transmitters Max. |
Display | 4 digital display,5 digit LCD display, pointer type. |
Explosion-proof | ExiaIICT5;explosion suppression type |
Zero offset | Can positive transfer or negative transfer, but can not overstep the utmost value |
Temperature | ambient temperature -40-85℃(When choose LCD : -20-70℃) |
Medium temperature | -40~104℃ |
Filled oil operating Tem. | Silicon oil:-29~+149℃ inert oil:-18~+204℃ |
Static pressure and single side overpressure | 3.45KPa(Absolute)~13.78MPa |
Relative humidity | 5~98%RH |
Run-up time | less than 5 sec. |
Capability change | Less than 0.16cm3 |
Damp adjust | 0.20~25 second |

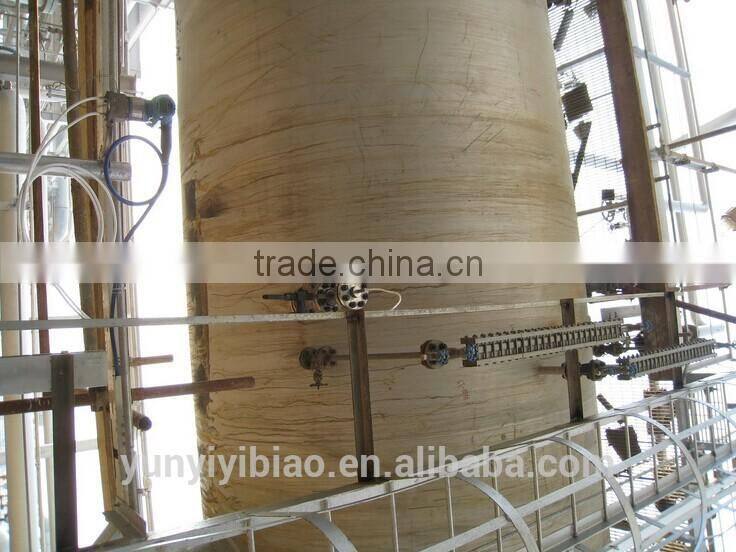

Installation:
About Us:
Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
If you need this Universal remote control differential pressure transmitter , please contact me freely.
