English Menu Best Seller Hart Communicator 375

Standard export packing

Specifications

English Menu Best Seller Hart Communicator 375
Rosemount hart communicator
Low price and good quality
CE certificate

English Menu Best Seller Hart Communicator 375



Description of English Menu Best Seller Hart Communicator 375 :

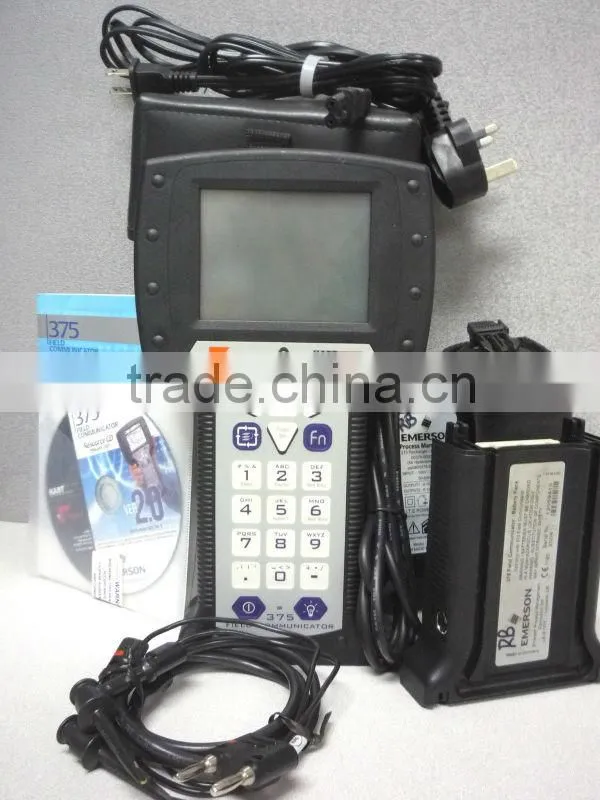

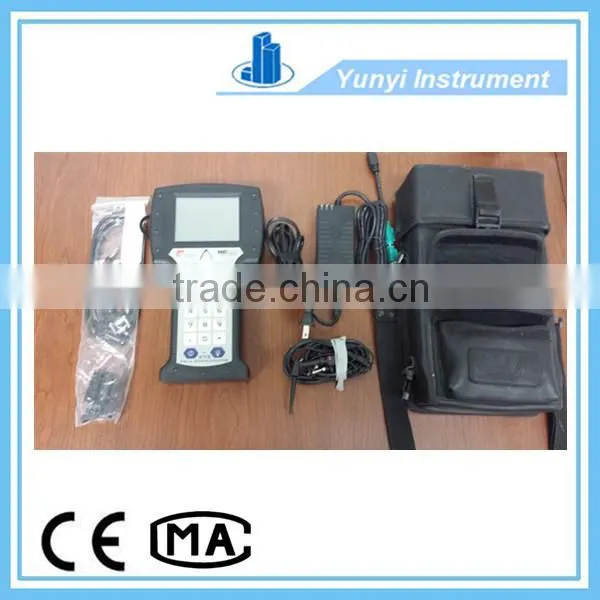

rosemount 375 field communicator is a hand held interface based on HART protocol. It is mainly used in the industry field to perform configuration, management, maintenance and adjustment to HART instruments, and meantime monitor the process variables of the running instruments.



Technical Parameters of English Menu Best Seller Hart Communicator 375:

Communication Signal Connection: Special cable of 1.1m length (3.6ft)

Communication Wire: 1Km length (0.62 mile) (0.75~1.25mm2)

Load Resistance: 250~600 Ω

Load Capacitance: Below 0.22uF

Load Inductance: Below 3.3mH

Space between Power Source Wire: above 15cm( avoid parallel routing)

Display: 128*64 lattice LED display

Control: Touch switch ( 4 direction keys, 19 function keys)

Power Resource: 4 rechargeable batteries of 1.2V

Size: 180×80×54mm ( length ×width ×height)

Weight: 700g





About Us:

Xi'an Yunyi Instrument Co., Ltd. is a professional manufacturer that engaged in the fields of pressure measurement instrument, the chief engineer Mr Tian has more than 30 years on this area, he is one of the engineers who introduced the Rosemount technology. We specializing in developing high precision pressure transmitter and pressure gauges. And we also develop temperature transmitter, level transmitter, densitometer etc. They are widely used in chemical, petroleum, paper, electricity, city gas, environmental protection, water treatment and other fields.
