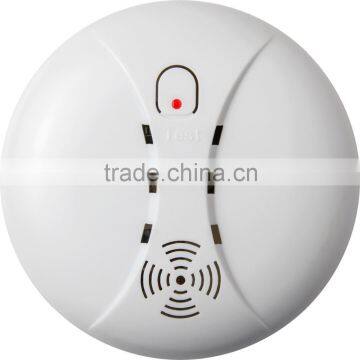

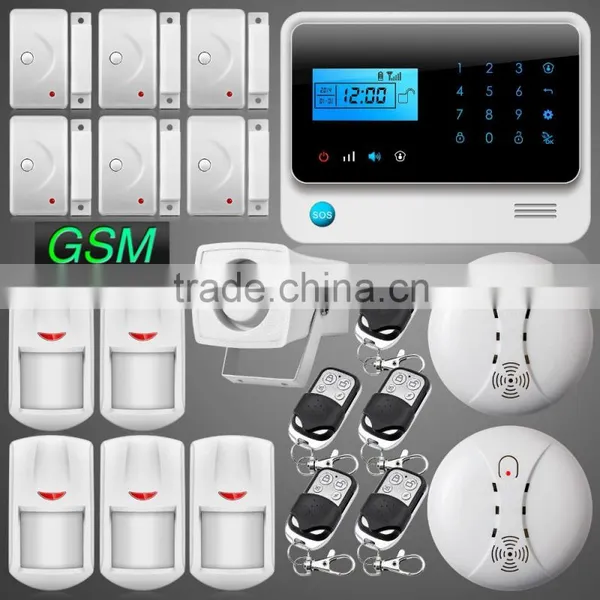

Five Voices Prompt App Controlled GSM RFID Home Security Alarm System, Home Anti-Theft Alarm System with Smoke Detectors Quality Choice

2016 home(office) security Solution

You can arm the panel via app,phone ntrol or the arm button of alarm panel,if you frequently travel or want to make certain that your home is secure while you are away,this system is an ideal choose for you.

All for home(office) security

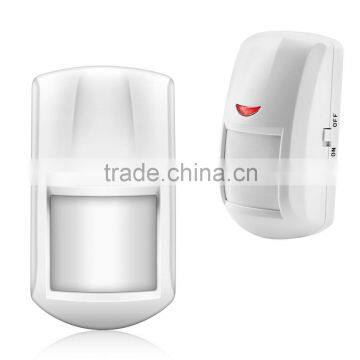

The alarm panel will send SMS and autodial to the preset phone number when any detector(door sensor,PIR sensor...)is triggered.once dialed ,the recipient can listen in and even broadcast their voice to scare away the intruder ,the siren will sound the sport at the same time.

10 Sencods Voice Recording

You can set preset number to police station and record some voice into the system,when alarm panel call the police station number,policeman will hear your voice which you have store into the system.

Two-way SOS talking

Press SOS key,the alarm panel will autodial the preset SOS number,it gives seniors and their caregivers the freedom of independence as well as peace of mind(you can set the SOS number of family member/local hospital).

• Android APP and Apple IOS APP.
• Blue LCD screen with time clock and alarm status display.
• 99 Wireless defense zones: Each defense zone can be coded one wireless sensor, so totally can   be coded 99 wireless sensors.
• 8 Wired defense zones: Can be totally connected 8 different defense zone's wired sensors.(Each defense zones can connect N pcs wired sensors by using Series Connection)
• Four Bands: 850/900/1800/1900MHz, for worldwide usage.
• No need to plug into a phone line: Simply insert a SIM card into the Wireless GSM Control Host.
• Voice prompt for all operations so that you can easy to set the alarm system.
• SMS prompt automatically about low power of battery.
• SMS prompt when AC power lost or recovered.
• Built-in intercom horn, two way communication can be realized.

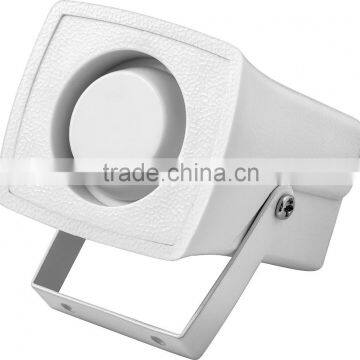

• Built-in wireless transmitting module, could be coding with wireless siren.

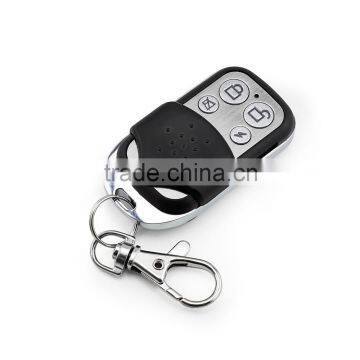

• At most 5 wireless remote control codes.
• Inquire the status of alarm panel by SMS.
• 1 group timed Arm and timed Disarm function: You can timely Arm and Disarm the system even you are not at home.
• Can store 6 phone numbers: when alarming, system will make alarm call to these numbers three times automatically.
• Can store 2 groups of SMS numbers: when alarming, system will send alarming SMS to these numbers automatically.
• Dial on the keypad directly to make a phone call just like the cellphone.
• Remote control the alarm system Arming, Disarming, Monitoring and Intercom by your cellphone.
• 10-second automatic message recording: After you connecting the GSM SIM card, you can record 10-second message.
• Remote location APP Arm, Remote location Phone Arm.
• Real-time, delay, 24 hours, bypass defense zones programming function.
• Wireless coding: easy to add additional wireless accessories.
• SMS confirmed when you Arm/Disarm the alarm system through Text.
• Built-in Backup rechargeable battery: Still can last for 4 hours and Send SMS to remind you when    power off.
• Built-in MIC and Loudspeaker, easy for you monitor or intercom with the spot.
• Built-in siren.
• There is GSM signal bar on the LED screen: easy to check the GSM signal strength.
• Can be used as GSM alarm system(with compatible GSM sim card) or Spot alarm system. (Without sim card)

GSM Alarm Panel
Working power	AC = 100 ~ 230V, DC = 12V 1A
Static current	<55mA (When not charging)
Alarm current	<450mA
Built-in backup battery	NI-MH AAA*6 7.2V (Rechargeable)
Standby	around 24 hours
Full charging time	8hours
4-Band GSM	850/900/1800/1900Mhz
GSM transmit power	2W
Receiving and emitting range	>100m (Non-block)
Working condition	Temperature: -20 degrees ~ 80 degrees
Humidity	40% ~ 80%

Panel schemes

LCD display

Installation drawing on the back

Wire Connecting Terminal
