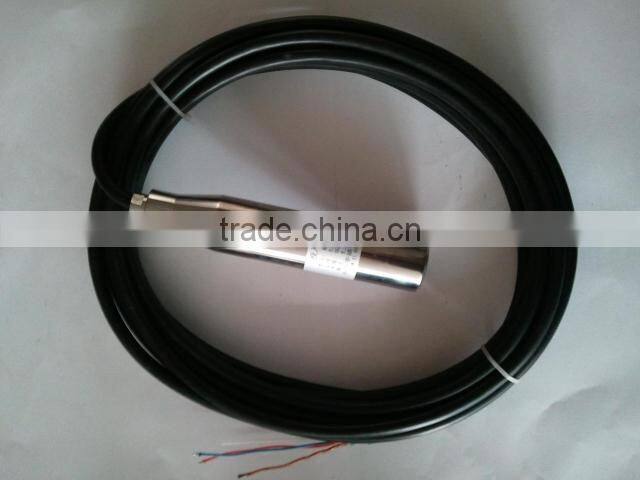

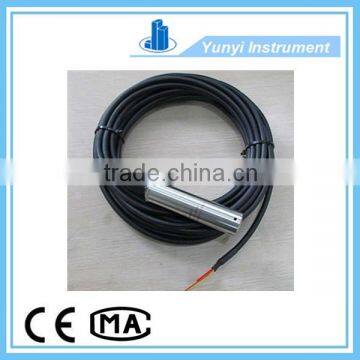

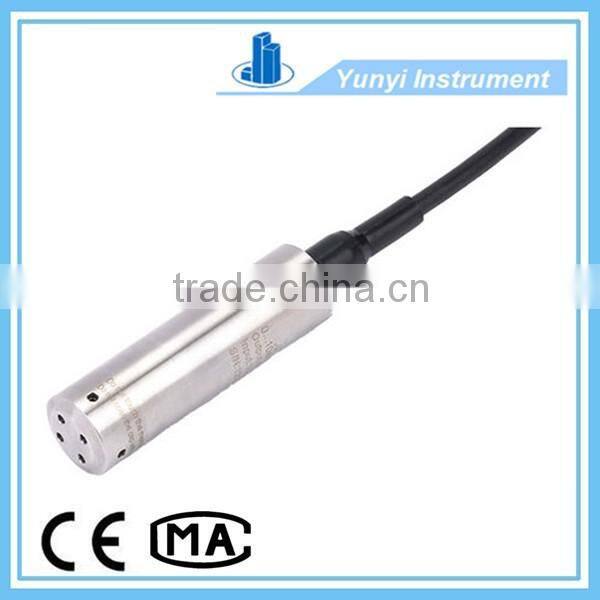

Water level hydraulic level transmitter
Technical Paramter:
Applicable medium: the medium can coexist with 316 stainless steel, nitrile rubber, PVC
Measuring range: 0-60 m H2O
Accuracy: 0.5%; 0.25%; 0.1%;
Medium temperature: - 40 °C ~ 80 °C (medium without crystallization)
Ambient temperature: - 40 ~ 70 °C
Long term stability: + / - 0.1%FS/year
Power supply voltage: 12-36 VDC standard 24 VDC
Two wire output signals: 4 ~ 20 ma
Protection grade: IP68
Level of explosion-proof: iaIICT5
Structure and material:
Transmitter relay box: cast aluminum, 100 x 68 x 110, epoxy resin coating
Transmitter probe: 1 crl8ni9ti, Φ 29×150, anticorrosive for Φ 44×140
Gas leading cable: 7 diameter 6 core PVC cable, anti-corrosion cable sheath use ptfe
Weight (excluding gas leading cable) : about 0.6 kg
Electrical interface: M20 x 1.5
| |
| |
| |
If you need this Wika pressure transmitters, small differential pressure transmitter, small lcd pressure transmitter, Please contact me
