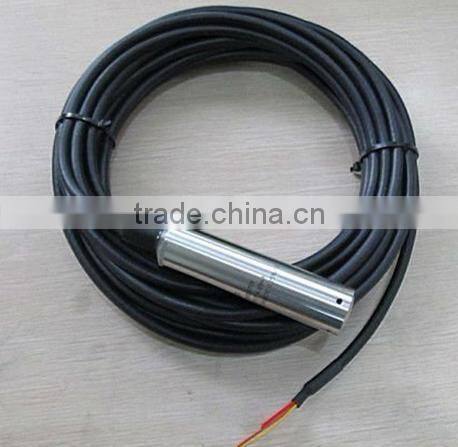

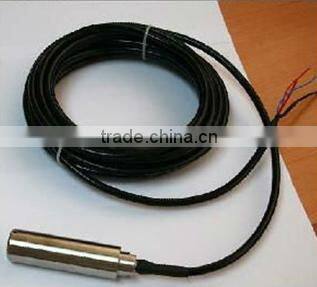

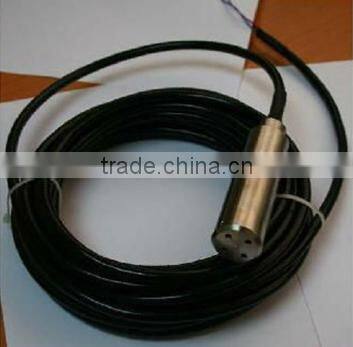

Input type water level sensor with 4-20ma output

Standard export packing

Specifications

Input type water level sensor with 4-20ma output
Low price
high quality
CE approval

Input type water level sensor with 4-20ma output



Features of Input type water level sensor with 4-20ma output:

A. Adopt imported diffusion silicon pressure sensor chip

B. Advanced SMD technology, ith zero, full-scale compensation, temperature compensation

C. High precision and high stability of amplifier integrated circuit

D. The complete structure, impact resistance, fatigue resistance, high reliability

E. Different output signal(Current, voltage type)

F. Compact structure, convenient installation

G. Electrical connections adopt special encapsulation technology, supporting the 5 core gas

shielded cable, protection grade reaches the national standard IP68



Application of Input type water level sensor with 4-20ma output:

A. The water level of the water tank, oil level in oil tank, liquid level measurement of water sink(oil sink);

B,The water level measurement of wells, water towers, river, reservoir

C,Sewage treatment equipment, sea water, groundwater monitoring





Main technical parameter of Input type water level sensor with 4-20ma output:

Medium: Liquid(Weak corrosive)

Pressure type: Gauge pressure

Range: 0-5-10-20-50-100-200m

Output:  0~5VDC/4-20Ma

Accuracy: ±0.25%FS,±0. 5%FS

Supply: 24V Dc(15~30VDC)

Insulation resistance: ≥1000 MΩ/100VDC

Load resistance: Current output type: max 800Ω/ Voltage output type: more than 50KΩ

Temperature of medium: -20~85°C

Ambient Temperature: -20~85°C

Relative humidity: 0~95% RH

Seal Grade: IP68

Over Load:  150%FS

Response time: ≤5mS

Stability: ≤±0.15%FS/ year

Vibration Fluence: ≤±0.15%FS/year(Mechanical vibration frequency 20Hz~1000Hz)

Electrical connection:Full sealed 5 core gas shielded cable

Connection thread: Input type

Material of connection thread: SS304





If you are interesting in level sensor, pressure sensor, temperature sensor, please contact me freely.
