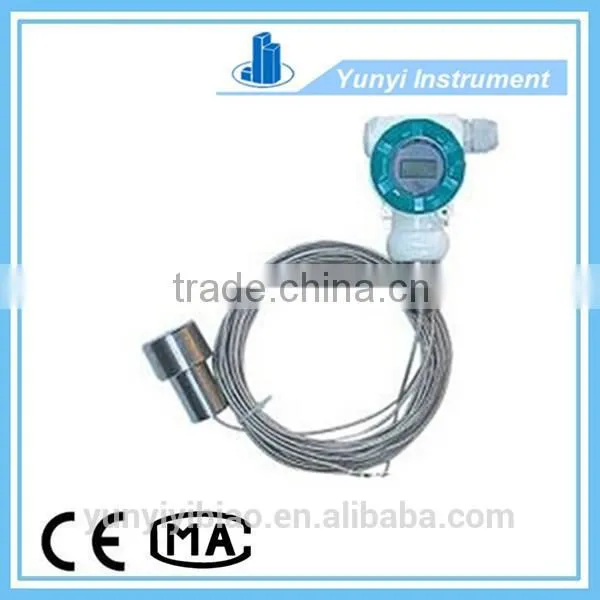

China new product capacitive liquid water level sensor

China new product capacitive liquid water level sensor standard packaging

Specifications

China new product capacitive liquid water level sensor
1 high reliability
2 high accuracy
3 Long life



China new product  capacitive liquid water level sensor



Description:

It can convert all kinds of level, changes in the level of medium parameters into a standard current signal, remote to operate the control room for the secondary instrument or centralized computer device display, alarm or automatic control. Its good structure and installation method, suitable for high temperature, high pressure, highly corrosive, easy to crystallize, anti-clogging, level, level anti-cold junction under special conditions and solid powder, granular materials, etc., continuously measuring level of , widely used in electric power, metallurgy, chemical, food, pharmaceutical and other industries and sewage treatment, boiler drum, coal and other places of the package level, level and physical level measurement.



Technical data:

Measurement range: 0.2 to 20 m
Accuracy: 0.2, 0.5, 1.0
Probe Temperature: -40 ~ + 250 ℃
Allow vessel pressure: -0.1MPa ~ 2.5MPa
Measuring medium: not less than the conductivity of the acid, alkali, water and other non-conductive liquid crystalline 10-3 s / m of
Power supply: DC12 ~ 35V (isolated for DC21 ~ 27V)
Current work: (output at 20mA) non-isolated two-wire, three-wire: 20mA
Both ends of the isolated three-wire: <32mA; isolated four-wire three-terminal: <35mA
Output signal: 4 ~ 20mA (0 ~ 10mA, 0 ~ 20mA)
Output Protection: 27mA
Isolation voltage between measurements, output, power supply: 1000V
Span adjustment range and zero migration: ≥ ± 30% FS
Transmitter body size: ∅76 × 85



Features

1 compact structure, small size, simple installation and maintenance, uniform dimensions.
2 a variety of signal output form, to facilitate the different system configurations.
3 Teflon probe, acid, alkali and other corrosive liquids and high temperatures.
4 the measuring portion immersed in the liquid, there is only one line or a tetrafluoroethylene PTFE soft rod as a sensing probe, and high reliability.
5 sealed aluminum housing and stainless steel couplings.
6 high temperature pressure vessel with normal temperature and pressure measurements as simple shapes and measurements from the measured temperature of the liquid, specific gravity and the container pressure.
7 measurement, and measurement across the output, output, power isolator variety of three-terminal circuit structure, comes isolation, adapt to different signal grounding.
8 perfect over-current, over-voltage, power polarity protection.
