low cost piston vacuum pressure gauge

Name: low cost piston vacuum pressure gauge
Brand: Yunyi
Availability: InStock

FOB Price

USD $150 - $1,000 / Unit

1 Unit(Min.Order)

Supply Ability 500 Unit / Units per Month
Port beijing shanghai tianijin shenzhen
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shaanxi, China

Brand Name:

Yunyi

Model Number:

YS series

Packaging Details

low cost piston vacuum pressure gauge
Corrugated cardboard boxes outer and foam paper inner packing size: 4x5x14cm

Product Description

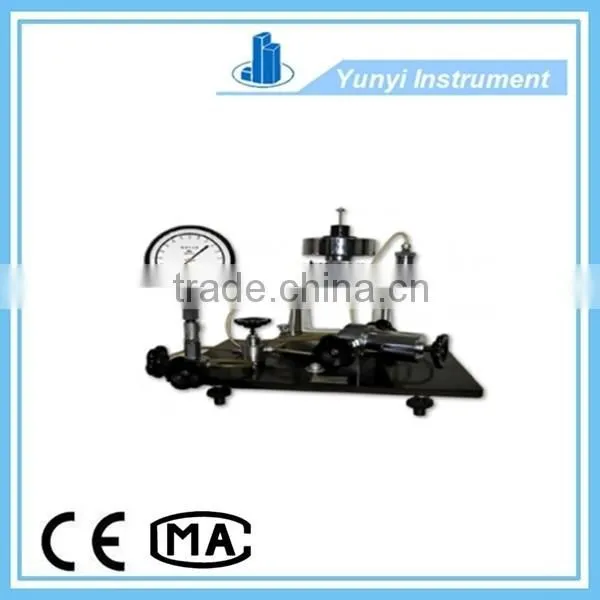

Low cost piston vacuum pressure gauge

Description of low cost piston vacuum pressure gauge :

YS - 0.25, YS - 0.6 piston type pressure gauge (hereinafter referred to as the pressure gauge) is mainly used as a test - 0.1 ~ 0.25 MPa to 0.1 ~ 0.6 MPa range of magnitude 0.1, 0.16, 0.25 and 0.4 magnitude precision pressure gauge. Pressure gauge accuracy levels of 0.02, 0.05, working medium for gas.

parameters unit		unit	type
			YS-0.25	YS-0.6
measurement range		MPa	-0.005~-0.1;0.005~0.25	--0.005~-0.1;0.005~0.6
Accuracy			±0.05%,±0.02%
Pressure weights	pressure	MPa	0.05;0.02;0.01;0.005 3 3 2 2	0.05;0.02;0.01;0.005 10 3 2 3
	quantity	piece
Negative pressure weights	negative pressure	MPa	-0.02;-0.01 4 1	-0.02;-0.01 4 1
	quantity	piece
quick joint thread			M20×1.5

Characteristics of low cost piston vacuum pressure gauge :

Modular: piston system fully modular structure and pressure generator, various modules can realize single work or combination of functions.

Stability: the liquid piston with low weight, to ensure high reliability and stability.

Interchangeability: - any of the piston - sleeve unit.

Piston - sleeve unit: use tungsten carbide materials; Other parts of the austenitic stainless steel is made of high quality, which can effectively avoid deformation . There are six range to choose from: (0.1 -) 0.1 MPa (0.1 -) 0.1 MPa (0.1 to 2.5 MPa (0.1-6) MPa (1-60) MPa MPa (1-100)

Jordan farmar: the demagnetization quality austenitic stainless steel.
