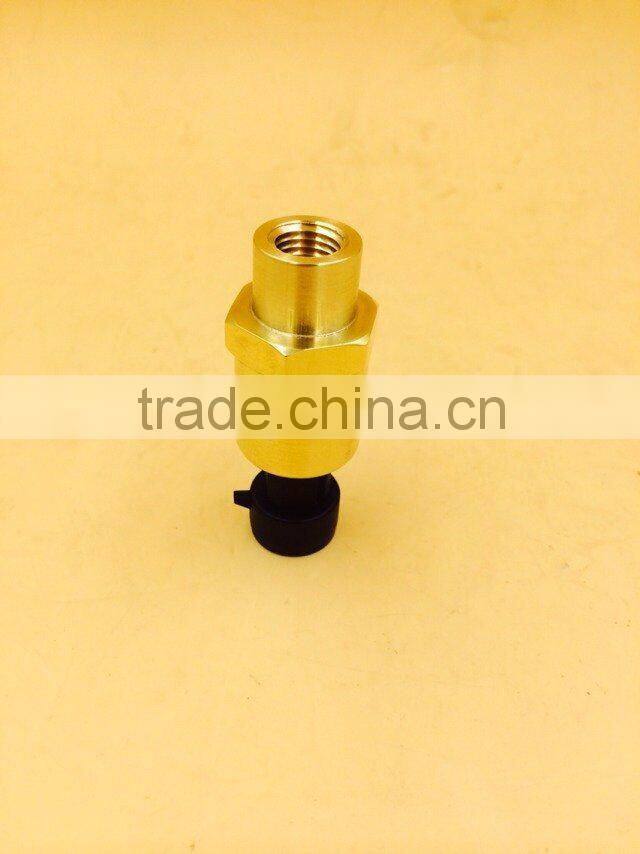

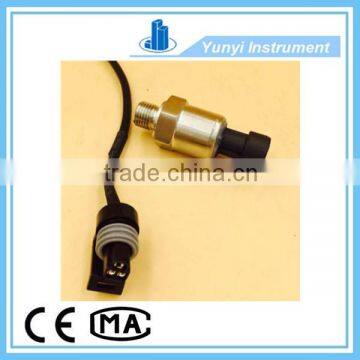

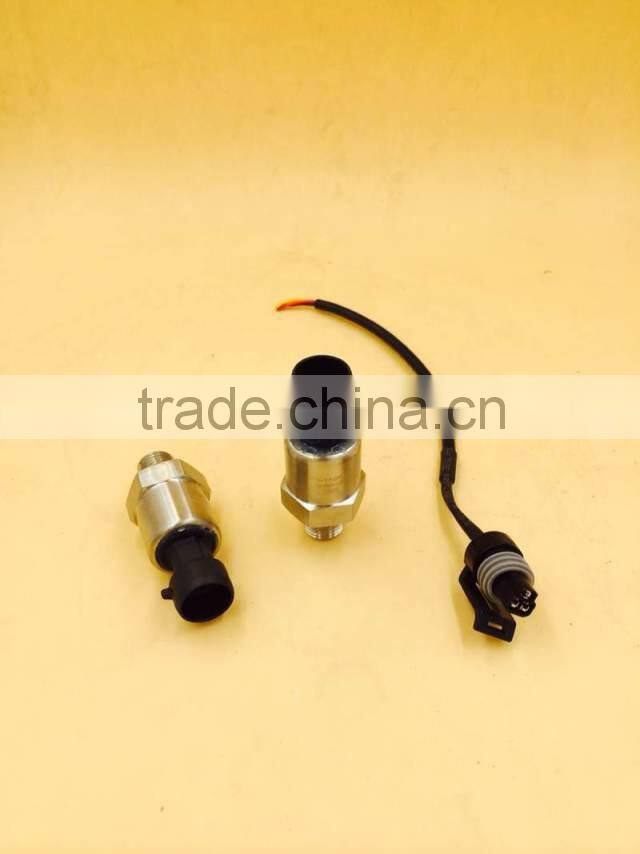

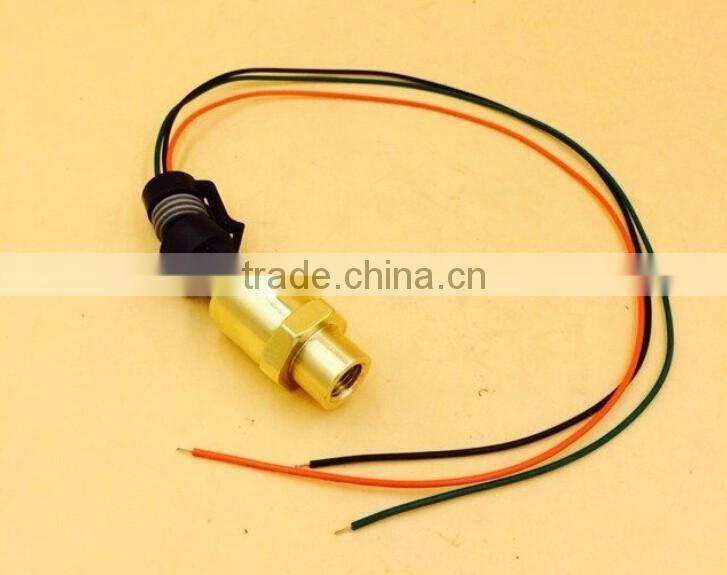

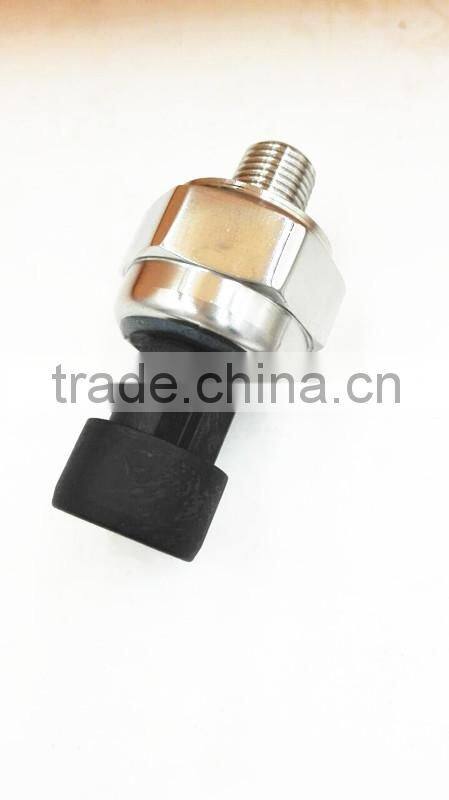

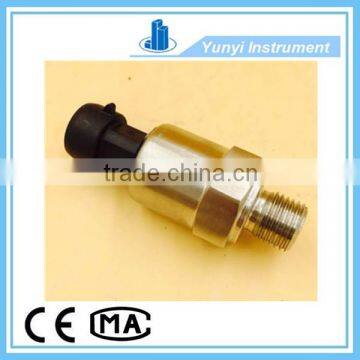

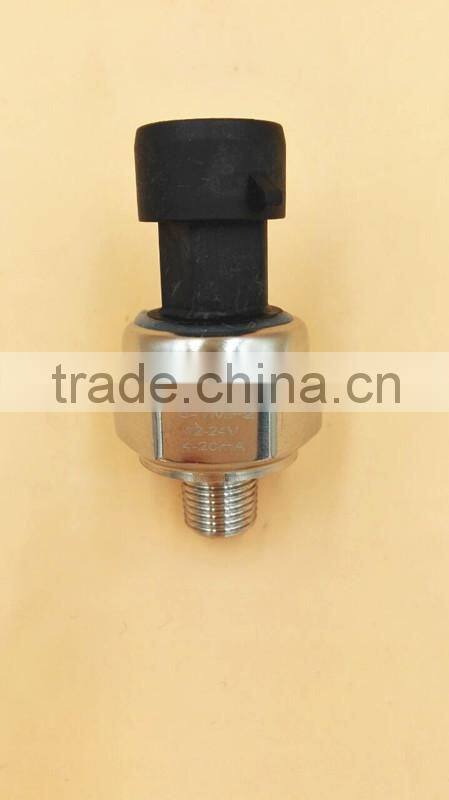

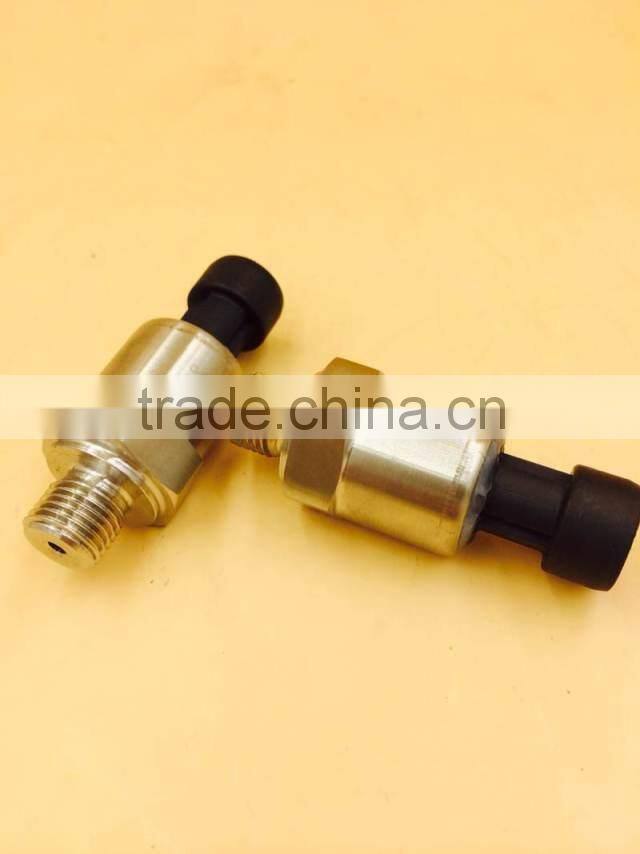

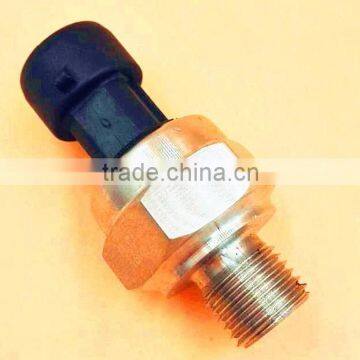

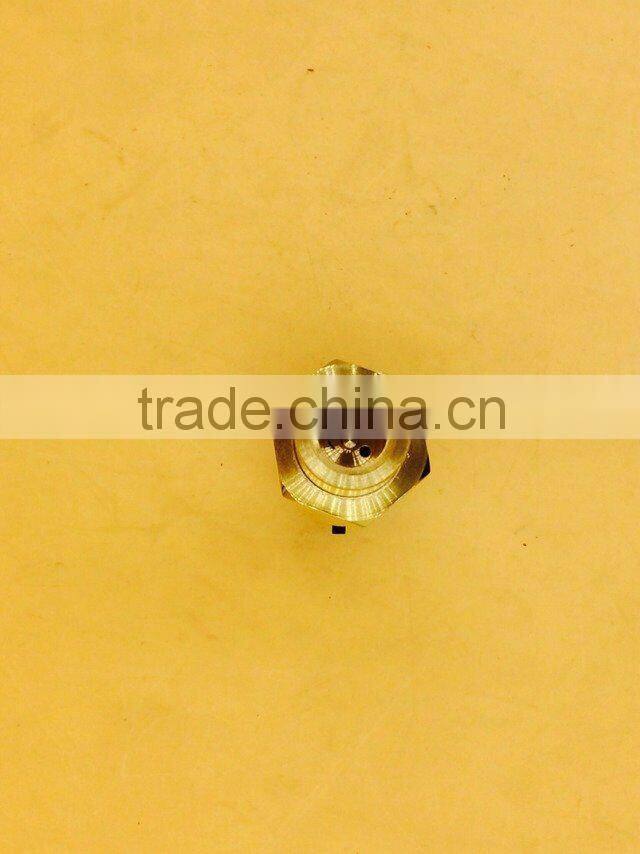

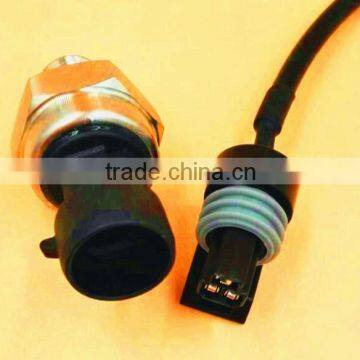

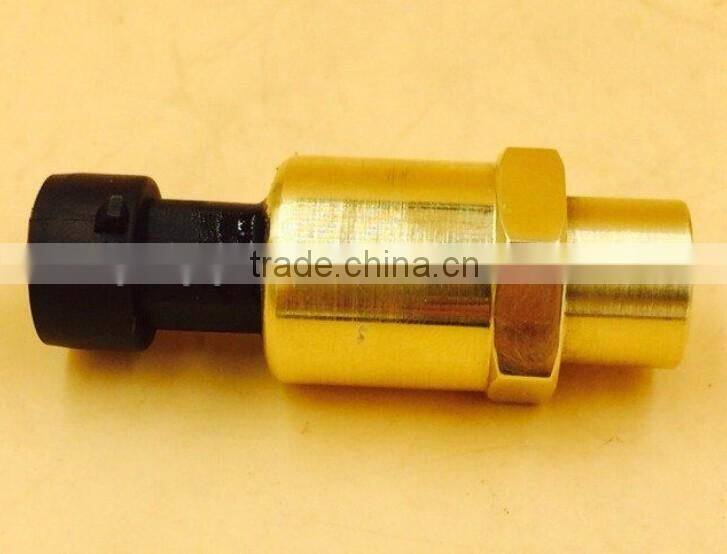

Cheap Water/oil/air Pressure Sensor

cheap water/oil/air pressure sensor

Technical parameters :

Range:-0.1-0Mpa,-0.1-0.1...1Mpa,0-2Kpa...300Mpa

Accuracy: 0.25%FS, 0.5%FS;1%FS

Medium:gas or liquid compatible with 316l stainless steel
Output: 4-20mA,
Input Voltage: +12VDC +24VDC

Electrical connector:water proof

Load capacity:current:<=500Ω
Operation Temperature: -20℃~120℃
Compensation Temperature: 0-85℃(Standard compensation)

Safety overload:150%

Limited overload:200%

Temperature drift:0.02%FS/℃

Stability:0.2%FS/year
Housing material: 316L SS
Protection:IP65
Process Connection:M20*1.5,G1/2,G1/4, 1/2NPT, 1/4NPT, M14*1.5 (Optional)


Features :

Use diffused silicon pressure components,high accuracy,good stability.

High sensitivity,strong overload.

Wide range,easy installation,meet different site requirements.

Applications :

 Laboratory test apparatus
 Agricultural chemical equipment
 Refrigeration and HVAC systems
 Hydraulic system
 Gas tank pressure monitoring
 Coolant pressure

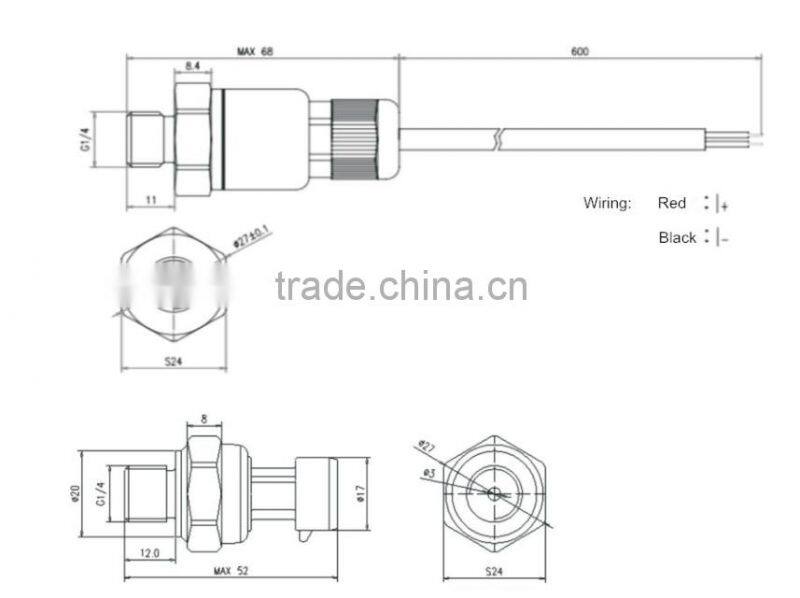

Dimension:

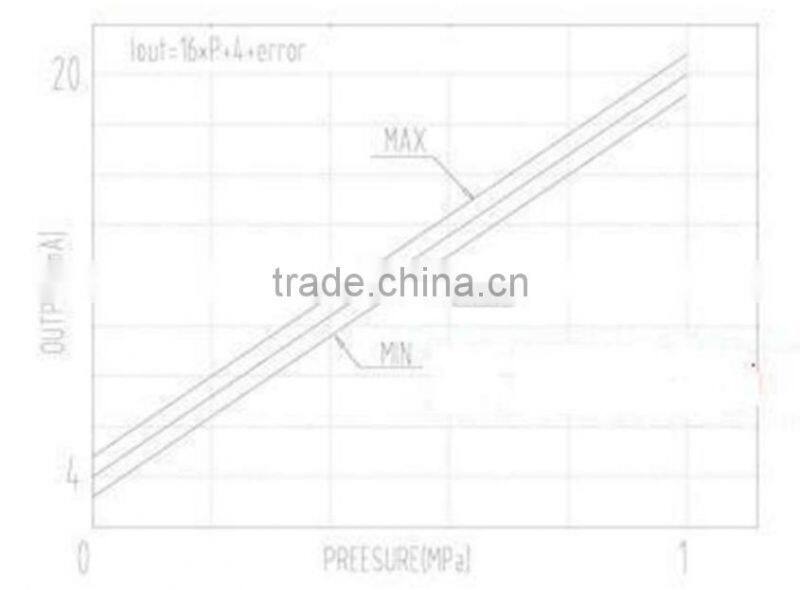

Output graph:
