600x1200 70W led panel light

FOB Price

USD $1 - $100 / Piece

100 Pieces(Min.Order)

Supply Ability 500 Piece / Pieces per Month
Port Shenzhen
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

LED Light Source:	SMD 5630	Warranty(Years):	5	Input Voltage(V):	AC 110-240V
Lamp Power(W):	70	Lamp Luminous Flux(lm):	6500	Color Temperature(CCT):	Other, 2900-6500K
Working Temperature(℃):	-20, 40	Working Lifetime(Hour):	50000	Lamp Body Material:	Aluminum
IP Rating:	IP44	Certification:	CE, ETL	Place of Origin:	China
Brand Name:	Tdrshine	Model Number:	GLM-AAAN-X

Product Description

PARAMETER

Item NO.: GLM-AAAN-X
Dimension: 600mm x 1200mm x 12mm
LED type: SMD 5630
LED Q'ty: 220pcs
Material: Aluminium + PMMA
Beam Way: Beam at two sides
Working temperature: -10.C~40.C
Installation method: Embedded.Hanging
IP rate IP40
N.W.(±0.1Kg) 8.7Kg

PHOTOELECTRICITY PARAMETER

CCT .: 2900-6500K
Flux.(±10%): 6500lm
Light Efficiency(±10%): 80lm / Watt
Input voltage: AC 110-240V
Input Power: 71W
CRI: Ra>80
Lux.at 2Meters(±10%): 430lx
Dimmable: Dimmable or Non Dimmable are available
Lighting Angle: 120°
PF: >9.0

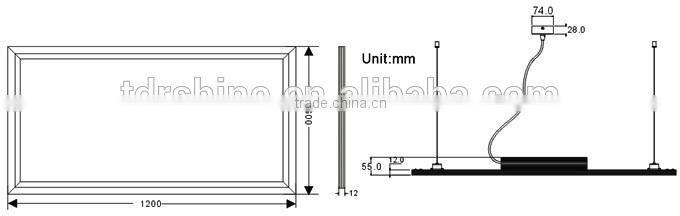

DIMENSIONAL DRAWING

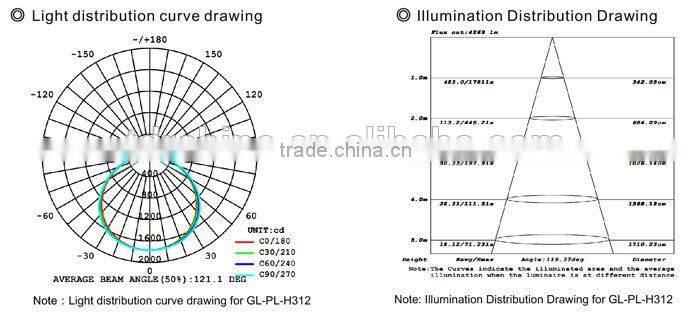

TESTING REPORT FOR 70W LED PANEL LIGHT

APPLICATION

The LED panel light ideal for illuminating a wall or display slides, signs. they offer many opportunities in innovative decorating stores and the exhibition of products on shelves or front lighting. Its standard dimensions allow very effectively replace neon frames and other types of lighting in the ceiling tiles.

LED PANEL LIGHT PACKAGING SECURITY

GL's LED panel light series, due to the LED light panel itself is fragile products, so we must have all-sided consideration in the packaging safety aspects and withstand natural drop test. Specially 600x1200mm LED panel light has larger product area, we use safe material inner box wrapped,and put it into thick paper outer cartons. To make led panel light's transit safer, we adopt add fixed plank in the box.
