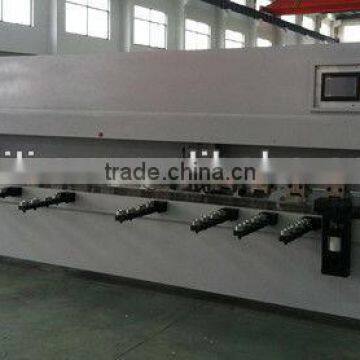

Leading CNC Sheet Metal Surface V-Groover Machines

Specifications

1.CNC Surface V-Groover Machines Manufacturers
2.PLC system, ball screw
3.customize to your need
c with servo motor

Sheet Metal plate stainless steel CNC Pneumatic  V-Groover Machine

CNC V Notching Machine Manufacturers  V Slot Machine

 V Cutting Machine V Nut Machine v cutting machine







THE exclusive functions: it can not only v groove the steel directly, but also bevelly!

Advantages:

1.precision:within 0.05mm
2.PLC system,easy to operate
3.widely use,grooving all the steel
4.customize to your need
c with servo motor

6.Pneumatic drive











This CNC V Groover Machine is the upgrade machine at the foundation of Japan Amada sheet metal v slotting machine!



Our machine has all the properties of traditional models,so as to address a range of issues encountered

by customers adequately in the actual operation.







Required specifications



	Technical parameters	3200mm	4000mm	5000mm	6000mm
1	Thickness (mm)	0.3-6	0.3-6	0.3-6	0.3-6
2	Length(mm)	4000	4000	4000	4000
3	Width (mm)	850-1500	850-1500	850-1500	850-1500
4	Grooving speed(m/min)	15-60	15-60	15-60	15-60
5	Grooving Area (mm)	2.25	2.25	2.25	2.25
6	Plate speed (m/min)	5-0.5	5-0.5	5-0.5	5-0.5
7	Y axle Minimum unit	0.01	0.01	0.01	0.01
8	Y axle Minimum positioning accuracy	0.05	0.05	0.05	0.05
9	Z axle Minimum unit	0.01	0.01	0.01	0.01
10	Z axle Minimum positioning accuracy	0.02	0.02	0.02	0.02
11	X axle Motor power(kw)	W=4	W=4	W=4	W=4
12	Y axle Motor power(kw)	W=1	W=1	W=1	W=1
13	Z axle Motor power(kw)	W=0.4	W=0.4	W=0.4	W=0.4
14	Air pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
15	Dimension (L*W*H)	5000*2200*2100	5800*2200*2100	6800*2200*2100	7800*2200*2100
