Professional PVC Ceiling Panel Making Machine
- 60 Set / Sets per Month
- Shanghai Dalian Ningbo or negotiated.
- T/T L/C D/P D/A Credit Card
Product Details
| Place of Origin: | Hubei, China | Brand Name: | TianRui | Model Number: | TR333 |
| Shaping Mode: | Plastic Extrusion Mould | Product Material: | Steel | Product: | Household Product |
Product Description

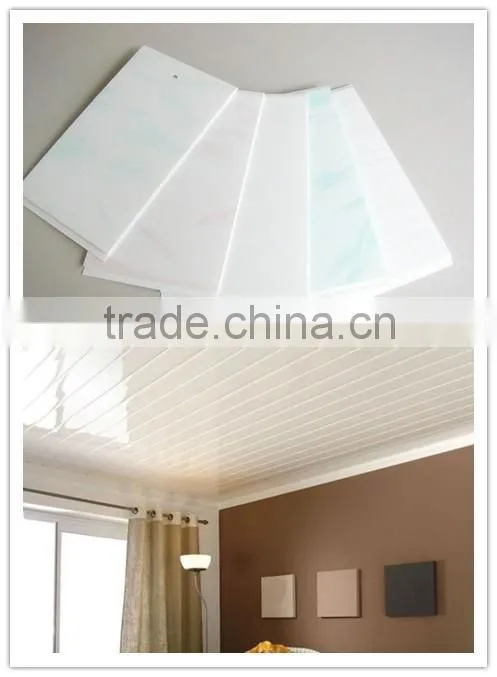

Professional PVC Ceiling Panel Making Machine
Name | Professional PVC Ceiling Making Machine |
Size | Various types |
Mould material | 3Cr17, 3Cr17MoNiV,or as per your request |
Mould cavity | 1 or multi-cavity |
Mould composition | Die head, aluminum heating bands, calibrators and water tank |
Feature | Selectable co-extrusion of different raw materials: PVC, PP, PE, ABS Selectable technology: low-foaming, high-foaming & substance co-extrusion Stable discharging, high efficiency, superior quality |
Test | Mould will be tested to get the satisfied sample before delivery |
Service | Provide complete set of production process and technology transfer service |
Lead time | 30 days |
Package | Wooden case for exporting, each mould will be cleaned before packaging. |
Hubei TianRui Professional PVC Ceiling Panel Making Machine Characters:
The extrusion die head design:
Using the removable positioning device,making it easier to disassemble
Precise material flowing control,stable extrusion.
The hidden heating design has increased the brightness of the product surface
The special balance of the presssure holes has lowered the rejection rate
The extrusion calibrator design:
The automatically adjusting positioning key gives it precise size
The tapered design of calibration sleeve has increased the production speed greatly.
The inlet end is independent and vaccum and shapes well.
The camber adjusting device ensures that the line is straight
The extrusion cooling design:
Double vaccum system promotes the molding
The combination of eddy current and spray makes it cool fast
The self-ajusting water tank panels are easy to adjust
The stainless steel frame type system can prevent damages
The special influent distribution gives it a cooling balance
Application of the Products
Hubei TianRui Plastic Mould Co.,Ltd is one of the earliest manufacturers and developers that specialize in plastic extrusion mould. The company has gathered a ateam of the earliest mould manufacturing elites who are professional in mould designing,manufacturingand testing and rich in experience.With strong technical strength,high-quality products,resonable price,and perfect after-sales service,we would like to cooperate with you and to creat a better future together.May we become your reliable partner through our remitting effort.
If you need any further information, please be free to contact me, we will be very happy to receive your kind message.
Cherry Sindy
Hubei TianRui Plastic Mould Co.,Ltd
Tel: 86-0714-3089139
Fax: 86-0714-3089399
MSN: Chenmo123@
Skype:tr1369999
QQ:921653668
