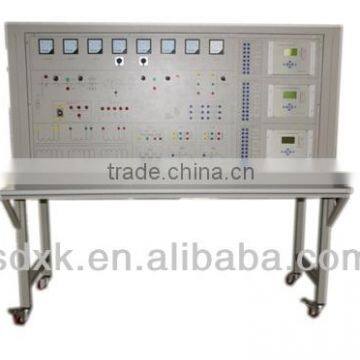

Electrical Teaching Board, Electrical Power System Integrated Automation Training System, Educational Equipment

Specifications

It combines with three experimental bench.
Suitable for various electrical power system training in universities, colledges

    Electrical Teaching Board, Electrical Power System Integrated Automation Training System, Educational Equipment



1. Product overview:

XK - DLS power system integrated automation training system is an integrated system included of the power of automation, power dispatching automation and distribution automation. It consists of XK - DLS01 power training platform, XK - DLS02 substation training platform, XK - DLS03 distribution training platform, and equipped with LJ9000 background monitoring software for remote scheduling, constitute a relatively complete model of the power system.



XK - DLS01: complete the quasi-synchronizing grid-connect of generators, single machine with load experiment

XK-DLSO2: complete transformer properties, transformer relay protection experiment

XK-DLS03: complete the circuit pour brake operation, reactive power compensation, and relay protection experiments

LJ9000 background monitoring system can complete the whole simulation monitoring operation of power system, users can have detailed understanding of the lines operation condition in the background system and then to operation.

2.System composition:
2.1XK-LDS01 Power training platform
Power training platform is mainly composed of generator unit, infinity system, period unit, fault simulation unit, generator protection unit, instrument measurement, load, etc

2.2.XK-DLS02 Substation training platform
Substation training platform is mainly composed of lines unit, transformer unit ,secondary circuit unit, fault simulation unit, transformer protection unit, instrument measurement, load, etc.

2.3.XK-DLS03 Distribution training platform
Power distribution units platform is mainly composed of lines unit, fault simulation unit, reactive power compensation unit, secondary loop, relay protection units, etc..

2.4 LJ9000 Background monitoring system
Background monitoring system is mainly composed of communication management machine, PC and background monitoring software and so on, can monitor and control line equipment running status.
