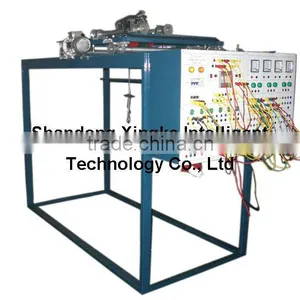

Overhead Crane Simulator Trainer, with PLC Control

1.Product overview:

   XK-OCT1 overhead crane training device consults function of actual 20/5T type overhead travelling crane and is designed by narrowed fixed size proportion.

Mechanical part: consists of cart running mechanism, trolley running mechanism and hoisting mechanism. It contains: motor, electric hoist, reducer, wheel gear, transmission shaft and cartwheel, etc.

Metal structure: mainly consists of bridge(girder, end girder, cart track, trolley track), large car frame, trolley frame and control box. Electrical structure: consists of electrical equipment and electrical circuit.

It contains: power plant of overhead crane and control system of starting, speed regulation, reversing and stopping of each mechanism...

Features:

The operation to the electrical part of the device ,can implement various kinds of movement control of 20/5T type overhead travelling crane, It contains: lifting hook’s hoisting and descending, left and right movement of cart, fore and aft movement of trolley, electrical limit protection of cart movement, electrical limit protection of trolley movement ,ultimate limit protection of cart movement, ultimate limit protection of trolley movement and ultimate limit protection of lifting hook’s hoisting.

The device is equipped with AB PLC, can be used for carrying out the automatic operation control of the crane.

2. Main technical parameters:

  2.1.Power supply: three-phase four-wire(380V±10%50Hz)

  2.2Working environment:

        Temperature:-10°C~+40°C,relatively humidity<85%(25°C),height<4000m

  2.3.Device volume:<1000VA

  2.4.leakage protection action current:≤30mA;Leakage protection action time:≤0.1s

  2.5.Size of control pannel:1000×600mm

  2.6.Devie dimension:2400×1000×2000mm

  2.7.Cart route:1320mm

  2.8.Trolley route:432mm

  2.9.Three-phase asynchronous motor(drive cart):voltage:380v,power:180w,rotate speed:1400r/m, reduction ration:1:60

  2.10.Electric hoist:voltage:220v,rated lifting weight:220KG,length of rope:12m

Power:510w

  2.11. Three-phase deceleration motor(drive trolley):voltage:380v,power:120w

   rotate speed:1500r/m, reduction ration:1:300...

3. Training project:

  3.1. Familiar with the structure and principle of common low-voltage instruments;

  3.2. Understand the actual action of the overhead crane by watching the overhead crane’s movement;

  3.3. Connecting training of three-phase motor’s positive and negative rotary running control;

  3.4. Connecting training of single-phase motor’s(electric hoist) positive and negative rotary running control;

  3.5. Circuit designing and connecting training of electrical control self-locking and inter-locking;

  3.6. AB PLC programming training...
