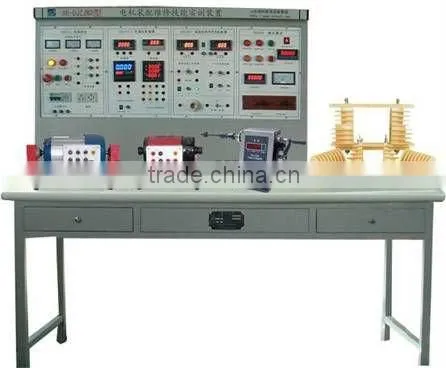

Teaching aid equipment,Electrical training kit,Motors assembly maintenance calibration training device

Name: Teaching aid equipment,Electrical training kit,Motors assembly maintenance calibration training device
Brand: XINGKE
Availability: InStock

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:

Shandong, China

Brand Name:

XINGKE

Model Number:

XK-DJZJW2

Packaging Details

wooden package or according to your requirement

Product Description

Specifications

1.electrical training kit
2.motor transformer maintenance kit
3.teaching aid equipment

Teaching aid equipment,Electrical training kit,Motors assembly maintenance calibration training device

1.product structure:

adopt modular desktop structure, hang fixed, facilitates the implementation of motor maintenance training.

2.main parameters:

Ø Size:1600 mm x 700 mm x 1500 mm

Ø The power supply: the three-phase AC380V, power < 1500 VA.

3.main components:

the training platform, power control unit, ac motor test unit, dc motor test unit, motor disassembling the

hand tools, electronic counting coiling machine, omnipotent wire model, not paint single-phase transformer, not paint of rotor cage three-phase asynchronous motor, not paint single-phase asynchronous motor, dc machines etc.

4.main functions:

the system can fully realize the small ac motors, dc motors and transformer winding around the whole

process; Fully realized a small motor and transformer conventional electrical parameters measurement

of the whole process; Can be familiar with all kinds of instruments of use and the matters needing

attention and commonly used motor transformer testing lines, etc.

5.annex:

experimental jump line, commonly used tools, software discs, the product specification.

6. Training Projects

1. Data recording and calculating of transformer before dismantling.

2. Dismantling of transformer

3. Winding of transformer

4. Assembling of transformer

5. Insulating resistance measurement

6. AC withstand voltage test of transformer

7. DC resistance measurement

8. Transformer same-polarity distinguishing

9. Transformer no-load voltage ratio testing

10. Transformer no-load running

11. Transformer short-current

12. Data recording and calculating of single-phase capacitor operation motor before dismantling.

13. Dismantling of single-phase asynchronous motor

14. Winding of single-phase motor

15. Assembling of single-phase transformer

16. Insulation resistance testing

17. AC withstand voltage of single-phase asynchronous motor

18. DC resistance testing

19. Single-phase asynchronous motor with no load.

20. Short current of single-phase asynchronous motor

21. Repairing and testing of 1.1kW three-phase squirrel cage asynchronous motor

22. Data recording and calculating of three-phase squirrel cage asynchronous motor before dismantling.

23. Dismantling of three-phase squirrel cage asynchronous motor

24. Winding of three-phase squirrel cage asynchronous motor

25. Assembling of three-phase squirrel cage asynchronous motor

26. Insulation resistance testing

27. AC withstand voltage of three-phase squirrel cage asynchronous motor

28. DC resistance testing

29. Winding head-end and tail-end distinguishing of three-phase squirrel cage asynchronous motor

30. Three-phase squirrel cage asynchronous motor with no load

31. Short current of three-phase squirrel cage asynchronous motor

32. Overspeed experiment of three-phase squirrel cage asynchronous motor

33. Separated excitation DC motor repairing and testing

34. Data recording and rewinding of separated excitation DC motor before dismantling.

35. Calculating and confirming of data

36. Winding dismantling of separated excitation DC motor

37. Coil coiling of separated excitation DC motor

38. Inserting line and assembling of separated excitation DC motor

39. Insulation resistance of separated excitation DC motor

40. Position confirming of electric brush centre line of separated excitation DC motor

41. DC resistance measurement in cold state of separated excitation DC motor

42. AC withstand voltage test of separated excitation DC motor

43. No load test of separated excitation DC motor

44. Overspeed test of separated excitation DC motor

45. Tachometer applying

46. Torque meter applying

47. Magnetic powder braker applying.

48. Intelligent single-phase integrated electric parameter measurement instrument applying

49. Intelligent three-phase integrated electric parameter measurement instrument applying
