slurry pump capacity 10-5000m3/h
- 500 Set / Sets per Month
- Tianjin and other ports in China
- T/T Credit Card PayPal
Product Details
Place of Origin: | China | Brand Name: | METSLURRY | Model Number: | 25I-MS,1.5/1B-AH |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Other, Transfer Slurry |
Power: | Electric | Standard or Nonstandard: | Nonstandard | Fuel: | Other, Power |
Pressure: | High Pressure | Application: | Other, Mining Mill Discharge, Delivery of Tailing, Ash Removal in Power Plant |
Product Description
slurry pump capacity 10-5000m3/h
Production Description
MS(R) hard metal / rubber heavy duty slurry pumps are designed for the most difficult pumping applications for highly abrasive, high density or erosive slurries.
Extra thick sections at wear point and perfect impeller structure ensures satisfactory performance with long life, and needs minimum maintenance requirements.
Rubber lined pump expand applications to chemical products handing, several different rubber options are avaliable to meet different application needs.
Especially fit in aggressive applications like mill discharge, tailing transportation.
Parameters of 25I-MS pump, 1.5/1B-AH
Shijiazhuang Mets Machinery Co.,Ltd |
Flow (m³/h) | 10.8-25.2 |
Head (m) | 7-52 |
Speed (r/min) | 1400-3400 |
Max Motor Power ( Kw) | 15 |
Material of End Wet Part | High Chrome Alloy |
NPSH (m) | 2-4 |
Certification | ISO:9001, CE2001, IQNET etc |

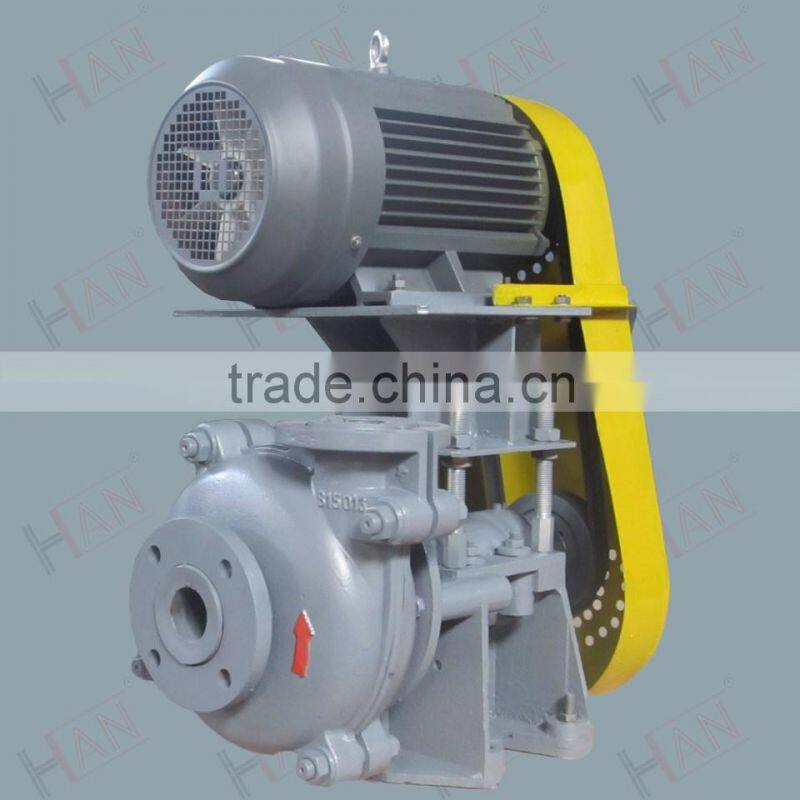

Picture of 25I-MS pump,1.5/1B-AH
Pump Structures
Performance Curve with Clear Water
Performance of MS Pumps- All of the models we can supply

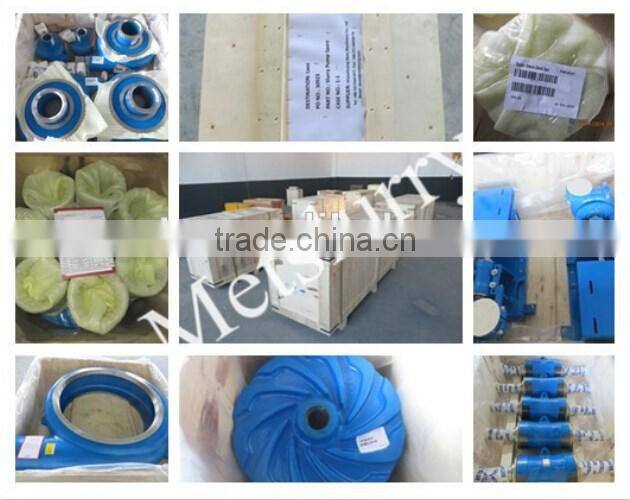

Standard seaworthy bubble + anti-rust plastique + wooden case package,
Surface anti-corrosion treatment for Horizontal multistage centrifugal slurry pump rubber parts
1.Before selling:Kindly tell us your requirements,We will fully understand.We can help you choose pumps solutions including:pumps model,pumps material and so on.
2.After selling:We provide all life service for our products.Including free techanical service,maintenance and installation service.

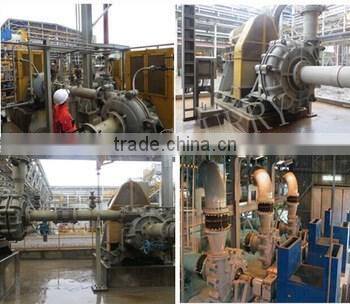

Our pumps application
Customers Visiting&welcome to our company to have a visit!
1.Your minium quantity
For pump:1 whole set pump with motor or bareshaft pump only
For Spare parts:1 piece(such as impeller,throatbush,volute liner,frame plant liner,cover plat line)
2.What I need to know if I want to enquiry
For pumps:Pump model,liner material,seal arrangement,drive type,If with motor,the motor parameters,such as Kw,IP,Hz,Votage.(If no models,please tell me your slurry parameters,installation condition,mine environment.)
For spare parts:Parts number,material,quantitiy.
More spare parts for your choice
