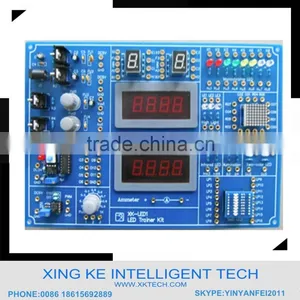

Light Emitting Diode Experiment Board

carton

1. Product Introduction:

LED1 used for application of various LED, it consists of adjustable voltage source, adjustable current source, adjustable PWM output circuit, digital voltmeter, digital ammeter and kinds of LED lamps.

2. Training panel main parameters:

Size: 280 (L) x 200 (W) x 60mm (H); Weight: 1.5Kg

The power supply: single-phase AC220V±10%, 50Hz, power≤15W.

3. Signal Source Technology Parameter:

3.1 DC 5V voltage source, capacity: 0.5 A

3.2 Adjustable DC 1.25V~10V voltage source, capacity: 1 A

3.3 Adjustable 0.1mA~20mA current supply

4. Accessory for experiment

4.1 Experiment wires: 30 pieces

4.2 Power adapter: 1set

5. Experiment Project

5.1 Using potentiometer to adjust the LED brightness

5.2 Normal brightness LED components working voltage and working current test experiment

5.3 High brightness LED components working voltage and working current test experiment

5.4 White lighting type LED components working voltage and current testing experiment

5.5 Common cathode and common anode digital tube working voltage and current testing experiment

5.6 8*8 LED dot matrix block working voltage and current testing experiment

5.7 Infrared emission and infrared receiving LED components working voltage and current testing experiment

5.8 Patch LED components working voltage and current testing experiment

5.9 Double color LED components working voltage and current testing experiment

5.10 LED series connection experiments

5.11 LED parallel connection experiments

5.12 Flow water experiment

5.13 PWM circuit control LED brightness experiment

XINGKE Products Specifications

The First-Class Vocational Teaching Equipment Supplier/Manufacturer in People’s Republic of China.
1. Good quality

2. Reasonable design and original layout, be suitable for teaching and training.
2. Reasonable price
3. OEM Service

XINGKE Mainly Products Range:

1. The advantage of our Product:

1).We have manufactured for over 10 years.

We are the leading manufacturer of Educational Equipment Industry in China. We have a large group of material suppliers. They are stable and very cooperated due to our big factory strength.

2).The stable output was upon the stable quality. We will schedule the annual orders plan for you upon the stable annual output.

3).Our tech and service team was very powerful and professional.

We always can meet your requirements upon our tech and service. The large group of tech and service team will meet you around 24 hours. And we will develop the new products upon your potential orders.

4).We have our own brand “XINGKE”

5) We supply quality equipment at economical prices.

2. Our Factory:

XINGKE Industry Park located in the Middle Section of IndustryⅡRoad, Zhangqiu, Jinan, Shandong, China. Our factory covered with 1700 square meter.

3. Packaging And Delivery Details:

Packaging Detail: 1. Packaging for training kit: plastic package + carton + plywood pallets

2. Packaging for training equipment: plastic package + plywood pallet

3. As the clients' requirement, print your logo, etc.

Delivery Detail: 20 to 40 days after Received advanced payment (depend on the total amount)

4. After-Service And Training for Foreign User

1. For our exported equipments, the Warranty is one year, within one year, if there is any problem for spare parts(except damage by man-made) We can supply and replacement free of charge. And if exceed one year, we also supply the service, and process to instruct maintain, and instead the parts charge a certain fee.

2. We dispatch our professional and experienced engineer to install equipments and make training for the end users.

5. Reputation:

Our products earn a good reputation among our customers. We welcome customers, business associations and friends from all of the world to contact with us and seek cooperation for mutual benefits.

NOTE: All items are directly from factory, we would allow you a quantity discount, so please contact with me when you plan an order, we will answer back ASAP.
