Product Details
Place of Origin: | Shandong, China | Brand Name: | XINGKE | Model Number: | XK-ESPX |
Packaging Details
wooden package or according to your requirement
Product Description
Specifications
1.training device, educational equipment2.electrical sensor training equipment

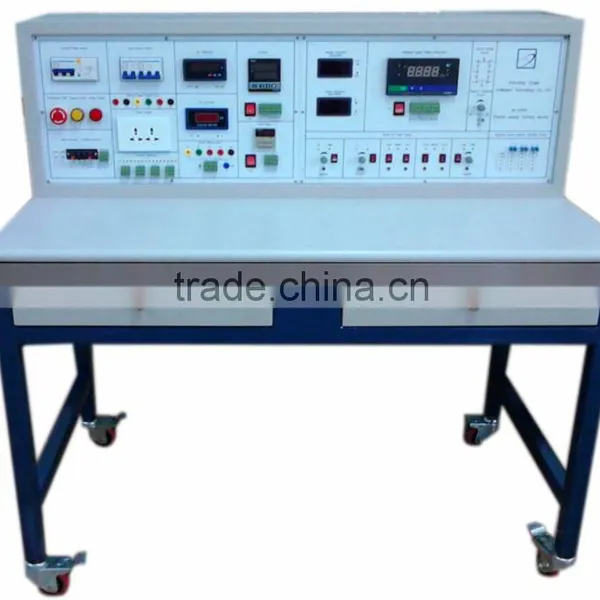

Educational equipment,Sensor and Instrument Training Device
1. Product Overview:
This type of device adopts AC380V/50Hz, three phase five wires connecting, has standard signal source.
The equipment is also provided with the typical detecting instrumentation. Power main switch on the table
adopts three-pole breaker with leakage protection, also has power source indication,power supply indication, and adopts
frame ground protection,emergency button,insulation rubber pad and other safety precautions.
2. Technical Parameter
2.1 Power Supply:
1) Three Phase Five Wire AC Power
2) Three phase supply main switch with leakage protection In ≤30mA,Time≤0.1s
3) Power source indication,Power supply indication
4) Single-phase source output, with automatic air-break switch
5) Emergency Button
6) Ground Protection
7) Leakage Protection
8) Overcurrent Protection
2.2 Experiment Power Supply
1) ±5V,±12V,+30V DC adjustable voltage
2) 0~4~20mA current source (Load resistance≤300Ω)
3) Each power source has independent control switch and indicating light.
3. Product Structure
Ø Strong current power supply and control area,output area.
Ø Strong current wiring area.
Ø Multi-wiring transit interface.
Ø DC display instrument area: DC Ammeter,DC voltmeter
Ø Practice instrument area: Each of Thermal resistance temperature digital display meter,Thermocouple
temperature digital display meter,Counter,Time relay.
Ø Signal source area: ±5V,±12V,+30V DC adjustable voltage,5V adjustable voltage,0~4~20mA current
source(Load resistance ≤300Ω),each voltage source has independent control switch and indicating light.
Ø Bridge and balance adjustment circuit.
4,sensor
4.1. Thermal resistance PT100
4.2. Thermocouple
4.3. Pressure Transmitter
4.4. Flow Transmitter

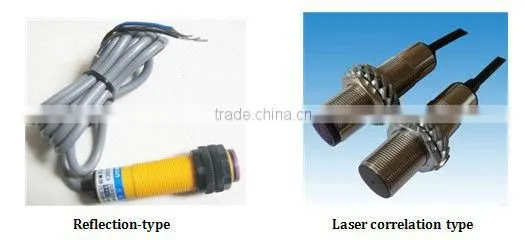

4.5. Photoelectric Switch

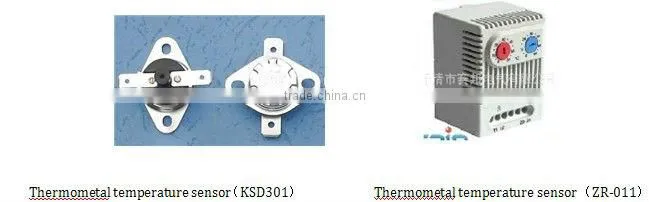

4.6. Thermometal temperature sensor
4.7. Float switch
4.8. Plastic package reed switch
4.9. Gate Magnet Switch
4.10. Linear displacement sensor
4.11. Fiber optic sensor (distinguish black and white color)
4.12. Ultrasonic ranging module
