Educational training equipment,Experiment Apparatus, XK-HPT-C Heating Pump System Training Equipment
- 300 Set / Sets per Month
- Qingdao
- Credit Card
- XK-GCR-C Refrigeration System Training Equipment, Educational training equipment
- Educational training equipment, Experiment Apparatus, XK-ICM-A Ice Machine Training Equipment
- Educational training equipment,Experiment Apparatus, XK-IRS-1 Two-stage cascade refrigeration training equipment
- Educational training equipment,Experiment Apparatus,Industrial refrigeration Training Systems
- Educational Equipment, XK-KT02 Hot Pump Split Air Condition Training Device
- Training Equipment, XK-KT01 Air Conditioning Installation Debugging Training Kits
Product Details
Place of Origin: | Shandong, China | Brand Name: | XingKe | Model Number: | XK-HPT-C |
Packaging Details
plywood case
Product Description

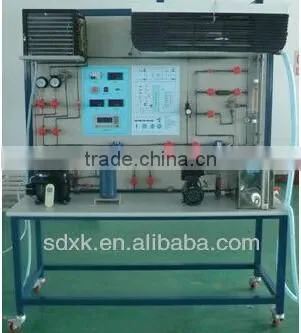

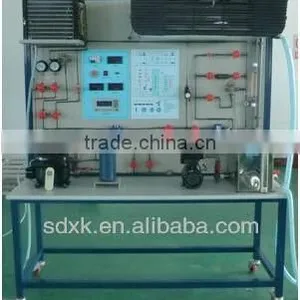

Educational training equipment,Experiment Apparatus,
Air-Condition of Heat Pumps Training Equipment
1,Equipment Feature:
Equipment demonstrates the basic knowledge of remote control heating pump refrigeration,equipment shows one kind of typical refrigeration,heating loop and water circulation control system, training students master professional theory knowledge of refrigeration & heating technology.
Strengthening the student integration vocational capacity of refrigeration & heating pipeline system design,the working condition debugging,electric control principle and working principle. Equipment has intelligent fault assessment and data acquisition function, it can set & solve faults on intelligent monitor, and show the collected temperature data.
Equipment consists of switch,instrument control display module,refrigeration system principle diagram module,refrigeration & heating system that composed of real components,water cycle system. Refrigeration and heating system is equipped with four-way reversing valve,pressure protector, one-way valve,two filter drier,hand valve switch,liquid view mirror, etc.; Water cycle system including water pump,water meter,fan coil etc.
Electrical control system composed of leakage protector,emergency stop switch,digital display AC voltmeter and AC ammeter,power meter etc. also equipped with intelligent displayer,faults assessment module,data acquisition module that used for 10 quantity of faults assessment,8-way data acquisition and so on. Training equipment installs four universal wheels, convenient for moving.
2,Technical Parameter:
1) The power supply: single-phase three-wire AC 220 V ± 10% 50 Hz
2) Installed capacity: <1kVA
3) Overall size: 1600*660*1890mm
4) Net weight: Appr. 100KG
5) Refrigerant type: R22
6) Power main switch with earth leakage protection
7) With power indication,power supply indication,voltage,current indication and emergency stop button
3,Attachment of equipment (non-standard configuration)
3.1 Vacuum pump: 1set
3.2 Double table valve fluorine filling meter set: 1set
3.3 Metric / British system conversion connector: 2sets
3.4 Digital display multimeter: 1pcs
4,Training Project
1) Understanding of the main parts of refrigeration & heating system
2) Understand the principles and functions of main parts of system
3) Understand the working principle of system refrigeration & heating
4) Know control theory of circuit control system
5) Understanding working principle of circuit control system
6) Refrigeration & heating system leakage detection practice operation
7) Refrigeration & heating system pressure maintaining training
8) Refrigeration & heating system vacuumize practice operation
9) Filling refrigerant for refrigeration & heating system practice operation
10) Understand the effect that system under kinds of throttle type
11) Understand the application of data acquisition system
12) Master the data information of system main parts during working
13) Understand the application of fault examination system
14) Understanding judgment method of refrigeration & heating system common fault
15) Faults practice training of refrigeration & heating circuit control system
16) Faults practice training of refrigeration & heating pipeline system
