Industrial open frame type 350kva diesel generator powered with Doosan engine
Fuzhou World Power Generation Co.,Ltd (W.D Power) is a generator producer of Generator Sets with 12years factory manufacture experience. The power range of W.D Power generator set is from 5KVA to 3,000KVA. All engines equipped with world famous brands mentioned, i.e. CCEC/DCEC(U.S.),DEUTZ (Germany), MTU(Germany)& JV MITSUBISHI etc. As well as famous brand alternator STAMFORD, LEROY SOMER, MARATHON etc. All our products have been certified by ISO9001 Quality Management, ISO14001:2004, CE, BV, EPA, SONCAP, and SGS certificate etc.
50Hz-Three Phase-Power Factor 0.8 | |||
Rating | Prime Power | Standby Power | Rated Current |
Voltage (V) | KVA/KW | KVA/KW | (Amp) |
220V/380V | 350/280 | 385/308 | 531.8 |
230V/400V | 350/280 | 385/308 | 505.2 |
240V/415V | 350/280 | 385/308 | 487.0 |
Engine Specification General Performance | |
Engine Model: | P158LE-1 |
Engine Type: | 4 cycle, V-type, 8-cylinder |
Engine Speed: | 1500 r.p.m |
Base Output Power: | 327kW/438Hp |
Standby Power: | 377kw/505Hp |
Governor Type: | Electronic |
Air Intake Way: | Turbocharged & Intercooled |
Displacement: | 14L |
Cylinder Bore * Stroke: | 128mm × 142mm |
Compression Ratio: | 15:1 |
Alternator Specification General Performance | |
Engine Model: | Stamford HCI444E |
Phase | 3 Phase |
Power Factor | 0.8 |
Drip Proof | IP 23 |
Insulation class | H |
Voltage regulation | ± 0,5 % |
Altitude | ≤ 1000 m |
Over speed | 2250 min -1 |
Scope of supply | |
Standard | Optional |
High efficient water cooled diesel engine | Automatic Transfer Switch (A.T.S) |
Brushless alternators (Class H, with AVR.) | Water - Fuel separator |
Heavy duty rubber anti-vibration mountings | Water heater for severe cold weather |
12/24V starter batteries and connecting cables | Lub-oil heater for severe cold weather |
Industrial silencer | Low coolant level sensor |
Auto start Digital Control Panel | Dual wall base fuel tank |
Radiator with cap and drain point | Fuel level sensor |
Fully guarded engine driven fan | ABB brands Breakers |
Circuit Breaker | Separated standing fuel tank |
Soundproof canopy for silent genset | Alternator Space Heater |
Oil filter - Diesel filter - Air filter | DSE6020,DSE7320,ComAp AMF25 controller |
Excellent cooling Radiator | Customized 24H,48H base fuel tank |

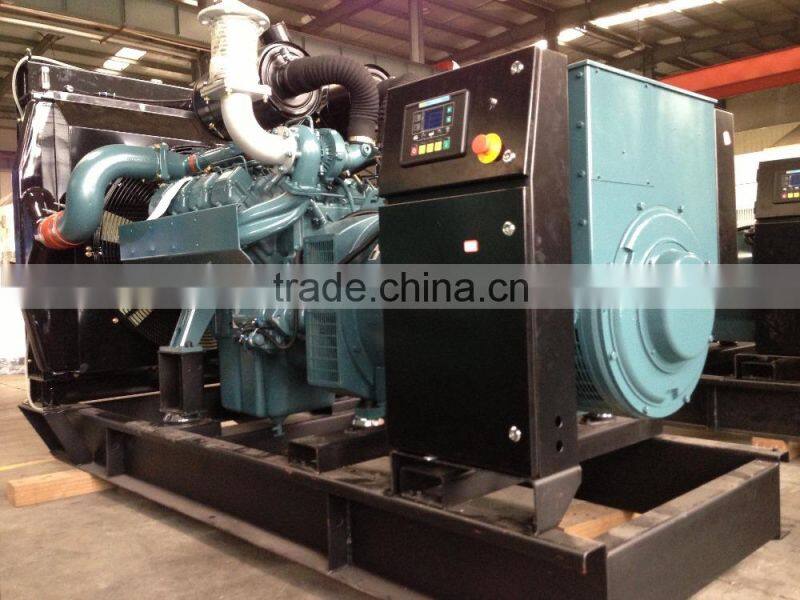

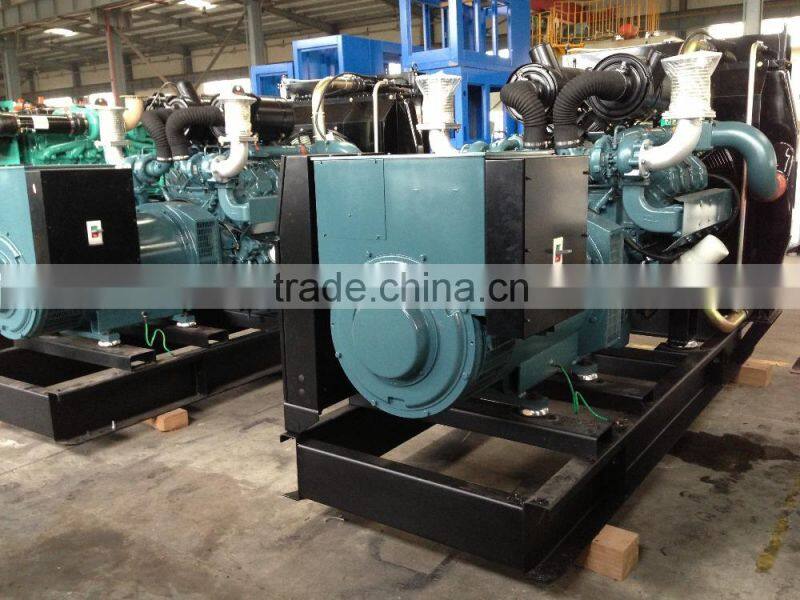

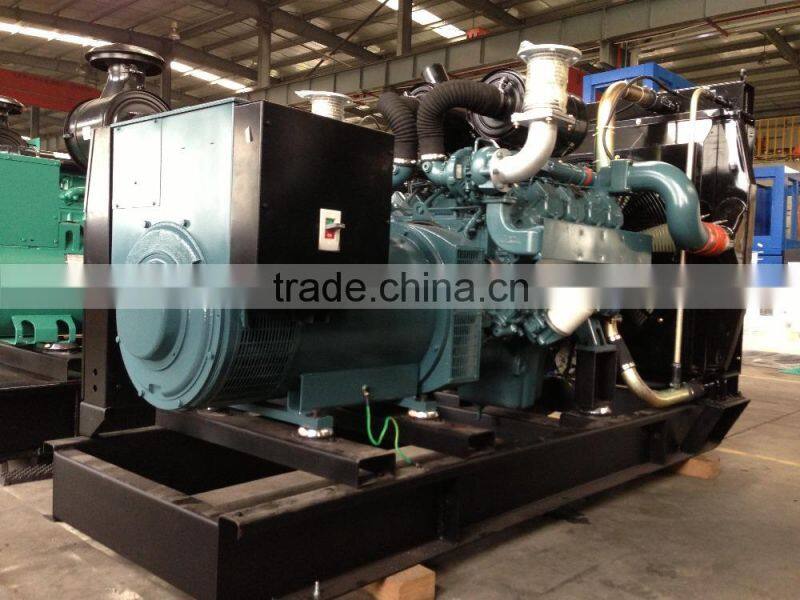

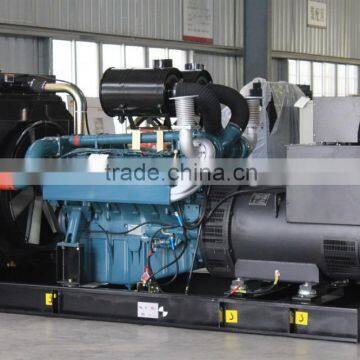

W.D Power Generator Pictures in details |
|
W.D Power Factory& Production Flow |
|
W.D Power Testing System |
Before deliver gensets to you each generator set we will test the quality for 1.5 hour with below performance: --Different loading performance (0%,25%,50%,75%,100%) --Heat run test --Insulation resistance test --starting test --tests of all alarm and timing relays |
W.D Power Package&Delivery |
Plastic Poly-ether (Export Standard),Wooden case,Plywood case. |
W.D Power Warranty |
12months or 1000hr (subject to the earlier mature term) |
W.D Power Service |
1. Production capability 300Set/month and Quickly delivery time 2. Competitive price: Perkins,DCEC/CCEC,Deutz,Stamford,Leroysomer OEM available 3. Full one hour factory quality testing with various loading at 25%,50%,75%,100%,110% 4. 1000hours or 12months warranty 5. Spare parts support and W.D Power technical support also technical training served. 6. R&D team support and sales team 24hours on-line service |
Manual and catalog &Certificates |
Full set of Engine/Atlernator/Generator operation&maintenance manuals are provide with each generator.
|
2014.6-2015.3 Some W.D Power Complete Power Solution Project Reference |
Case NO.1-1500kva standby UK Engine generator sets PROJECT SITE:South Africa PRODUCT:4 units 1500kva Container Generator APPLICATION:Main power supply for Power Station
Case NO.2-575kva Open type Generator PROJECT SITE:Australia PRODUCT:1 units 575kva diesel generator sets, ComAp AMF 25,Stamford alternator with PMG, ABB circuit breaker. APPLICATION: Power supply to black start purpose
Case NO.3-1000kva Containerized Generator PROJECT SITE:Atlantic ocean area PRODUCT:2 units 1000kVA diesel generator sets,ComAp IG-NT Controller,ABB circuit breaker. APPLICATION:Main power supply for hotel
Case NO.4-750kVA Customized Containerized Generator PROJECT SITE:Maldives PRODUCT:1 units 750kVA Customized Containerized Generator Set ,Woodward controller, ABB circuit breaker. APPLICATION:Standby power supply for hotel
Case NO.5-500KVA Genuine Customized Canopy Generator PROJECT SITE:Singapore PRODUCT:1 units 500kVA Customized Canopy Generator APPLICATION:Industry
|
