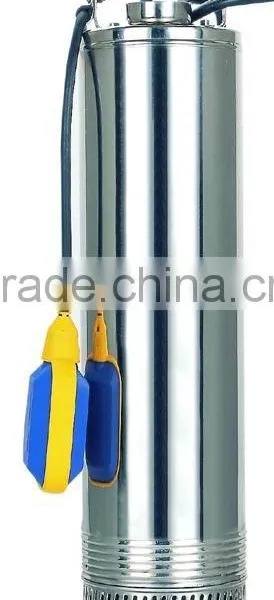

Vertical centrifugal multistage pump

FOB Price

USD $123 - $200 / Set

100 Sets(Min.Order)

Supply Ability 5000 Unit / Units per Month
Port Ningbo Port or Shanghai Port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Chaoqian
Model Number	QDN1.5-40-0.75KW	Theory	Centrifugal Pump
Structure	Multistage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other	Pressure	High Pressure
Application	Submersible

Product Description

This is the newest product we developed. Single phase or three phase of power source application for your option. The impeller design of multistage make it high pressure to achieve full delivery lift. The product is widely used in high rising drinking water supply and deep well water source supply etc. The series has passed CE certificate to access to many international markets successfully. Except this model we can offer many other ones for your selection.

For your accurate determination of the application, I've provided below detailed tech data sheet for your reference!

Should any of the models are of interest to you, please feel free to contact me at +86 15167528671!

Technical Data
Model	Head m	Capacity m3/h	Voltage,Frequency V,Hz	Output Power KW/HP	Discharge Size mm	Size mm	Weight KG
QDN1.5-30-0.55KW QN1.5-30-0.55KW	30 Max:40	1.5 Max:5	220V/50Hz,115V/60Hz 380V/50Hz,127V/60Hz	0.55KW (0.75HP)	50	220x220x550	12.5
QDN1.5-40-0.75KW QN1.5-40-0.75KW	40 Max:53	1.5 Max:5	220V/50Hz,115V/60Hz 380V/50Hz,127V/60Hz	0.75KW (1HP)	50	220x220x580	15
QDN1.5-60-1.1KW QN1.5-60-1.1KW	60 Max:75	1.5 Max:5	220V/50Hz,115V/60Hz 380V/50Hz,127V/60Hz	1.1KW (1.5HP)	50	220x220x640	17
QDN1.5-80-1.5KW QN1.5-80-1.5KW	80 Max:100	1.5 Max:5	220V/50Hz,115V/60Hz 380V/50Hz,127V/60Hz	1.5KW (2HP)	50	220x220x715	19
