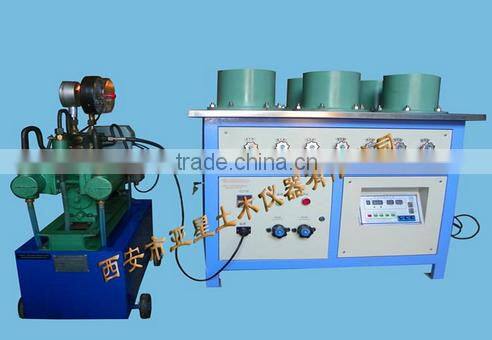

E022-A RCC high pressure permeability tester
Use: testing Concrete water permeability
Pressure chamber unit with 0-1.5 bar gauge & built-in micrometer gauge & valves.
Wrench for pressure lid.
Extra 0-6.0 bar gauge.
Water filling cup.
Adjustable clamping pliers.
Set of anchoring tools with drift & hammer.
Wrenches: 14 and 17 mm.
Sealant tape.
Bottles with boiled water, 3 bottles.
Gaskets, 10 mm thick, 4 pcs.
Gaskets, 15 mm thick, 4 pcs.
Operating Manual.
Hard Carrying Case
specification:
Technical Parameters
* Power supply voltage: 380V ± 10V 50Hz
* Low Voltage Maximum allowable working pressure: 40kgf / cm2 set arbitrarily adjusted constant pressure
* High pressure maximum allowable working pressure: 160kgf / cm2 set arbitrarily adjusted constant pressure
* Work: automatic compression
* A number of specimens can be used: 6
* Tryout geometry: catchy inner diameter: 174mm outlet diameter: 185mm height: 165mm
* Piston pump parameters: Plunger diameter: 10mm Stroke: 10mm reciprocating frequency: 154 beats / min flow: 0.11 l / min.
* Permeability tester Dimensions: 960 × 650 × 975mm
* High voltage electric test pump Dimensions: 950 × 500 × 1000mm
Service:
1. Warranty 1 year of replacement and return.
2, Providing factory visit and study, technical training
3, 24-hour technical support by e-mail or phone
4, Providing laboratory construction program design guidelines
5, Providing product design and OEM service
Packing and Shipping:
Trade Show:
Certification:
