sediment filter cartridge (factory)
- 10000 Piece / Pieces per Month
- wuhu shanghai ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Anhui, China | Brand Name | chiro-sediment filter cartridge | |
| Model Number | sediment filter cartridge-10 |
Product Description

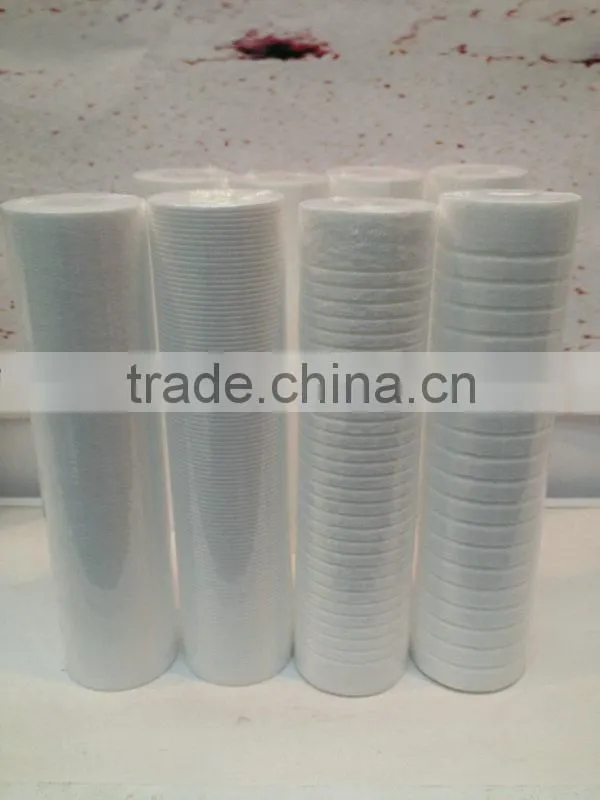

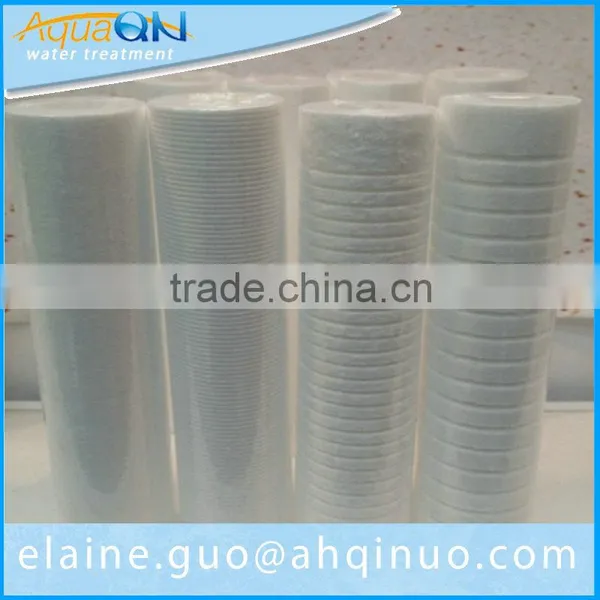

sediment filter cartridge
10" PP sediment water filter cartridge are made of 100% polypropylene without any glue particals.
It has depth construction with three layers from inner to outer,depth filtration inside,coarse fiber in the middle,and fine fiber in the surface.The cartridge has high capacity of dirt,low pressure drop,high flow rate,good chemical resistance.It can reduce the suspended substance,particals and rust in the water effectively.
Dimension | |||
PP-10 | PP-20 | PP-10B | PP-20B |
H: 10inch | H: 20inch | H: 10inch | H: 20inch |
ID:28mm | ID:28mm | ID:28mm | ID:28mm |
OD:63mm | OD:63mm | OD:114mm | OD:114mm |
Filter media:Polypropylene
Filter rate:1um,5um,10um,20um,30um,50um.75um.100um
Length:5",10",20",30",40",or any other size customer need.
Outer/Inner diameter:2.5‘,4.5",28mm,or any other size customer need
Max operating temperature:52C
Properties | ||||||
Filtration Accuracy |
Start Pressure(kPa) |
Filter out particles |
Air flow rate (m3/h) |
DOP(0.3μm) | ||
A,B,C | P | A,B,C | P | |||
1 | 10.5 | 18.2 | 0.5 | 11.9 | 8.33 | 99.9999 |
2 | 8.4 | 13.3 | 1 | 13.6 | 9.01 | 99.9999 |
5 | 5.6 | 5.6 | 2.5 | 22.1 | 22.1 | 99.99 |
7 | 3.5 | 3.5 | 5 | 34 | 34 | 99.99 |
10 | 2.1 | 2.1 | 7.5 | 54.4 | 54.4 | 99.2 |
15 | 1.05 | 1.05 | 10 | 83.3 | 83.3 | 88 |
20 | 0.7 | 0.7 | 12 | 158.1 | 158.1 | 84.8 |
40 | 0.35 | 0.35 | 20 | 408 | 408 | 48.3 |
70 | <0.35 | <0.35 | 45 | 964 | 964 | 34 |
90 | <0.35 | <0.35 | 60 | 1428 | 1428 | 25 |
box packing
